â–¶ Suspension Drop / Lift Rates
Part #: hrsRSS29170 - RSS Coil Over
Comment: Lowering varies by engine size, battery package, and model options.; rates: F 630#, R 515#, damping adjustable front
Applications
Front
Rear
2007-10 Ford GT500 / GT500 Convertible V8
-1.2"-2.7"
-1.2"-2.5"
2011-14 Ford GT500 V8, incl. convertible
-1.2"-2.6"
-1.2"-2.5"
2005-09 Ford Mustang / Mustang GT / Shelby GT / Shelby GT-H V6, V8
-1.2"-2.7"
-1.2"-2.5"
2010 Ford Mustang / Mustang GT / Shelby GT / Shelby GT-H V6, V8
-1.2"-2.7"
-1.2"-2.5"
2005-09 Ford Mustang Convertible V6, V8
-1.2"-2.7"
-1.2"-2.5"
2010 Ford Mustang Convertible V6, V8
-1.2"-2.7"
-1.2"-2.5"

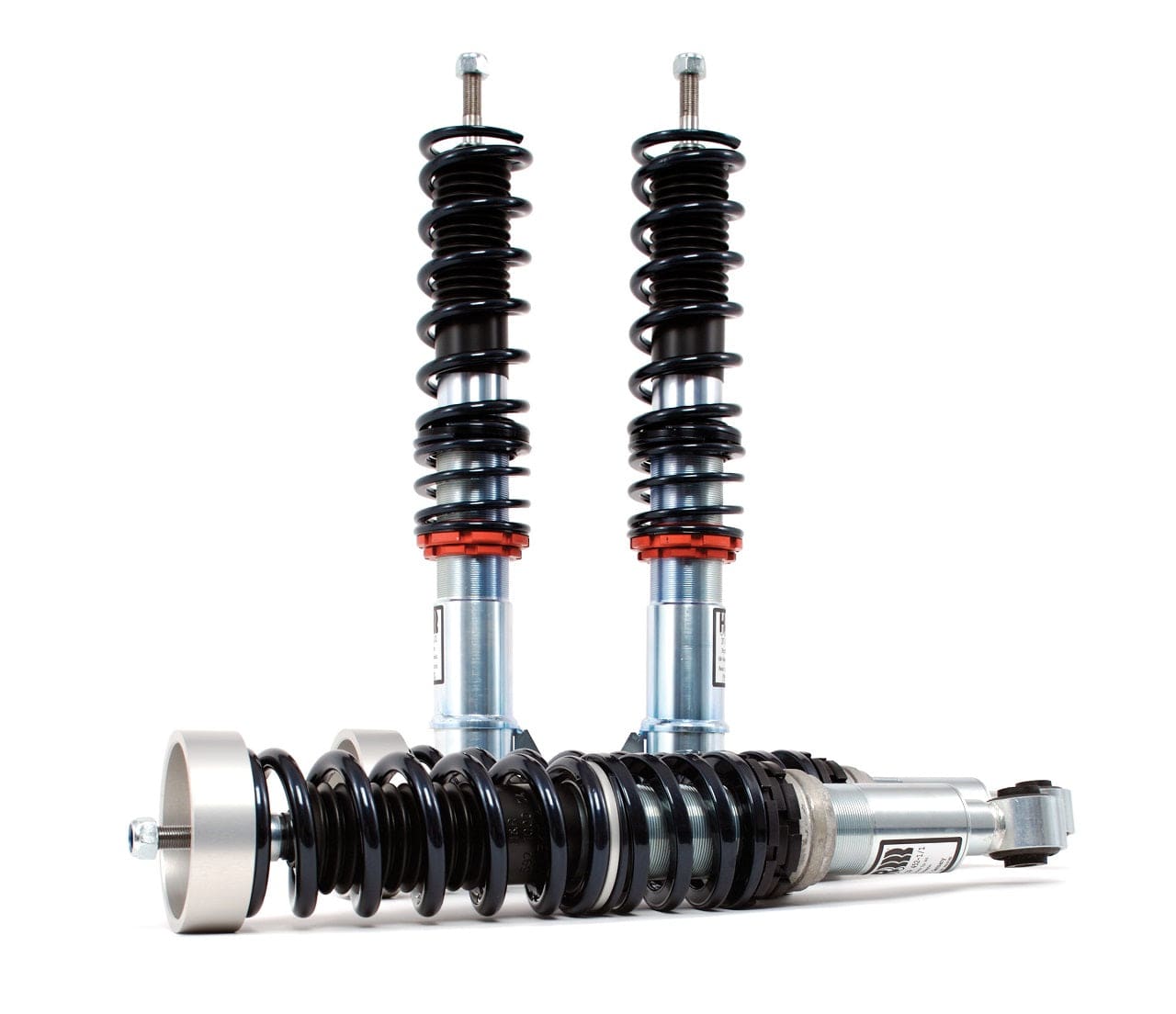

H&R RSS Coil Over Kit | Ford Mustang V6/V8 (05-09) / GT500/GT500 Convertible V8 (07-10) (RSS29170)

H&R RSS Coil Over Kit | Ford Mustang V6/V8 (05-09) / GT500/GT500 Convertible V8 (07-10) (RSS29170)

SKU:RSS29170

Out of stock

Regular price $1,984.00 USD
Regular price $2,480.00 USD Sale price $1,984.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out
â–¶ Suspension Drop / Lift Rates
Part #: hrsRSS29170 - RSS Coil Over
Comment: Lowering varies by engine size, battery package, and model options.; rates: F 630#, R 515#, damping adjustable front
Applications
Front
Rear
2007-10 Ford GT500 / GT500 Convertible V8
-1.2"-2.7"
-1.2"-2.5"
2011-14 Ford GT500 V8, incl. convertible
-1.2"-2.6"
-1.2"-2.5"
2005-09 Ford Mustang / Mustang GT / Shelby GT / Shelby GT-H V6, V8
-1.2"-2.7"
-1.2"-2.5"
2010 Ford Mustang / Mustang GT / Shelby GT / Shelby GT-H V6, V8
-1.2"-2.7"
-1.2"-2.5"
2005-09 Ford Mustang Convertible V6, V8
-1.2"-2.7"
-1.2"-2.5"
2010 Ford Mustang Convertible V6, V8
-1.2"-2.7"
-1.2"-2.5"

The H&R RSS Coilover Kit for the Ford Mustang V6 and V8 (2005-2009) models, including the GT500 and GT500 Convertible (2007-2010), is a high-performance suspension upgrade designed for driving enthusiasts seeking superior handling. Engineered and tested on the renowned Nurburgring circuit, these coilovers deliver precise vehicle feedback, enabling flat cornering and enhanced directional control. Constructed with fully threaded shocks and featuring H&R's exclusive dynamic damper technology, they allow for adjustable ride height and improved stability. The coilovers effectively lower the vehicle's center of gravity and reduce body roll, resulting in sharper handling and a more responsive driving experience. Built for durability and performance, these coilovers are ideal for spirited street driving and track use.

Designed for 2005-2009 Ford Mustang V6 and V8 models, including the GT500 and GT500 Convertible, these coilovers are a direct bolt-on upgrade for compatible vehicles. They are suited for drivers aiming to improve handling, cornering, and overall suspension performance. The kit includes fully threaded shocks, allowing for customizable ride height adjustments to suit individual preferences and driving conditions. Installation is straightforward for those familiar with suspension modifications, making them suitable for both daily driving enthusiasts and track-day participants. These coilovers are an excellent choice for those seeking a high-quality, performance-oriented suspension upgrade to maximize their Mustang's capabilities.

Overview

H&R RSS Coilovers for your 2005-2009 Ford Mustang V6/V8 are designed and tested on the famous Nurburgring, and are for the performance minded driver that requires the most vehicle feedback. The result is flat cornering and supreme directional control - a perfect choice for the high performance driver. RSS Coilovers lower the center of gravity and reduce body roll for better handling.

Like all H&R coilovers, RSS Coilovers feature H&R exclusive dynamic damper technology and a fully threaded shock body.

Features

  • Height adjustable to 1.0 - 2.3 inches on average
  • More spring rate and shock valving
Specifications
Part Number RSS29170
Part Name H&R RSS Coilovers
Country of Origin Germany
Vehicle 2005-2009 Ford Mustang V6/V8
Chassis Code
Adjustment Type Pre-set
Damping Adjustable No
Height Adjustable Yes
Front Lowering 1.2 - 2.7 inches
Rear Lowering 1.2 - 2.5 inches
Front Spring Rates 630 lb/in | 11.2 kg/mm
Rear Spring Rates 515 lb/in | 9.2 kg/mm
Part Note 1 Damping Adjustable Front
Part Note 2 Springs upgrade with different spring rates available: Requires part number 29170CS3
Part Note 3 Optional Spring Rates: Front 715 lb/in | 12.8 kg/mm - Rear: 600 lb/in | 10.7 kg/mm
Fitment Note 1 Lowering varies by engine size, battery package, and model options.
Vehicle Fitment
  • 2005 Ford Mustang V6/V8
  • 2006 Ford Mustang V6/V8
  • 2007 Ford Mustang V6/V8
  • 2008 Ford Mustang V6/V8
  • 2009 Ford Mustang V6/V8
