| Year | Make | Model |
|---|---|---|
| 2005 - 2010 | Ford | Mustang Base |
| 2008 - 2009 | Ford | Mustang Bullitt |
| 2005 - 2010 | Ford | Mustang GT |
| 2007 - 2008 | Ford | Mustang Shelby GT |
| 2007 - 2014 | Ford | Mustang Shelby GT500 |
| 2008 - 2009 | Ford | Mustang Shelby GT500KR |
â–¶ Suspension Drop / Lift Rates

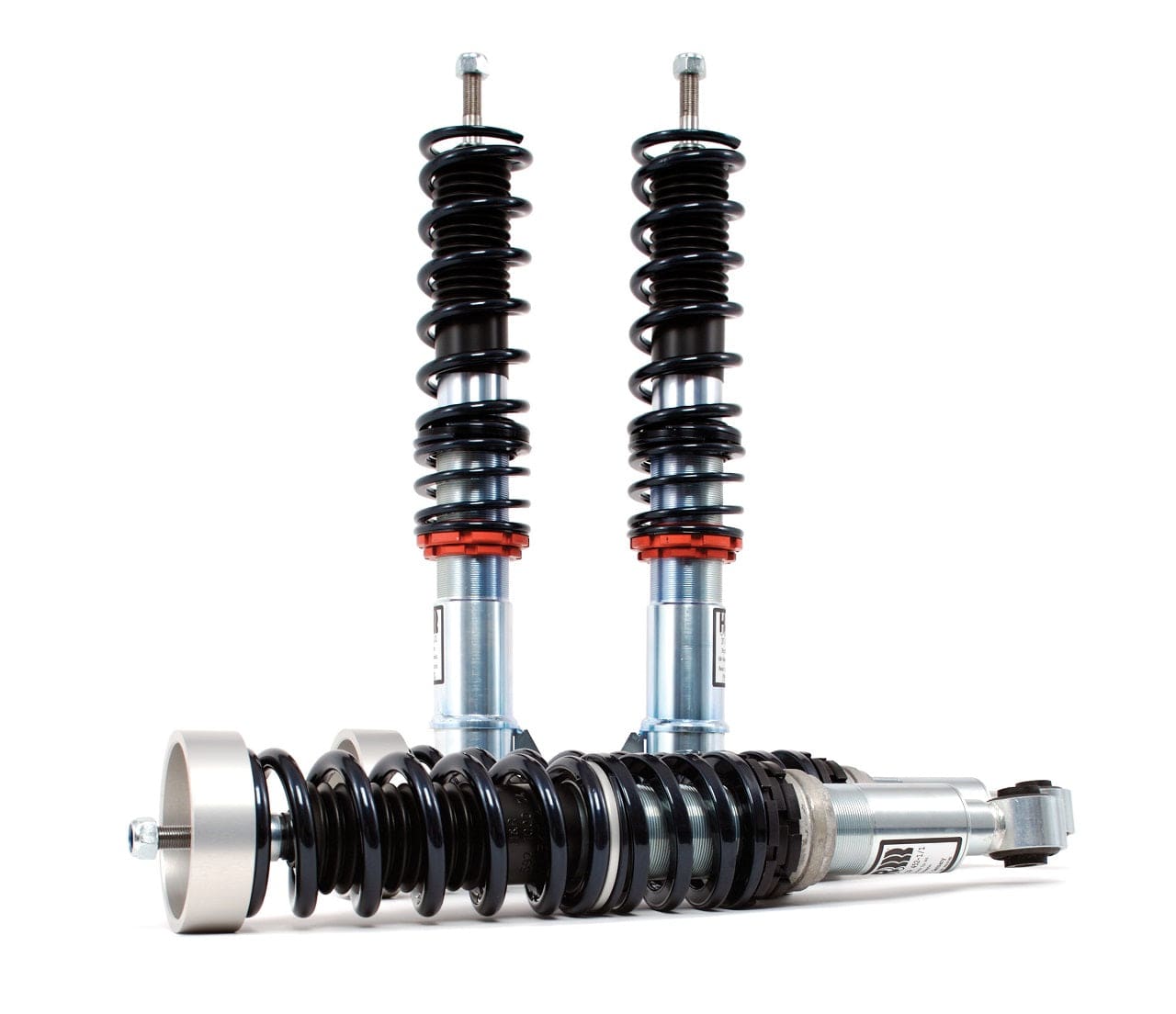

H&R RSS Coil Over Kit | Ford Mustang V6/V8 (10) (RSS29170)
H&R RSS Coil Over Kit | Ford Mustang V6/V8 (10) (RSS29170)
SKU:RSS29170
Out of stock
Couldn't load pickup availability
â–¶ Vehicle Fitments
â–¶ Suspension Drop / Lift Rates
The H&R RSS Coil Over Kit for the 2010 Ford Mustang V6 and V8 is a high-performance suspension upgrade designed to enhance handling and driving feedback. Engineered and tested on the renowned Nurburgring circuit, these coilovers provide precise control and superior cornering capabilities. Featuring H&R’s exclusive dynamic damper technology and a fully threaded shock body, they allow for customizable ride height and improved stability. The coilovers work to lower the vehicle’s center of gravity and reduce body roll, resulting in sharper steering response and improved overall dynamics. Built with quality materials, these coilovers are tailored for enthusiasts seeking a track-ready yet streetable suspension solution that delivers consistent performance and durability.
Designed specifically for 2010 Ford Mustang models with V6 or V8 engines, these coilovers are a direct bolt-on upgrade that replaces the factory suspension components. They are ideal for performance driving, including street, track, or spirited canyon runs, where enhanced handling and feedback are desired. The kit includes fully adjustable coilovers, allowing for fine-tuning of ride height and damping characteristics to suit individual preferences. Compatibility is optimized for Mustang chassis codes from 2010, and installation requires basic tools. These coilovers are perfect for drivers aiming to improve cornering, reduce body roll, and achieve a more aggressive stance without sacrificing daily drivability.
Share
Overview
Overview
H&R RSS Coilovers for your 2010 Ford Mustang V6/V8 are designed and tested on the famous Nurburgring, and are for the performance minded driver that requires the most vehicle feedback. The result is flat cornering and supreme directional control - a perfect choice for the high performance driver. RSS Coilovers lower the center of gravity and reduce body roll for better handling.
Like all H&R coilovers, RSS Coilovers feature H&R exclusive dynamic damper technology and a fully threaded shock body.
Features
- Height adjustable to 1.0 - 2.3 inches on average
- More spring rate and shock valving
Specifications
| Part Number | RSS29170 |
| Part Name | H&R RSS Coilovers |
| Country of Origin | Germany |
| Vehicle | 2010 Ford Mustang V6/V8 |
| Chassis Code | |
| Adjustment Type | Pre-set |
| Damping Adjustable | No |
| Height Adjustable | Yes |
| Front Lowering | 1.2 - 2.7 inches |
| Rear Lowering | 1.2 - 2.5 inches |
| Front Spring Rates | 630 lb/in | 11.2 kg/mm |
| Rear Spring Rates | 515 lb/in | 9.2 kg/mm |
| Part Note 1 | Damping Adjustable Front |
| Part Note 2 | Springs upgrade with different spring rates available: Requires part number 29170CS3 |
| Part Note 3 | Optional Spring Rates: Front 715 lb/in | 12.8 kg/mm - Rear: 600 lb/in | 10.7 kg/mm |
| Fitment Note 1 | Lowering varies by engine size, battery package, and model options. |
Vehicle Fitment
- 2010 Ford Mustang V6/V8
