â–¶ Suspension Drop / Lift Rates
Part #: hrsRSS29170-2 - RSS Coil Over
Comment: Lowering varies by engine size, battery package, and model options.; rates: F 630#, R 515#, damping adjustable front
Applications
Front
Rear
2011-14 Ford Mustang / Mustang GT V6, V8
-1.2"-2.7"
-1.2"-2.5"
2011-14 Ford Mustang Convertible V6, V8
-1.2"-2.7"
-1.2"-2.5"

H&R RSS Coilovers Ford Mustang V6/V8 | 2011-14 (RSS29170-2)

H&R RSS Coilovers Ford Mustang V6/V8 | 2011-14 (RSS29170-2)

SKU:RSS29170-2

Out of stock

Regular price $2,064.00 USD
Regular price $2,580.00 USD Sale price $2,064.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out
â–¶ Suspension Drop / Lift Rates
Part #: hrsRSS29170-2 - RSS Coil Over
Comment: Lowering varies by engine size, battery package, and model options.; rates: F 630#, R 515#, damping adjustable front
Applications
Front
Rear
2011-14 Ford Mustang / Mustang GT V6, V8
-1.2"-2.7"
-1.2"-2.5"
2011-14 Ford Mustang Convertible V6, V8
-1.2"-2.7"
-1.2"-2.5"

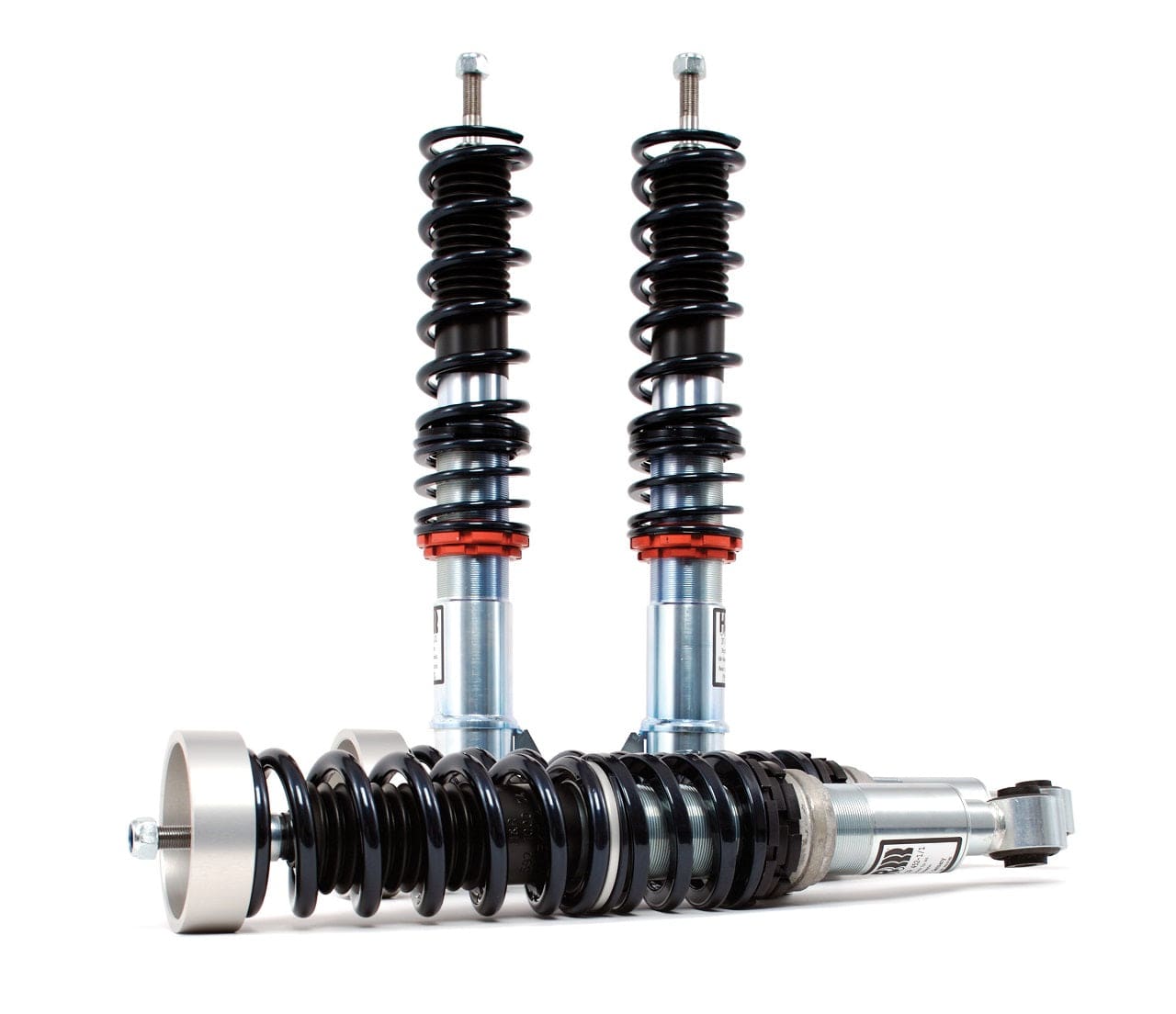

The H&R RSS Coilovers for the 2011-2014 Ford Mustang V6 and V8 are high-performance suspension components designed to enhance handling and driving dynamics. Engineered and tested on the renowned Nurburgring circuit, these coilovers provide precise vehicle feedback, making them ideal for performance enthusiasts. They feature H&R's exclusive dynamic damper technology and a fully threaded shock body, allowing for adjustable ride height and improved cornering stability. By lowering the center of gravity and reducing body roll, these coilovers deliver superior control and responsiveness, especially during aggressive driving or track use. Constructed with durable materials, they are built to withstand demanding driving conditions while maintaining optimal performance.

Designed specifically for 2011-2014 Ford Mustang models with V6 or V8 engines, these coilovers are a direct bolt-on upgrade for the factory suspension. They are suitable for street, track, or spirited driving, providing a significant upgrade over stock components. Installation involves replacing the existing shocks and springs, offering a straightforward upgrade for those seeking improved handling and a lowered stance. The kit includes fully threaded shock bodies for customizable height adjustments, ensuring a tailored fit for your vehicle. Compatibility is limited to the specified model years and engine configurations, making these coilovers an excellent choice for performance-oriented Mustang owners.

Overview

H&R RSS Coilovers for your 2011-2014 Ford Mustang GT V6/V8 are designed and tested on the famous Nurburgring, and are for the performance minded driver that requires the most vehicle feedback. The result is flat cornering and supreme directional control - a perfect choice for the high performance driver. RSS Coilovers lower the center of gravity and reduce body roll for better handling.

Like all H&R coilovers, RSS Coilovers feature H&R exclusive dynamic damper technology and a fully threaded shock body.

Features

  • Height adjustable to 1.0 - 2.3 inches on average
  • More spring rate and shock valving
Specifications
Part Number RSS29170-2
Part Name H&R RSS Coilovers
Country of Origin Germany
Vehicle 2011-2014 Ford Mustang GT V6/V8
Chassis Code
Adjustment Type Pre-set
Damping Adjustable No
Height Adjustable Yes
Front Lowering 1.2 - 2.7 inches
Rear Lowering 1.2 - 2.5 inches
Front Spring Rates 630 lb/in | 11.2 kg/mm
Rear Spring Rates 515 lb/in | 9.2 kg/mm
Part Note 1 Damping Adjustable Front
Part Note 2 Springs upgrade with different spring rates available: Requires part number 29170CS3
Part Note 3 Optional Spring Rates: Front 715 lb/in | 12.8 kg/mm - Rear: 600 lb/in | 10.7 kg/mm
Fitment Note 1 Lowering varies by engine size, battery package, and model options.
Vehicle Fitment
  • 2011 Ford Mustang GT V6/V8
  • 2012 Ford Mustang GT V6/V8
  • 2013 Ford Mustang GT V6/V8
  • 2014 Ford Mustang GT V6/V8
