Suspension Drop / Lift Rates
Part #: hrsRSS13021-2 - RSS+ Coil Over
Comment: Lowering height will vary on vehicles with factory sport suspensions such as BMW M-Technik, Mercedes-Benz Sport-line suspension, Audi-Sport suspension, etc.; Wheel offset critical. Spacers may be required when the standard wheel / tire combination is used.; w/ 48.5mm front strut, w/ RS sport suspension plus, w/o air suspension, DRC cancellation kit included, damping adjustable
Applications
Front
Rear
2020-26 Audi RS6 Avant F2, AWD
-1.2"-1.8"
-1.2"-1.6"

H&R RSS Plus Coilovers 48.5mm F&R | Audi RS6 Avant (20-23) (RSS13021-2)

H&R RSS Plus Coilovers 48.5mm F&R | Audi RS6 Avant (20-23) (RSS13021-2)

SKU:RSS13021-2

Out of stock

Regular price $3,504.00 USD
Regular price $4,380.00 USD Sale price $3,504.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out
Suspension Drop / Lift Rates
Part #: hrsRSS13021-2 - RSS+ Coil Over
Comment: Lowering height will vary on vehicles with factory sport suspensions such as BMW M-Technik, Mercedes-Benz Sport-line suspension, Audi-Sport suspension, etc.; Wheel offset critical. Spacers may be required when the standard wheel / tire combination is used.; w/ 48.5mm front strut, w/ RS sport suspension plus, w/o air suspension, DRC cancellation kit included, damping adjustable
Applications
Front
Rear
2020-26 Audi RS6 Avant F2, AWD
-1.2"-1.8"
-1.2"-1.6"

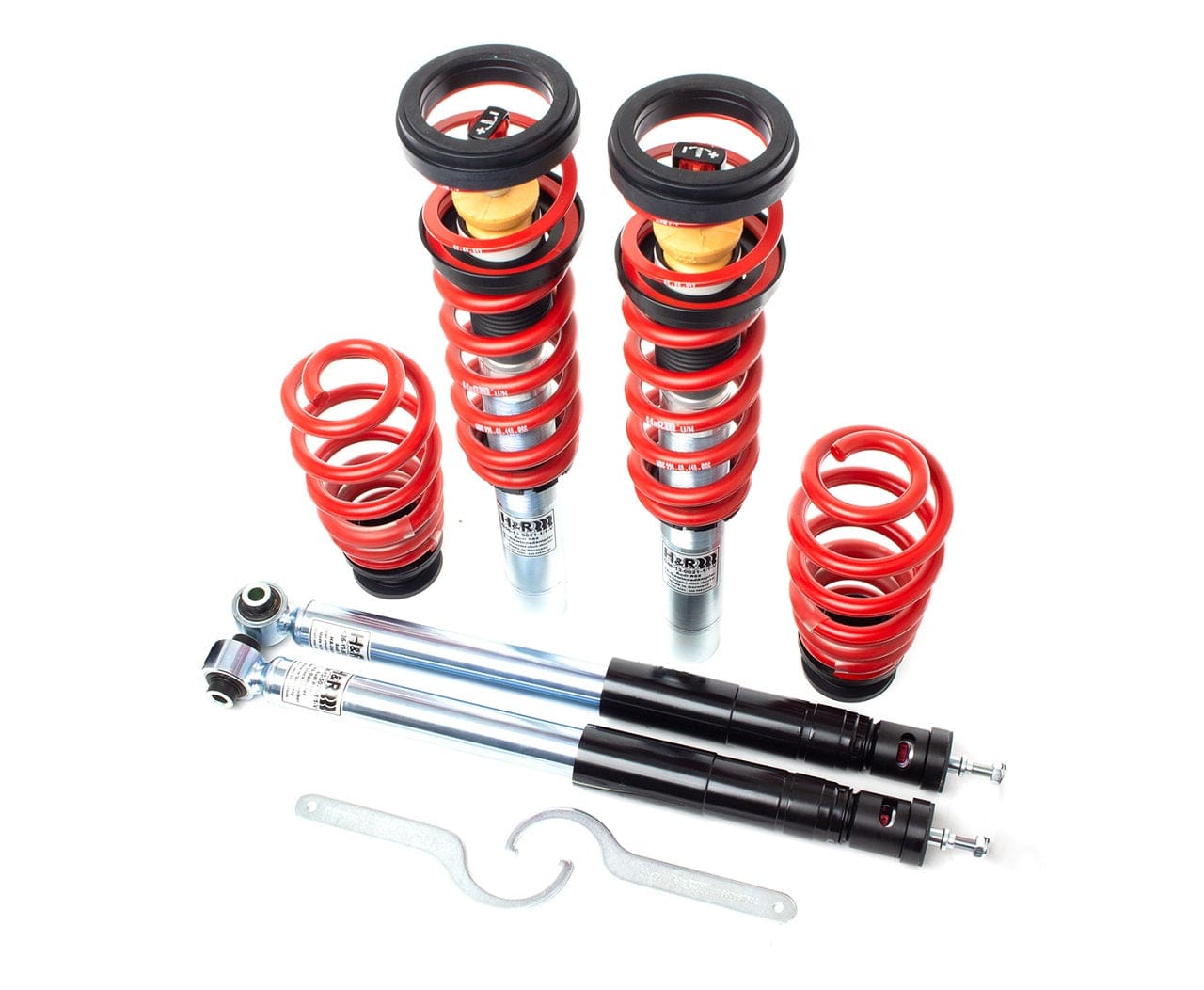

The H&R RSS Plus Coilovers for the Audi RS6 Avant (2020-2023) are high-performance suspension components designed to enhance handling and ride quality. Featuring a monotube shock design, these coilovers provide precise control and externally adjustable damping, allowing for customized suspension tuning. The lightweight aluminum shock bodies, finished with a durable black hard anodized coating, combine aesthetic appeal with corrosion resistance. Engineered for enthusiasts seeking race car-level performance, these coilovers deliver improved stability, reduced body roll, and sharper responsiveness on both street and track environments.

Designed specifically for the 2020-2023 Audi RS6 Avant AWD with RS-Sport Suspension Plus, these coilovers are a direct replacement for the factory suspension. They are suitable for street driving, spirited performance, and track use, offering adjustable ride height and damping to suit various driving conditions. The kit includes the necessary coilover assemblies for both the front and rear, ensuring a straightforward installation process. Compatibility is limited to the specified model years and configuration, making these coilovers an ideal upgrade for performance-oriented Audi owners.

Overview

H&R RSS Plus Coilovers for your 2020-2023 Audi RS6 Avant AWD w/ RS-Sport Suspension Plus 48.5mm Front Strut (F2) are the ultimate high performance suspension with features only found on race cars. RSS Plus Coilovers include a MONOTUBE shock design for precise control and externally adjustable shock damping. Some RSS Plus Coilovers feature high-tech light weight aluminum shock bodies that have a black hard anodized finish for beauty and corrosion resistance. H&R engineers have spared no expense developing the RSS Plus.

These beauties feature damping adjustment that simultaneously fine tunes rebound and compression damping for perfect balance and control.

Features

  • Height and damping adjustable aluminum MONOTUBE coilovers
  • The ultimate high performance suspension
Specifications
Part Number RSS13021-2
Part Name H&R RSS Plus Coilovers
Country of Origin Germany
Vehicle 2020-2023 Audi RS6 Avant AWD w/ RS-Sport Suspension Plus 48.5mm Front Strut
Chassis Code F2
Adjustment Type 1-Way
Damping Adjustable Yes
Height Adjustable Yes
Front Lowering 1.2 - 1.8 inches
Rear Lowering 1.2 - 1.6 inches
Part Note 1 Includes DRC Cancellation Kit
Part Note 2 48.5mm Front Strut
Part Note 3 w/o Air Suspension
Fitment Note 1 Lowering height will vary on vehicles with factory sport suspensions such as BMW M-Technik, Mercedes-Benz Sport Line suspension, Audi Sport suspension, etc.
Fitment Note 2 Wheel offset critical. Spacers may be required when the standard wheel / tire combination is used.
Vehicle Fitment
  • 2020 Audi RS6 Avant AWD w/ RS-Sport Suspension Plus 48.5mm Front Strut (F2)
  • 2021 Audi RS6 Avant AWD w/ RS-Sport Suspension Plus 48.5mm Front Strut (F2)
  • 2022 Audi RS6 Avant AWD w/ RS-Sport Suspension Plus 48.5mm Front Strut (F2)
  • 2023 Audi RS6 Avant AWD w/ RS-Sport Suspension Plus 48.5mm Front Strut (F2)
