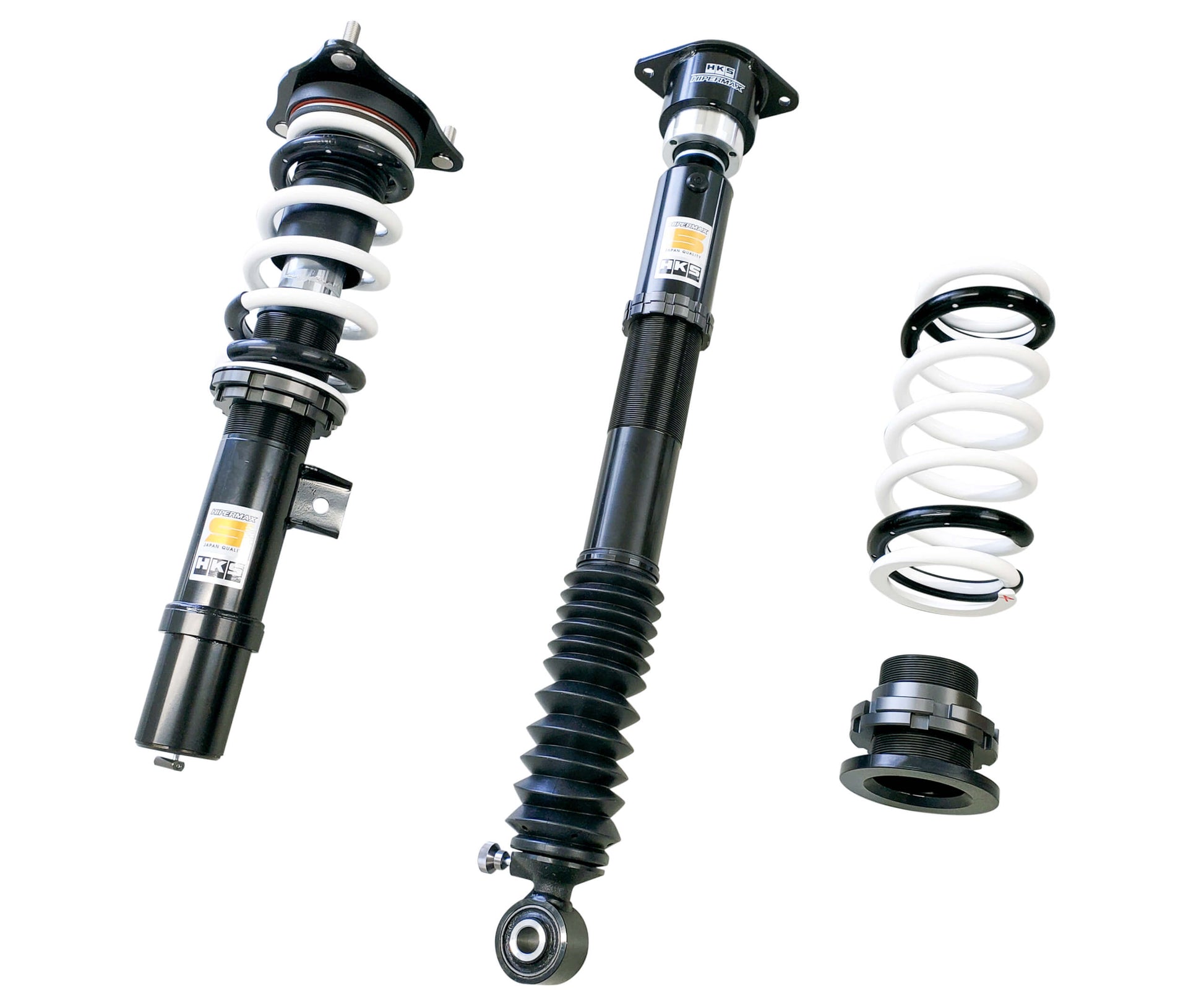

HKS Hipermax S Coilovers - Honda Civic Hatchback FK7 16-21

Embarking on an exciting journey of evolution, HKS is set to integrate and revitalize their esteemed MAXIV GT Series into the innovative HIPERMAX S. With nearly a decade elapsed since the inception of MAXIVGT, HKS has diligently cultivated novel technologies during this period. The HIPERMAX S Series emerges as a fresh incarnation, harnessing the distinctive attributes of its predecessors while elevating damping force characteristics, durability, and aesthetic appeal to new heights. Prepare to indulge in an unparalleled ride experience, as the HIPERMAX S Series stands poised to deliver the pinnacle of suspension performance in HKS's storied history.

APPLICATIONS

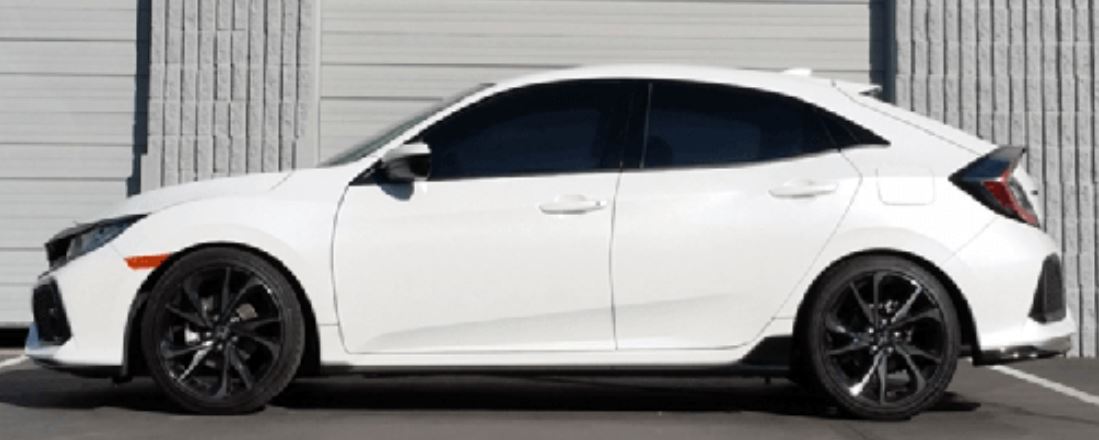

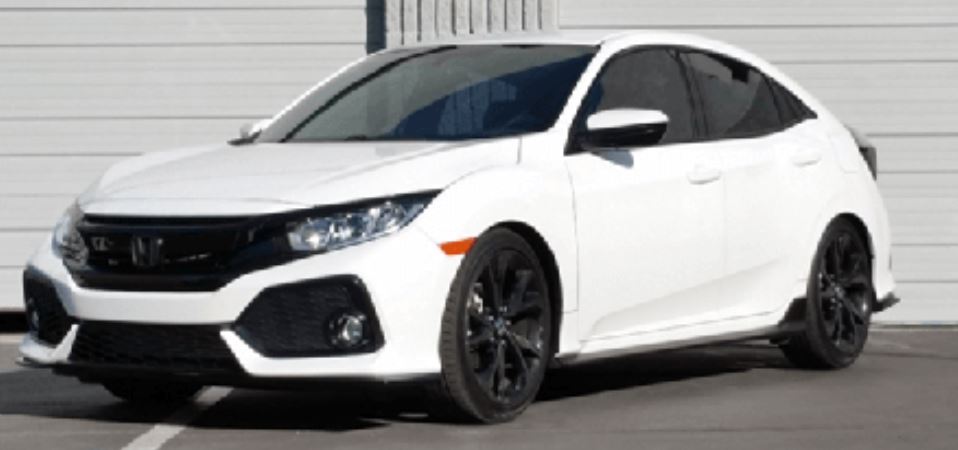

• HONDA CIVIC 5D (2017, 2018, 2019, 2020, 2021)

FEATURES

• Dual PVS
• Wide Range Damping Force Adjustment Mechanism
• Evolution of Bump Stop Rubber
• Low Friction Technology
• Single Tube
• 30 Levels Adjustable Damping
• Shock-Body Length Adjustable (Rear Only)
• Special Oil
• PNE Coating
• Dual Pre-Load Valve System
• Aluminum Bracket
• Rubber Upper Mount
• Spec. Change Available
• Overhaul Available

SPECIFICATIONS

• Spring Rate [N/mm(kgf/mm)]: F=49(5.0) | R=39(4.0)
• Spring Length (mm): F=220 (Straight Barrel Type) | R=220 (Straight Barrel Type)
• Height at Factory (Upper-Lower): F=-41(-29 to -52) | R=-33(-14 to -79)
• Upper Mount: F=Rubber | R=Rubber
• Spring Rate Change at Factory [Changeable Spring Rate N/mm(kgf/mm)]: F=Impossible | R=Impossible
