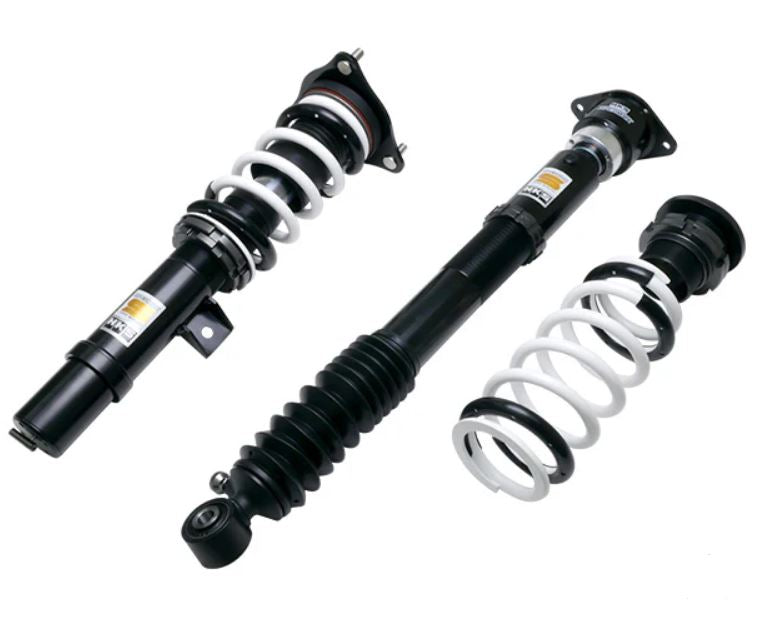

HKS Hipermax S Coilovers - Honda Civic Hatchback FL1 1.5T 2022+

Single Tube Damper Design

• The new HIPERMAX S Series continues to utilize a single-tube damper design, a proven structure that separates the gas and oil chambers for enhanced performance. This configuration allows for the use of a large-diameter piston, which significantly improves the stability and consistency of damping force.

  By maintaining optimal pressure balance within the damper, the HIPERMAX S delivers refined ride quality and superior control, whether on the street or during spirited driving. The result is a suspension system that offers both comfort and precision, embodying the next evolution of HKS's suspension technology.

Inverted Shock Absorber (Strut)

• Large lateral forces are distributed across a larger area, enhancing rigidity under high loads or with larger wheels.
• The damper is attached to the body side, which reduces un-sprung weight and improves handling.

Dual PVS

• The Pre-load Valve System, which was introduced in the previous MAX IV GT 20 Spec models S-Style L and S-Style C, significantly improved handling performance. This system has now been further enhanced with the introduction of "Dual PVS." This new feature reduces high-speed damping while minimizing unnecessary movement.

WR Needle：Wide range damping force adjustment mechanism

• The improved shape of the needle expands the oil relief channel. Each step of the 30 step adjustment is now more prominent. Having softer adjustment options gives more options for street driving.

ADVANCED BUMP RUBBER（Evolution of Bump stop rubber)

• For HIPERMAX S, a further improved “ADVANCED BUMP RUBBER” was developed which pursues further softness and also shorter variations deliver a wide range of options for a variety of cars delivers a natural and smooth experience

PNE Coating

• HKS previously introduced SNOW EDITION versions to combat corrosion head on. The result of this development was PNE coating delivering 5x better durability compared to standard galvanizing

Strengthened Rubber Upper Mount

• Strengthened rubber upper mount is able to absorb small body vibrations whilst tightening up the mount over stock. Revised cross sectional design and material composition balance comfort and performance

"KODAWARI" of Exterior

• The aluminum top mount is chamfered by machining to enhance the beauty of the product.Delivering detail and quality which was not previously available through previous printing methods
