HKS 1.6mm 82mm Head Gasket | Toyota MR2 (85-89) 4A-GE MG/K (2301-RT024)

HKS 1.6mm 82mm Head Gasket | Toyota MR2 (85-89) 4A-GE MG/K (2301-RT024)

2301-RT024

Out of stock

$160.00 USD
$160.00 USD
Sold out

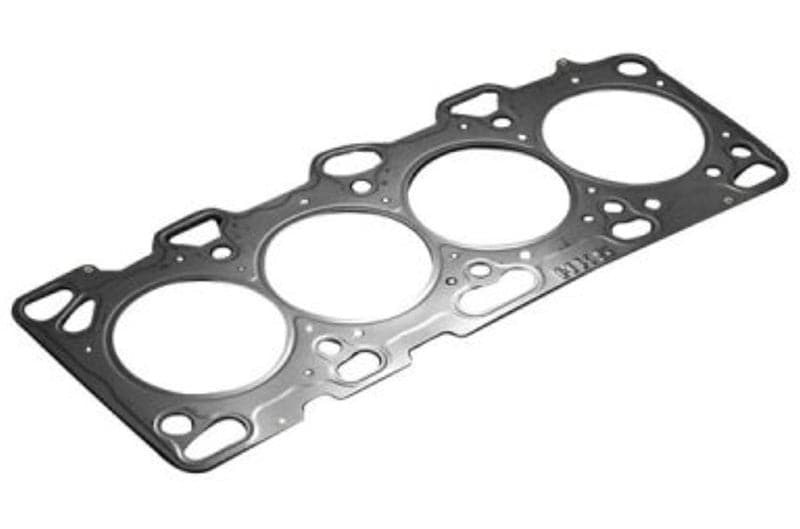

The HKS 1.6mm 82mm Head Gasket is a high-performance metal head gasket designed for the Toyota MR2 (1985-1989) with the 4A-GE MG/K engine. Constructed with multiple layers of steel and coated with a special fluorine rubber, this gasket provides exceptional sealing capabilities under demanding conditions. It is engineered to withstand the intense heat generated by high-horsepower and high-boost applications, making it suitable for modified engines. The gasket's design accommodates standard and certain oversized cylinder bores, offering reliable durability and consistent compression sealing. Multiple thickness options are available to adjust the dynamic compression ratio, allowing for tailored performance tuning.

This head gasket is a direct replacement for the stock component on compatible Toyota MR2 models within the specified years and engine configurations. It is intended for use in high-performance street and track applications where enhanced sealing and heat resistance are critical. Installation involves replacing the existing gasket with this upgraded component, ensuring a secure seal during high-stress driving conditions. The kit includes the head gasket itself, designed for straightforward bolt-on installation, and is ideal for enthusiasts seeking improved reliability and performance in forced induction or high-compression setups.

Overview

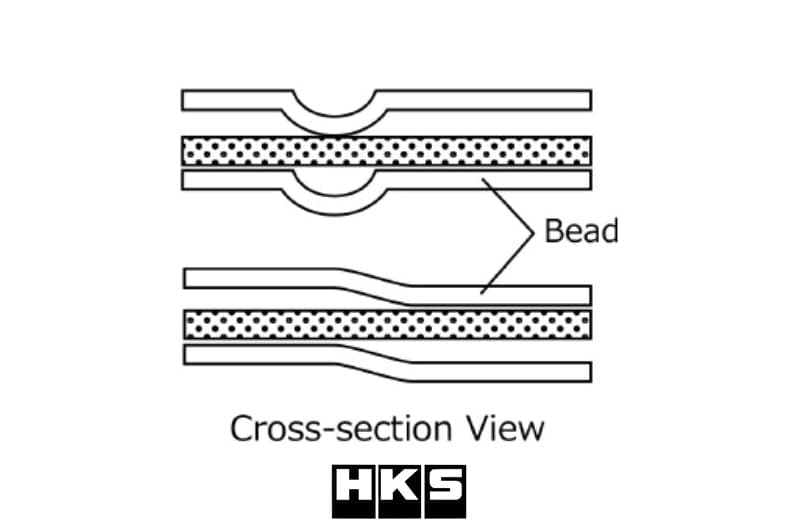

HKS metal head gaskets are uniquely engineered to prevent severe levels of heat that are generated by high-horsepower and high-boost applications. All HKS head gaskets are made with multiple layers of steel and coated with a special fluorine rubber to give exceptional sealing. HKS head gaskets are designed to accommodate standard and certain oversized cylinder bores. For most applications, multiple gasket thicknesses are available to change the dynamic compression ratio for various levels of tuning and engine conditions. (Note: HKS gaskets are not designed to cure sealing problems caused by head or block irregularities.) The HKS Bead-Type gasket features a raised bead structure around each combustion chamber to ensure a precise seal. A bead is a type of spring used to maintain surface pressure which is very well suited to head gasket use. The beads are laid out to provide optimum pressure and seal around the combustion chamber. By carefully designing and adjusting the bead shape and heights, precise control of surface pressure is achieved for optimum results. Using a combination of 3 different types of beads allows maximum efficiency and performance.

PLEASE NOTE

  • The compression ratios that are listed are for comparison purposes only, the actual ratio achieved may vary depending on the application.
  • Pictures may differ in the actual product
  • Special Order

APPLICATION

  • Toyota 4A-GE Engine (1985, 1986, 1987, 1988, 1989, 1990, 1991)

FEATURES

  • Gasket Type: Bead
  • Bore: 82.0mm
  • Compression Ratio: 9.0
  • Thickness: 1.6mm
