| Year | Make | Model |
|---|---|---|
| 1971-1977 | Toyota | Celica I (A20/35) |
| 1985-1989 | Toyota | Celica IV (T160) |
| 1981-1985 | Toyota | Celica Supra A60 |
| 1989-1993 | Toyota | Celica V (T180) |
| 1993-1999 | Toyota | Celica VI (T200) |
| 1999-2006 | Toyota | Celica VII (T230) |
| 1984-1990 | Toyota | MR2 I (W10) |
| 1989-2000 | Toyota | MR2 II (W20) |
| 1999-2007 | Toyota | MR2 Roadster III |
| 1999-2006 | Toyota | MR2 Spyder III |
HKS 87.5mm Stopper Head Gasket | Toyota Celica/MR2 88-95 (2301-RT035)
HKS 87.5mm Stopper Head Gasket | Toyota Celica/MR2 88-95 (2301-RT035)
SKU:2301-RT035
Out of stock
Couldn't load pickup availability
â–¶ Vehicle Fitments

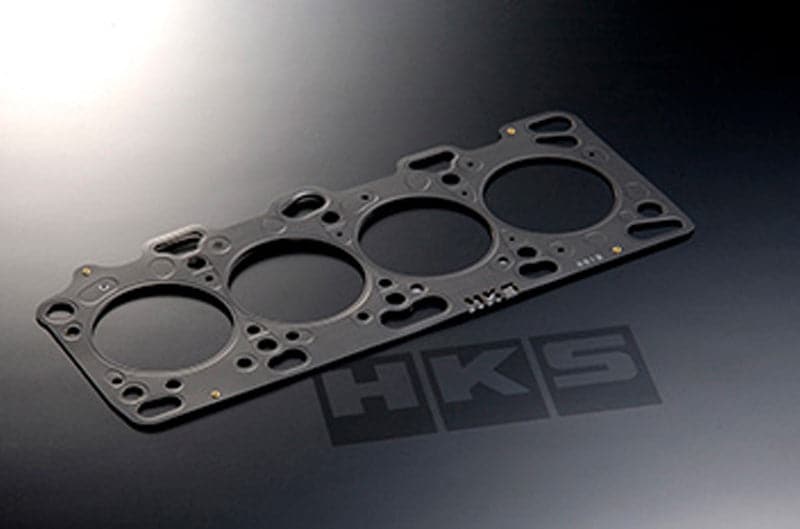

The HKS 87.5mm Stopper Head Gasket is a high-performance sealing component designed for Toyota Celica and MR2 models from 1988 to 1995. Crafted to enhance combustion chamber sealing, this gasket features stoppers that create a precise step within the gasket, ensuring a high-pressure seal. The design incorporates a flat side that can be layered with the stopper, allowing installation in tight spaces around the combustion chamber without sacrificing structural integrity. Constructed with quality materials, this gasket provides reliable sealing under high-pressure conditions, making it suitable for performance applications and engine modifications.
This gasket is specifically engineered for 1988-1995 Toyota Celica and MR2 models, fitting engines that require an 87.5mm head gasket. It serves as an upgrade or replacement for stock gaskets in high-performance or modified engines, particularly where enhanced sealing is critical. The design allows for direct installation in compatible engines, ensuring a secure fit and optimal sealing performance. Ideal for street and track use, this gasket helps maintain engine integrity under increased boost or power levels, supporting reliable engine operation in demanding conditions.
Share
Overview
Overview

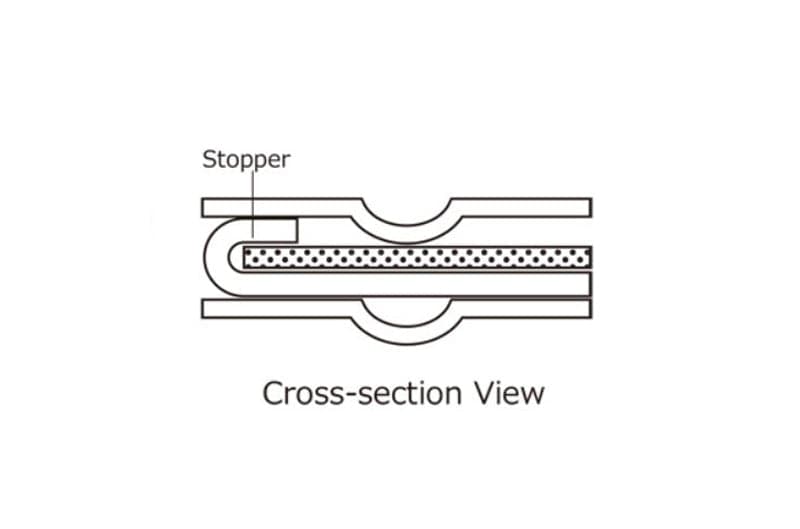

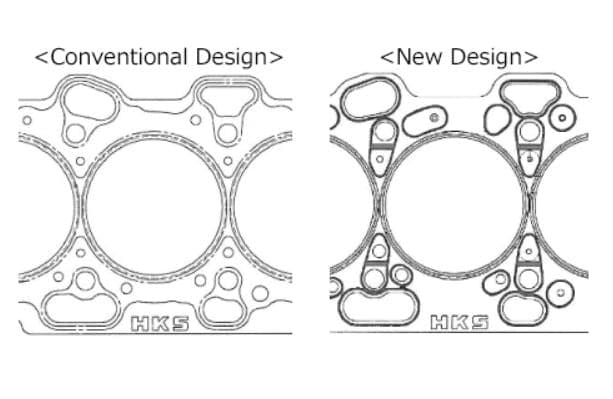

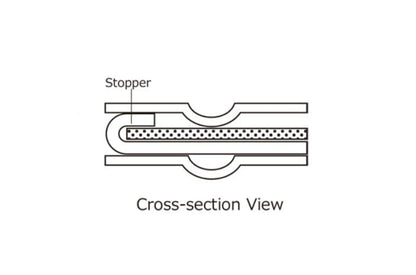

A high-pressure seal is formed around the combustion chamber through the use of stoppers which create a step within the gasket for optimum sealing. By making the stopper part of the plate also allows the fold to be smaller while maintaining structural integrity. One side of the plate is completely flat meaning that it can be layered with the stopper to allow stoppers to be used in even the tightest of locations around the combustion chamber forming a high-quality seal. Compared with other gaskets of the same thickness, there are more layers in these gaskets giving flexibility which allows the gasket to maintain a good seal even when the engine tries to vibrate and move.
PLEASE NOTE
- Compression Ratios Listed are for comparison purposes only, Actual Ratio Achieved may vary depending on the application.
- Special Order
APPLICATION
- Toyota Celica (1988, 1989, 1990, 1991, 1992, 1993)
- Toyota MR2Â (1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995)
FEATURES
- Gasket Type: Stopper
- Bore: 87.5mm
- Compression Ratio: 8.38
- Thickness: 1.6mm
