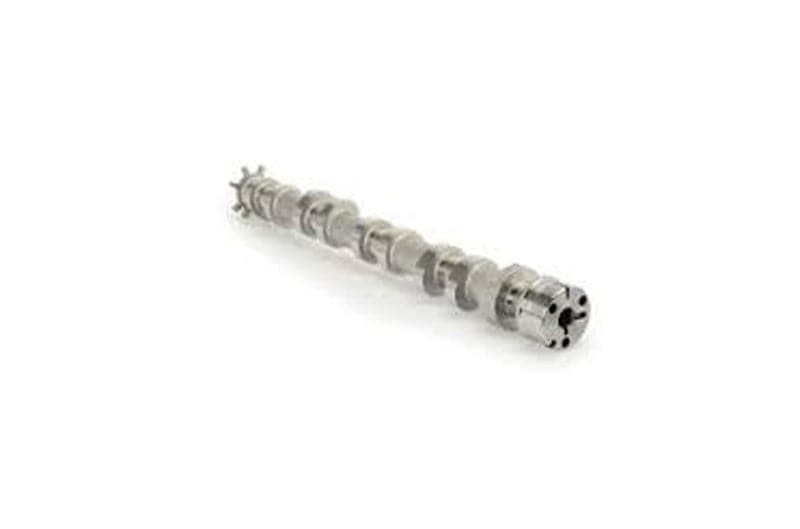

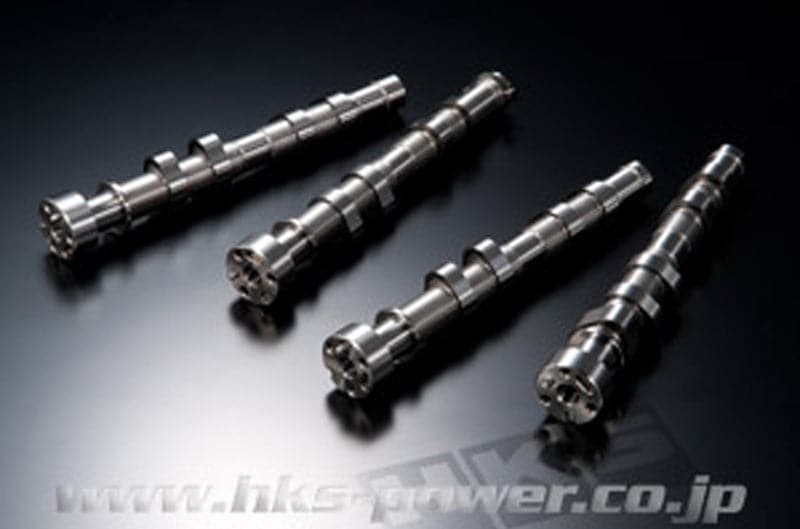

HKS Camshafts Intake 260° / Exhaust 266° Set | Toyota FA20 (22002-AT005)

HKS Camshafts Intake 260° / Exhaust 266° Set | Toyota FA20 (22002-AT005)

22002-AT005

Out of stock

$2,154.35 USD
$2,180.00 USD $2,154.35 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The HKS Camshafts Intake 260° and Exhaust 266° Set for the Subaru FA20 engine are high-performance camshaft components designed to enhance engine breathing and power output. Developed through extensive experience in D1 drift and time attack events at Tsukuba Circuit, these camshafts are engineered to deliver significant gains in high RPM power. Suitable for both naturally aspirated and turbocharged applications, they are crafted to maximize performance in racing and high-performance driving scenarios. The set is constructed with precision to ensure durability and optimal valve timing, providing a noticeable increase in horsepower and torque at elevated engine speeds. When used together with the appropriate capacity upgrade kit, these camshafts help achieve peak performance while maintaining proper valve clearance.

Designed specifically for Subaru FA20 engines from 2012 to 2016, these camshafts are compatible with models equipped with the FA20 engine configuration. They are intended for use in racing, time attack, or high-performance street applications where maximum high RPM power is desired. Installation involves replacing the stock camshafts with these performance units, making them suitable for experienced enthusiasts and professional tuners. The kit includes the intake and exhaust camshafts, optimized for high-RPM power delivery. These camshafts are ideal for track use, racing, or any application requiring aggressive valve timing and increased engine output, providing a substantial upgrade over stock components.

Overview

NOT FOR SALE OR STREET USE IN CALIFORNIA & CARB STATES.



Camshaft Kit developed by taking advantage of knowledge and experience acquired through D1 drift and time attack at Tsukuba Circuit. Both NA and turbo-charged engine users can use this camshaft set. An overwhelming power increase can be felt in the high rpm range. Using the capacity upgrade kit together is recommended to achieve optimum performance and keep proper valve clearance.

APPLICATION

  • Subaru [FA20] (2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021)

FEATURES

  • High acceleration and pick-up camshafts were completed by meticulous analysis of the stock rocker structure.
  • Cam lobe for the direct injection pump is available so the camshaft can be used the same way as the stock.
  • The valve timing is the knock pin is matched to stock cam, so, there is no need for complicated installation.
  • Since the stock valve piston clearance is narrow, this camshaft kit was developed to be used with the capacity upgrade kit, and the piston recess was redesigned to enable a 0.7mm lift increase without replacing the springs.

SPECIFICATION

  • HKS INTAKE Cam Duration (  °): 260
  • HKS EXHAUST Cam Duration (  °): 266
  • HKS INTAKE Valve Lift (mm): 11.70
  • HKS EXHAUST Valve Lift (mm): 11.70
  • HKS INTAKE Clearance (mm): 0.13±0.03
  • HKS EXHAUST Clearance (mm): 0.24±0.03
  • HKS INTAKE Valve Timing Most Advanced Angle (  °): 82
  • HKS INTAKE Valve Timing Most Advanced Angle (  °): 81
  • HKS INTAKE Valve Timing Most Retarded Angle (  °): 150
  • HKS EXHAUST Valve Timing Most Retarded Angle (  °): 135
  • HKS INTAKE VVT Variable Angle ( °): 68
  • HKS EXHAUST VVT Variable Angle ( °): 54
  • HKS INTAKE Cam Type: Roller Rocker
  • HKS EXHAUST Cam Type: Roller Rocker
