HKS Exhaust Manifold | Toyota Altezza SXE10 MT (98-05) Race Part (3304-ST010)

HKS Exhaust Manifold | Toyota Altezza SXE10 MT (98-05) Race Part (3304-ST010)

3304-ST010

Out of stock

$2,200.00 USD
$2,200.00 USD
Sold out

The HKS Exhaust Manifold for the Toyota Altezza SXE10 is a high-performance race component designed to maximize engine output. Engineered with HKS's extensive exhaust technology expertise, this manifold aims to extract 100% of the engine's potential by optimizing exhaust flow. It features a specialized design that balances performance across the mid-range RPMs while enhancing horsepower at higher RPMs. Constructed from durable materials suitable for racing conditions, this manifold is built to withstand the rigors of competitive motorsport. Its design focuses on reducing pressure losses and improving exhaust scavenging, resulting in increased power and responsiveness.

This exhaust manifold is intended for use on the Toyota Altezza SXE10 with a 1.8L engine, produced between 1998 and 2005. It is a purpose-built race part, not suitable for street use, and is designed for track or competition applications. Installation involves direct replacement of the stock manifold, offering a bolt-on upgrade for race cars or dedicated track vehicles. The kit includes the manifold itself, with no additional components specified. Ideal for race cars and performance enthusiasts, this manifold provides a significant upgrade in exhaust flow and engine performance for motorsport use.

Overview

HKS Exhaust technology, which is the know-how of long-time development, targets to pull out 100% engine performance with the exhaust manifold. A lot of different approaches were tried for each vehicle to keep performance for the middle rpm range and to improve horsepower at high rpm.

PLEASE NOTE

  • HKS RACE PART solely for use on purpose-built race cars, never to be used on a motor vehicle

APPLICATION

  • Toyota Altezza [SXE10 MT] (1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005)

FEATURES

  • Reduced pressure with Bypass Pipe (Racing Header) - When a strong vacuum is created, to the contrary, there also is strong pressure. Cylinder pipes are connected with a Bypass Pipe to reduce pressure as minimum as possible. The rhythm of "Pressure" and "Vacuum" inside the manifold is controlled. Besides, a number of bypass pipes and positions are designed to optimize for each engine characteristics. It enables to reduce of pressure without change of vacuum. Therefore, there is no drop in torque. The engine will have Inertia Exhaust Gas Efficiency (Efficiency to increase the horsepower of NA engine) and flat torque characteristics, which enables easy drivability.

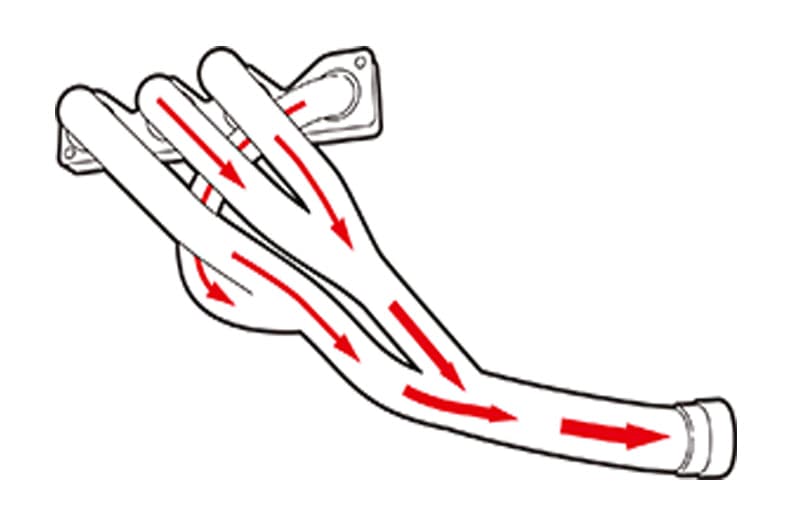

  • Advantage of 4-2-1 Straight Junction (Super Header) - HKS selected 4-2-1 junction design that has the best result for street use from the study of various data about a lot of engine characteristics and exhaust gas pulse. 4-1 Junction type has a shorter length to the junction part and it is better for competition purposes that require performance only at a high rpm range. But it has too little torque at a low rpm range for street driving. HKS' Straight Junction Design accelerates exhaust gas with exhaust gas pressure and it pulls out combustion gas. Exhaust gas efficiency is improved with the design.
