HKS 89mm T=1.0mm Grommet Type Head Gasket | Toyota GR Corolla G16E-GTS (23+) (23002-AT006)

HKS 89mm T=1.0mm Grommet Type Head Gasket | Toyota GR Corolla G16E-GTS (23+) (23002-AT006)

23002-AT006

Out of stock

$310.00 USD
$310.00 USD
Sold out

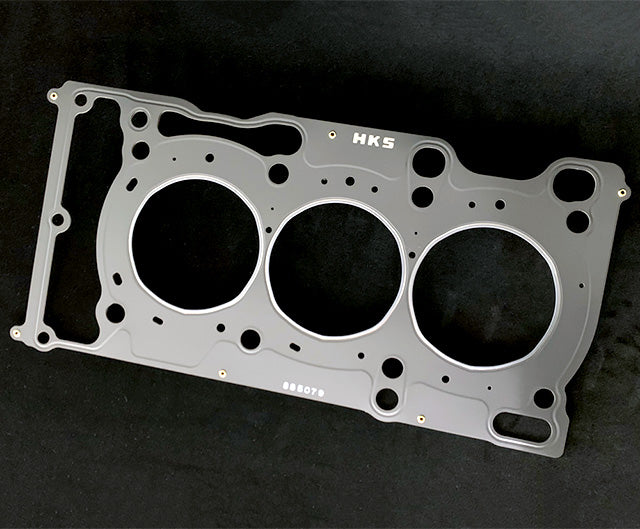

The HKS 89mm T=1.0mm Grommet Type Head Gasket is a high-performance replacement designed specifically for the Toyota GR Corolla G16E-GTS (23+). Crafted with a grommet-type construction, this gasket is engineered to withstand high combustion pressures and increased boost levels, making it ideal for tuned engines pushing beyond stock specifications. Its precise 89mm bore and 1.0mm thickness ensure a reliable seal under demanding conditions, preventing leaks and maintaining optimal compression. Built with quality materials, this gasket enhances engine durability and performance, providing peace of mind during aggressive driving or boosting scenarios.

Designed for the Toyota GR Corolla G16E-GTS engine from 2023 onward, this gasket is a direct replacement for the stock component, offering a straightforward bolt-on upgrade. It is suitable for applications requiring high-pressure sealing, such as performance tuning and forced induction setups. The gasket is intended for use in high-performance street and track vehicles where engine integrity is critical. Installation involves replacing the existing head gasket with this grommet-type version, ensuring a secure fit and reliable sealing. This product is ideal for enthusiasts seeking to maximize engine performance and reliability under increased boost conditions.

Overview

Looking for a gasket that can handle the power of the G16E-GTS engine in your GR YARIS, even when cranking up the boost? Look no further than our grommet-type gasket! Engineered to withstand high combustion pressure and increased boost, this gasket ensures a tight seal and reliable performance. Don't compromise on quality when pushing your car to the limit. Upgrade to our grommet-type gasket and experience peace of mind knowing your engine is protected under the most demanding conditions.

Applications
  • GR YARIS/G16E-GTS
Features
  • A grommet structure is employed at the bore sealing surface. The product incorporates the most suitable specifications for high-boost or high-combustion pressure, designed for drag races, time attacks, or harsh environment games.
  • A sealing limit has been improved by ensuring the surface pressure of the gasket. A strong gas sealing is ensured due to the structure in which the inner surface of the bore encloses the gasket base sheet with an integrated plate.
  • It put the shims at either end of the engine deck to apply the load evenly when tightening the head bolt to prevent the distortion of the cylinder head. Due to the grommet structure with high bore sealing performance, it also considers the deformation of the front and rear parts of the engine deck.
  • The upper and lower surfaces of the gasket use a plate with multiple coatings of synthetic rubber on a gasket base sheet with strength. The coating layer firmly bites into the fine uneven surface on the block deck surface and the bottom surface of the head, ensuring sealing performance without creating gaps. By providing a bead on the plate of this structure, the sealing performance and wear resistance are further enhanced, and the reliability of the outer circumference, around the bolt, and the oil passage is improved.
