HKS Hipermax S Coilovers - Mitsubishi Evolution 8/9 03-07
HKS Hipermax S Coilovers - Mitsubishi Evolution 8/9 03-07
SKU:80300-AM002
Couldn't load pickup availability
This set of suspensions is designed to replace the factory suspension-related shock absorber/dampers and springs. Building upon the 3 decades of suspension development and 9 years since the last version of the Hipermax IV GT release this series has unified the many different street-based Hipermax merits and further improved this new flagship series for the ultimate combination of driving performance and comfort performance, Driving Comfort. With exception of the circuit-specific HIpermax IV-SP series, all other series will be replaced with this all-mighty spec. Specifically developed to provide the ultimate in harmony between performance handling and control with supreme ride comfort yet capable of high-level performance on the circuit as well. With massive adjustability in ride height and damper settings, these items are an excellent choice for the daily driver to look and perform best under any kind of circumstance.
APPLICATION
- Mitsubishi Lancer Evolution 7/8/9 (2003, 2004, 2005, 2006, 2007)
FEATURES

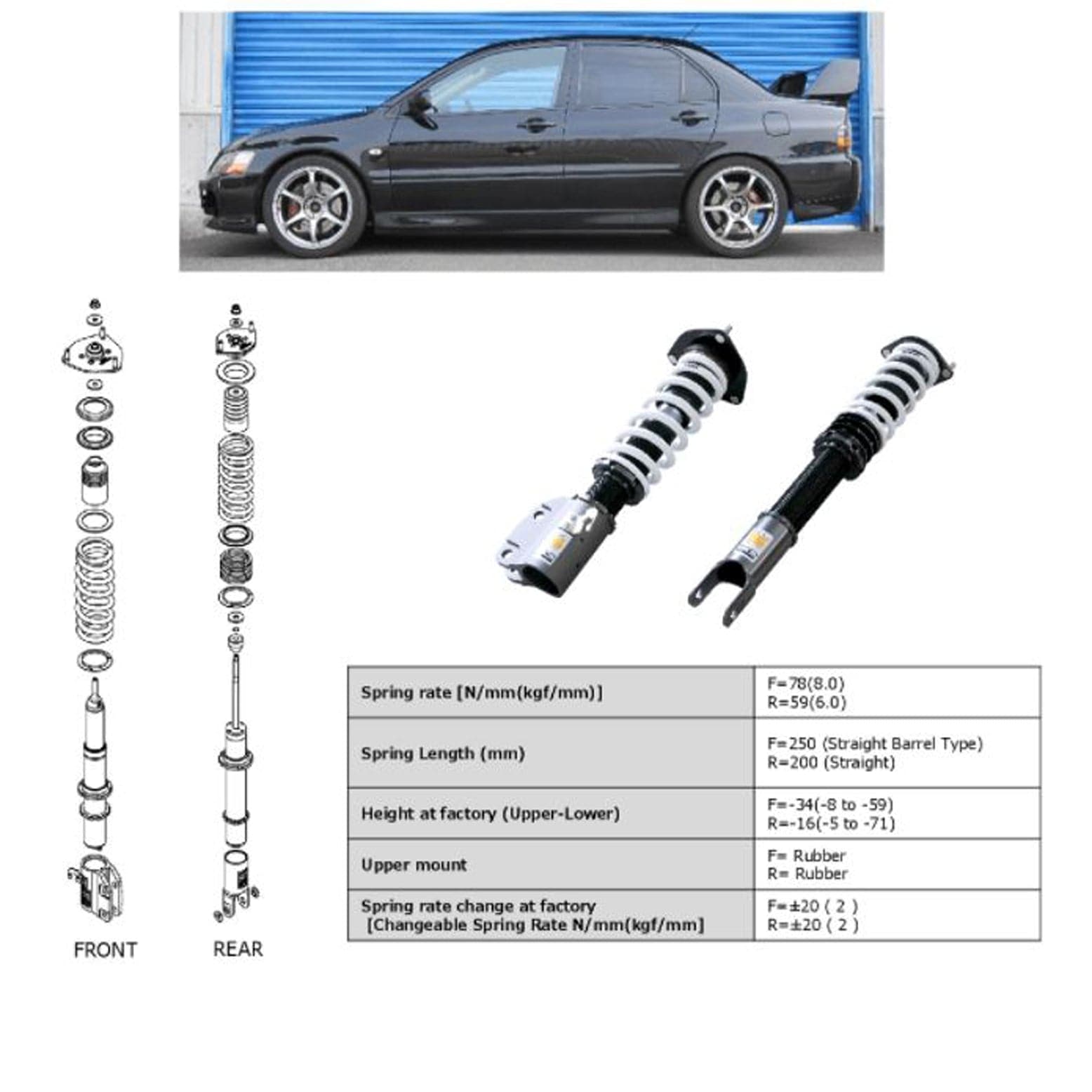

Series: Hipermax SSpring Rate N/mm (kgf/mm):
- Front: 78(8)
- Rear: 59(6)
- Front: 250 (Barrel)
- Rear: 200
- Front: ±20 ( 2 )
- Rear: ±20 ( 2 )
- Front: 888/476
- Rear: 693/373
- Note: Damping force is at piston speed 0.1m/sec.
Default position of Dial:
- Front: 15
- Rear: 15
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Height Adjustable Lower Bracket:
- Front: Yes
- Rear: Yes
Upper Mount:
- Front: Rubber Bush
- Rear: Rubber Bush
Damper Layout:
- Front: Inverted
- Rear: Normal
Damper/Spring Layout:
- Front: Coilover
- Rear: Coilover
Damping force adjustable with Wire:
- Front: N/A
- Rear: N/A
Helper Spring (Spring Rate N/mm):
- Front: N/A
- Rear: 19.8
Ride Height Specification
Maximum Adjustable Range High - Low (mm):
- Front: -8 ～ -59
- Rear: -5 ～ -71
Drivable Range High - Low (mm):
- Front: -8 ～ -59
- Rear: -5 ～ -71
