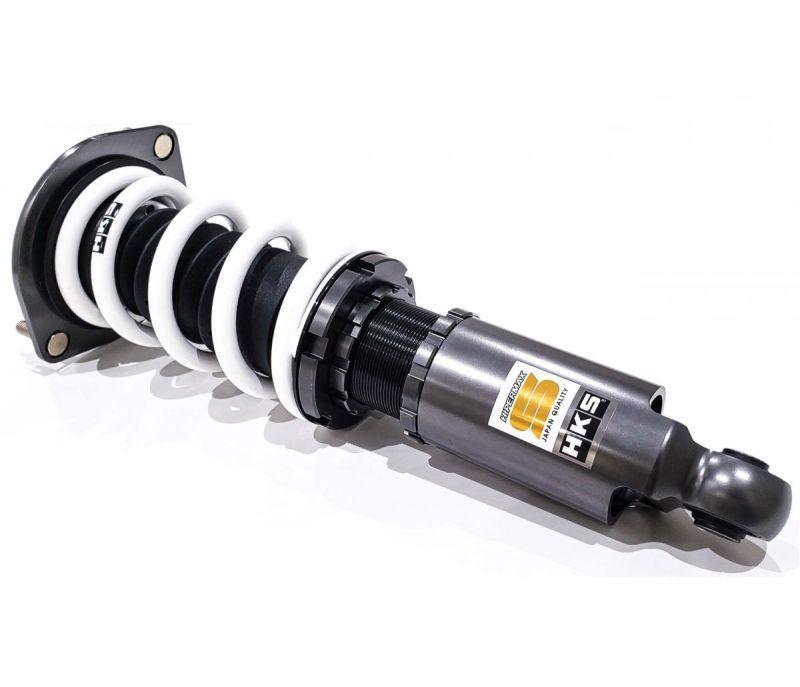

HKS Hipermax S Coilovers | Mazda Miata MX-5 ND (16+) (80300-AZ003)

HKS Hipermax S Coilovers | Mazda Miata MX-5 ND (16+) (80300-AZ003)

80300-AZ003

Out of stock

$1,995.00 USD
$1,995.00 USD
Sold out

The HKS Hipermax S Coilovers for the Mazda Miata MX-5 ND (2016 and newer) are a high-performance suspension upgrade designed to enhance handling and ride quality. This full kit integrates the latest developments from HKS, evolving the previous MAXIV GT Series with improved damping force characteristics, durability, and aesthetic appeal. Constructed with precision engineering, these coilovers feature spring rates of 39 N/mm (4.0 kgf/mm) at the front and 29 N/mm (3.0 kgf/mm) at the rear, providing a balanced combination of comfort and performance. The Hipermax S series is recognized as HKS's best ride suspension to date, offering superior control, stability, and responsiveness for spirited driving and track use.

Designed specifically for the Mazda Miata MX-5 ND models from 2016 onward, these coilovers are a direct bolt-on upgrade that replaces the factory suspension components. They are suitable for street driving, track days, and performance tuning, delivering adjustable damping and height settings to customize the vehicle's stance and handling characteristics. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Compatibility is optimized for models with the ND chassis, making these coilovers an ideal choice for enthusiasts seeking improved performance and ride quality without extensive modifications.

Overview

HIPERMAX S ND5RC Full Kit by HKS

HKS will integrate and renew the three existing MAXIV GT Series into HIPERMAX S. 9 years have passed since the launch of MAXIVGT, and during that time, we have developed new technologies. It will be a new series that has all three conventional model's characteristics, and been evolved by damping force characteristics, durability and beauty. The HIPERMAX S Series offers the best ride in HKS suspension history.

Features

  • Spring Rate [N/mm(kgf/mm)]: F=39(4.0) | R=29(3.0)
  • Spring Length (mm): F=220 (Straight Barrel Type) | R=250 (Straight Barrel Type)
  • Height at Factory (Upper-Lower): F=-43(0 to -84) | R=-48(0 to -66)
  • Upper Mount: F=Rubber | R=Rubber
  • Spring Rate Change at Factory [Changeable Spring Rate N/mm(kgf/mm)]: F=Not Recommended | R=Not Recommended

Benefits

  • Dual PVS
  • Wide Range Damping Force Adjustment Mechanism
  • Evolution of Bump Stop Rubber
  • Low Friction Technology
  • Single Tube
  • 30 Levels Adjustable Damping
  • Shock-Body Length Adjustable
  • Special Oil
  • PNE Coating
  • Dual Pre-Load Valve System
  • Aluminum Bracket
  • Rubber Upper Mount
  • Spec. Change Available
  • Overhaul Available

Please Note: Pictures for marketing purposes only, actual product may vary

Applications

  • 2016 - 2021 Mazda MX-5 Miata

What's In The Box?

  • 1 - HIPERMAX S ND5RC Full Kit

Warranty

  • Manufacturers Standard Warranty
