HKS Hipermax S Coilovers | Nissan GT-R R35 (08+) (80300-AN001)

HKS Hipermax S Coilovers | Nissan GT-R R35 (08+) (80300-AN001)

80300-AN001

In stock

$2,869.00 USD
$2,869.00 USD
Sold out

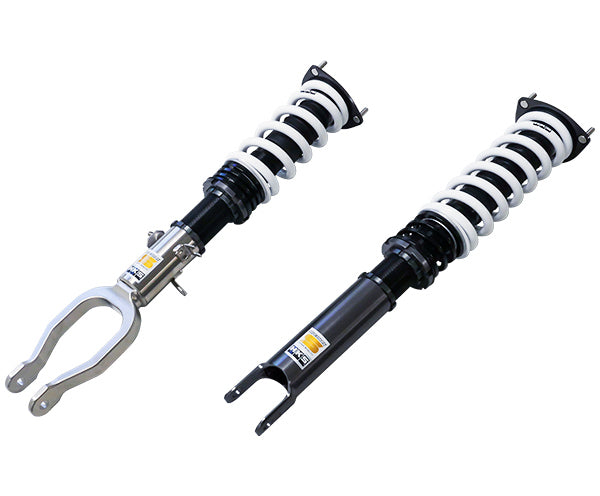

The HKS Hipermax S Coilovers for the Nissan GT-R R35 are high-performance suspension components designed to enhance both ride comfort and handling. Engineered to provide an optimal balance between street comfort and driving performance, these coilovers feature a spring rate of 157 N/mm (16 kgf/mm) at the front and 78 N/mm (8 kgf/mm) at the rear. Constructed with precision components, they deliver improved stability, responsiveness, and drivability across various driving conditions. The coilovers are designed to meet the demands of street driving while maintaining a focus on handling performance and peace of mind, making them suitable for enthusiasts seeking a versatile upgrade.

These coilovers are compatible with Nissan GT-R R35 models from 2007 to 2012, including the 2008+ variants. They are intended for street use, offering a direct bolt-on installation that replaces the factory suspension. The kit includes the necessary components for a complete upgrade, ensuring a straightforward installation process. Suitable for daily driving or spirited street use, these coilovers help improve ride quality and handling dynamics, providing a confident driving experience on various road surfaces.

Overview

Going beyond just ride comfort or handling performance, a new standard of "Driving Comfort" aims for comfort in ride but also in the peace of mind generated by handling performance and drivability . An uncompromising balance which delivers on all the demands of street driving.

*SPECIAL ORDER

Application

  • Nissan GT-R R35 (2007, 2008, 2009, 2010, 2011, 2012)

Specifications

Series: Hipermax SSpring Rate N/mm (kgf/mm):- Front: 157(16)- Rear: 78(8)Free Height (mm):- Front: 200- Rear: 250Recommended Range to change Spring Rate N/mm (kgf/mm):- Front: ±20 ( 2 )- Rear: ±20 ( 2 )Damper Force (Rebound/Damping):- Front: 1300/250- Rear: 700/160- Note: Damping force is at piston speed 0.1m/sec.Default position of Dial:- Front: 15- Rear: 15Damping Force Adjustment:- Front: 30 Steps- Rear: 30 StepsHeight Adjustable Lower Bracket:- Front: Yes- Rear: YesUpper Mount:- Front: Rubber Bush- Rear: Rubber BushDamper Layout:- Front: Normal- Rear: NormalDamper/Spring Layout:- Front: Coilover- Rear: CoiloverDamping force adjustable with Wire:- Front: No- Rear: YesHelper Spring (Spring Rate N/mm):- Front: 19.8- Rear: 19.8Ride Height Specification --Maximum Adjustable Range High - Low (mm):-- Front: 0 ~ -82-- Rear: 0 ~ -58-Drivable Range High - Low (mm):-- Front: 0 ~ -70-- Rear: 0 ~ -35
