HKS Full Intercooler Kit w/ Piping | Honda Civic Type R FL5 (23+) (13001-AH007)

HKS Full Intercooler Kit w/ Piping | Honda Civic Type R FL5 (23+) (13001-AH007)

13001-AH007

Out of stock

$1,531.76 USD
$1,550.00 USD $1,531.76 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

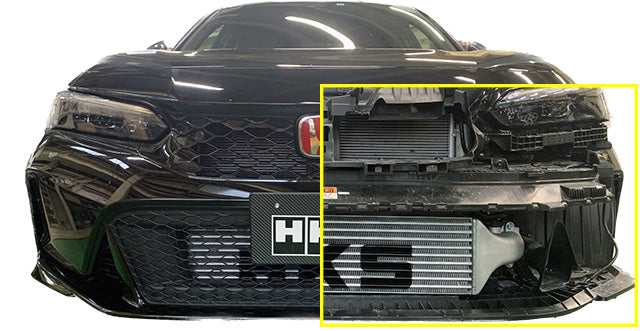

The HKS Full Intercooler Kit with Piping for the Honda Civic Type R FL5 (2023-2026) is a high-performance upgrade designed to replace the stock intercooler core and piping. Featuring an enlarged core with a 22.4% increase in surface area, this kit significantly enhances cooling efficiency, making it ideal for vehicles with increased boost levels or turbo modifications. Constructed with advanced engineering techniques, the intercooler core improves heat dissipation, reducing intake air temperatures and boosting overall engine performance. The kit is engineered for durability and optimal airflow, ensuring consistent performance under demanding conditions.

This intercooler kit is specifically designed for 2023-2026 Honda Civic Type R models, providing a direct replacement for the OEM components. It offers a straightforward bolt-on installation, suitable for enthusiasts seeking improved cooling for street or track use. The kit includes the intercooler core and piping, ensuring a complete upgrade. Compatible with turbocharged setups, this intercooler enhances power delivery and reliability during high-performance driving scenarios, making it an excellent choice for those upgrading their vehicle’s forced induction system.

Overview

This kit serves as a direct replacement for the stock intercooler core and piping. With an enlarged core size, it is expertly engineered using advanced techniques to significantly improve cooling efficiency. It's an ideal upgrade, especially for vehicles undergoing boost increases or turbo upgrades.

Applications

  • Honda Civic Type R (2023, 2024, 2025, 2026)

Features

Intercooler Core

  • A huge 22.4% increase in core’s area leads to immense improvement in cooling.
  • The OEM core does not provide sufficient cooling capacity when boosting up, with increased core capacity it will be compatible with everything from boosting up to turbo upgrade.
  • The core is designed to be also installed with OEM piping

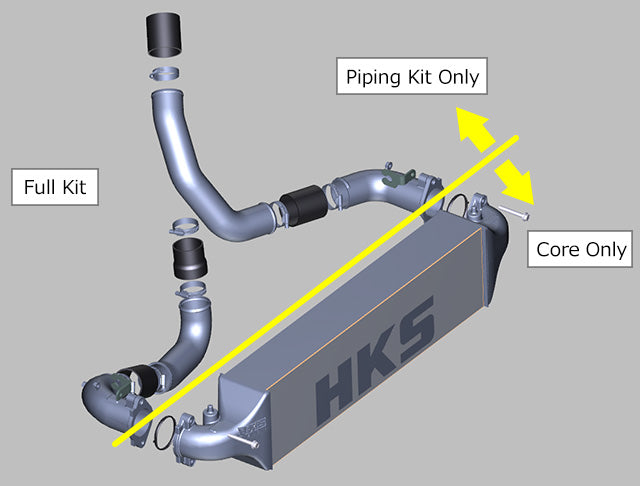

Piping Kit

  • Upon enlarging the pipe diameter and smoothing out the inner design in comparison to OEM we are able to increase power output.
  • The OEM hose is prone to expand under high boost, but aluminum pipe has completely solved the issue of pressure loss due to hose expansion.
  • The aluminum pipe is given a mirror buff finish, and the cast pipe and core feature the HKS logo, which gives a fantastic dress-up look.
