HKS Grommet Type Head Gasket Kit, Super Cooling (1.2mm) - Nissan Skyline GT-R R32/R33/R34 RB26DETT

Upgrade your engine's performance with the HKS RB26 Grommet Head Gasket. Designed with a 1.2mm thickness, it ensures optimal sealing and durability for your high-performance needs. Perfect for enhancing the reliability and efficiency of your RB26 engine.

Note

• The product includes gaskets for an exhaust or intake manifold and a throttle.
• Picture is generic. Actual products may vary.

Applications

• Nissan RB26

Concept

• By effectively cooling the cylinder head area with widened water passage holes,  the product achieved to advance knock ignition limit.
• Ensuring sealing by using the grommet type has the advantage of preventing the gasket from failing.
• Great for higher horsepower and circuit driving.
• Very effective in cooling the cylinder head.
• While retaining the sealing effect, the holes for water to pass through were widened to the maximum extent possible to increase the amount of cooling water passing through the cylinder head.
• In-house testing showed that the temperature variation between cylinders was also reduced.
• The grommet structure improved the sealing effect.
• Even higher sealing effect can be obtained by using with separately sold strengthened head bolts such as ARP.
• Option of thicker 1.6mm gasket for surface grinding of cylinder head when the time of overhauls.

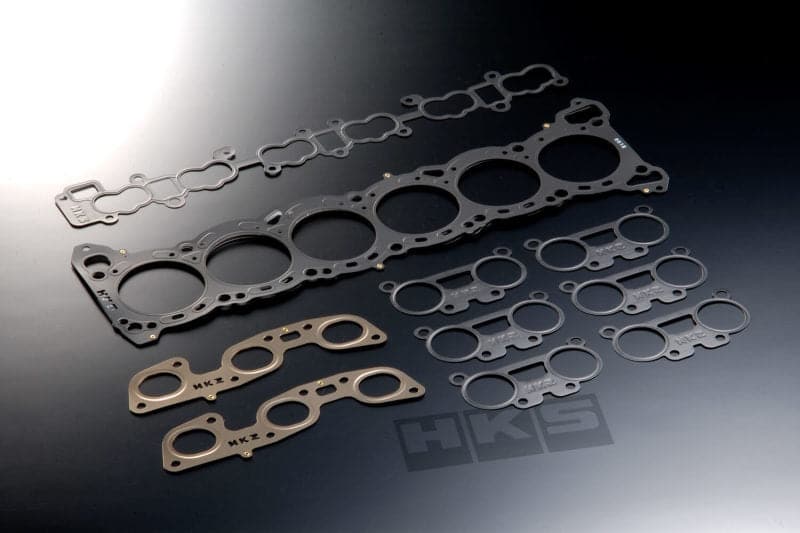

Kit includes

• Grommet type Head Gasket x 1
• Exhaust Manifold Gasket x 2
• Intake Manifold Gasket x 1
• Throttle Gasket x 6
