HKS Rtype O/C | JZX100 (15004-AT004)

HKS Rtype O/C | JZX100 (15004-AT004)

15004-AT004

Out of stock

$1,130.00 USD
$1,130.00 USD $1,130.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

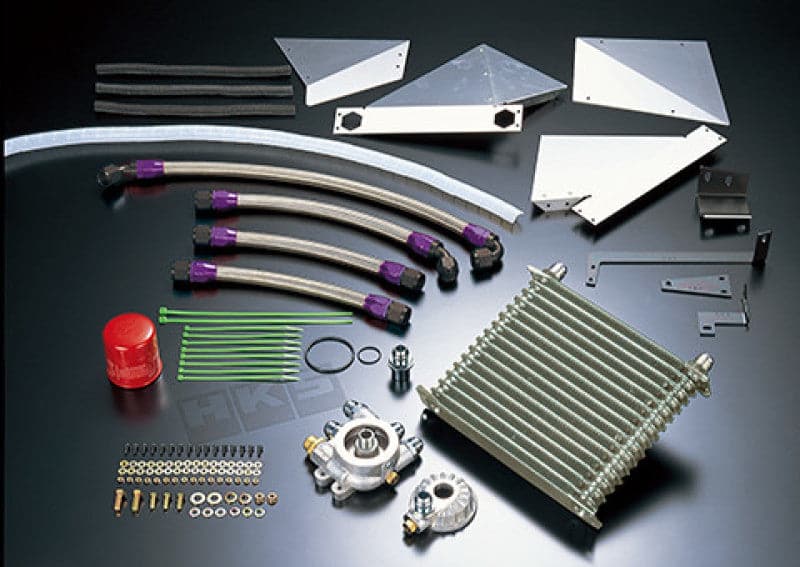

The HKS Rtype Oil Cooler Kit for the JZX100 is a high-performance cooling solution designed to regulate engine oil and water temperatures effectively. Engineered for direct bolt-on installation, this kit features a highly efficient inner-fin oil cooler core that provides excellent heat dissipation. Its increased oil volume and strategic mounting position enhance cooling capacity, ensuring optimal engine operation under demanding conditions. The kit is available in standard and oil block relocation configurations, offering improved clearance and accessibility. Equipped with sensor ports on each oil block, it allows for precise temperature monitoring and integration with existing engine management systems. Constructed with quality materials, this oil cooler kit delivers durability and consistent performance, making it suitable for both street and track applications.

Designed specifically for the Toyota Chaser JZX100 model, this kit fits vehicles from 1996 to 2001 with the 1JZ-GTE engine. It serves as a direct replacement upgrade for factory oil cooling components, providing enhanced thermal management during high-performance driving. The kit is ideal for street enthusiasts, track racers, or anyone seeking improved engine cooling efficiency. Installation involves straightforward bolt-on procedures, with included components ensuring a complete setup. The strategic placement and design of the oil cooler core optimize airflow and heat transfer, making it a reliable choice for maintaining optimal engine temperatures during extended or aggressive driving sessions.

Overview

This kit is a direct bolt-on application designed to maintain optimal engine oil and water temperatures. With an increased engine oil volume, the ideal size of the highly efficient inner-fin design oil cooler core, and a strategic mounting location, this kit offers excellent cooling properties. Depending on the application, the kits are available in standard and oil block relocation layouts for improved clearance and accessibility. Each oil block comes equipped with sensor ports, allowing for easy adaptation to most aftermarket oil pressure and temperature gauges. Using this kit can prolong the life of your oil and, in turn, enhance the longevity of internal engine components, especially in harsh driving environments. Most blocks include a built-in thermostat to regulate the oil temperature, enabling the engine to warm up faster. Custom mounts and brackets are specifically designed for each application, ensuring a high-quality, durable, and efficient setup.

Application

  • Toyota Mark II/Chaser/Cresta JZX100 1JZ-GTE (1996, 1997, 1998)
    Toyota Mark II/Chaser/Cresta JZX100 1JZ-GTE (1998, 1999, 2000)

    Features

    Oil Temperature controlled by Thermostat:HKS Oil Coolers use high performance cooling cores and so there is the possibility of overcooling which is prevented with the use of a thermostat (some vehicles excluded). This thermostat has high response and so is able to react quickly to changing oil temperatures. Once oil temperature reach the set levels, the oil will flow through the cooler core but bypass it when temperatures drop below. This allows engine oil to be maintained at the ideal temperature.- Thermostat Opening Temperature 70C (+/-3C)- Thermostat Full Open Temperature 80C (+/-3C)- Oil temperature fitting M12 x P1.25 (R Type Only) Oil pressure fitting PT1/8

    Thermostat relief feature allows for safe operation in times of emergency:In cases where the core or lines become blocked and oil pressure rises, the thermostat will bypass the core to maintain correct oil pressure and prevent damage to the oil lines and fittings.

    Stainless braided hoses chosen for increased durability:Hose lengths and fitting types are tailored to each vehicle application to ensure easy and tidy fitting whilst preventing connection errors. HKS has chosen Aeroquip to supply oil cooler hose which can offer form, function and durability with their wealth of experience and world famous reputation (Excluded some models)
