HKS S-TYPE O/C Kit | Suzuki Swift ZC33S (15004-AS102)
HKS S-TYPE O/C Kit | Suzuki Swift ZC33S (15004-AS102)
SKU:15004-AS102
Out of stock
Couldn't load pickup availability
The HKS S-TYPE Oil Cooler Kit for the Suzuki Swift ZC33S is a high-performance cooling solution designed specifically for turbocharged K14C engines. This air-cooled oil cooler features an optimized core size and layout to effectively manage oil temperatures during demanding driving conditions, such as spirited driving on winding roads or circuit racing. By maintaining lower oil temperatures, this kit enhances engine reliability and performance, especially under high-stress scenarios. Constructed with durable materials and engineered for efficient heat dissipation, it ensures consistent oil cooling and helps prevent thermal breakdown, contributing to improved engine longevity and sustained power output.

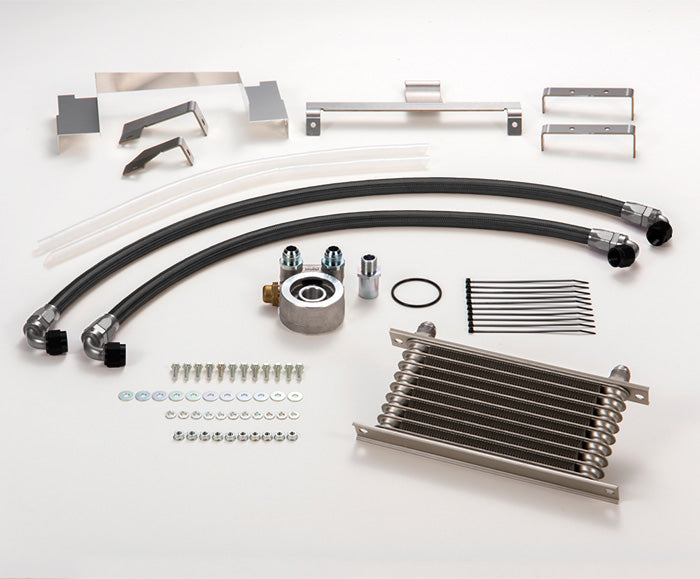

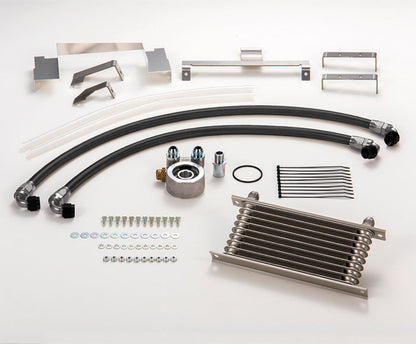

This oil cooler kit is a direct-fit upgrade for the Suzuki Swift ZC33S equipped with the K14C turbo engine. It is intended for use in high-performance applications, including track days, spirited street driving, and other demanding driving environments. The kit includes all necessary components for installation, providing a straightforward bolt-on process. Designed to operate effectively in high-temperature conditions, this cooler helps maintain optimal oil temperatures, ensuring consistent engine performance and protection during extended or aggressive driving sessions.
Share
Overview
Overview
Designed exclusively for the K14C turbo-powered Swiss Sport, this HKS Oil Cooler Kit delivers optimal cooling for high-performance driving. While the stock 1.4L engine produces an impressive 140 horsepower with a standard water-cooled oil cooler, intense driving conditions—such as winding roads or circuit runs—can quickly raise oil temperatures beyond 120°C, impacting performance and reliability. This advanced air-cooled oil cooler features a carefully optimized core size and layout, as well as a specialized air guide for efficient heat exchange. With this setup, your engine’s oil temperature remains at an ideal level, allowing you to enjoy extended sports driving with peace of mind.
Note: Special Order
Applications
- Swift Sport ZC33S
Features

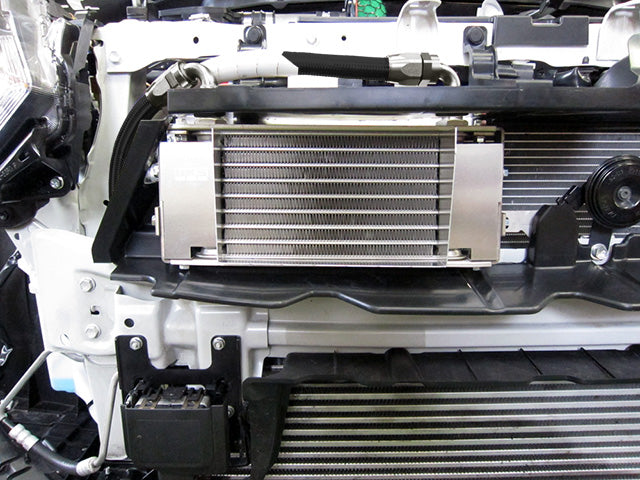

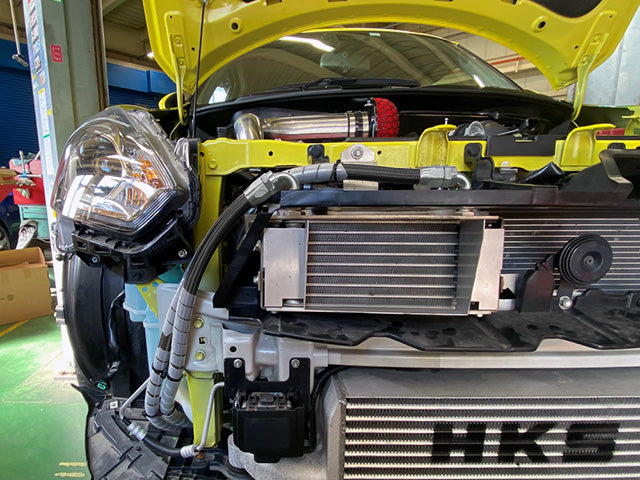

- Due to space limitations inside the front bumper, the core was mounted in the space in front of the radiator, so a small, thin 32mm 9-stage oil cooler core was used to minimize spoilage of the radiator's original cooling capacity.
- The air guide is specially designed to maximize the heat exchange capacity of the oil cooler core.
- Uses high pressure compatible black mesh hose
- Built-in thermostat to prevent overcooling when cold
- There is one PT1/8 sensor mounting hole in the filter mount.
- Designed to minimize vehicle modification for installation (only a portion of the plastic radiator guide needs to be cut)
