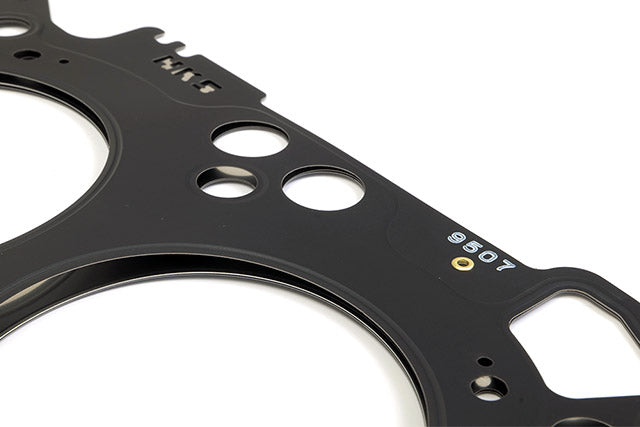

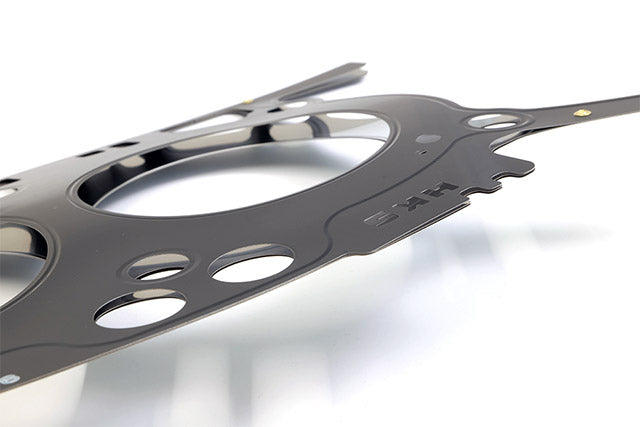

HKS Stopper Type Head Gasket 0.7mm | Toyota GR86 (22+) / Subaru BRZ (22+) FA24 (23001-AT005)

For FA24 NA setups, a thin stopper type gasket is additionally available.

Application

• for FA24

Features

• Stopper type gasket with a high compression ratio design is now available for NA setups.
• The thickness is set at 0.7mm to increase compression ratio, thinner than the grommet type (t=0.8/1.2) already on the market.
• Thickness is calculated in consideration of surface grinding during overhaul and pivot of the large-diameter bore piston.
• High sealing performance is ensured by using a separate stopper structure for the bore seal section.
• Head and cylinder surfaces are coated with a special coating to improve sealing between the head and cylinder.
