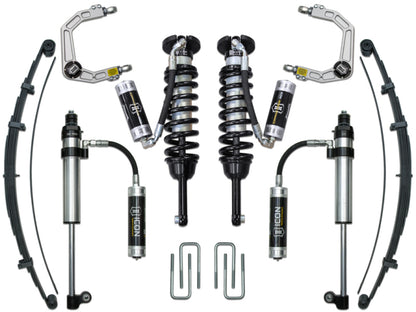

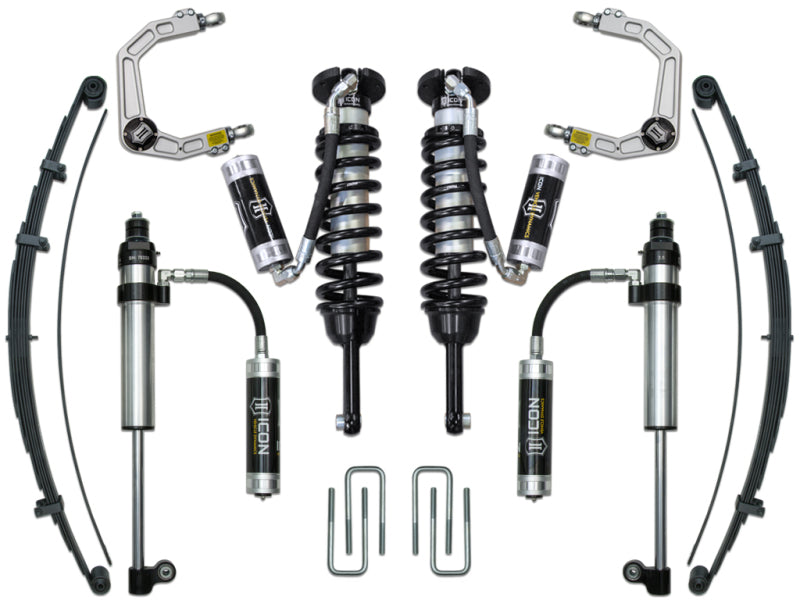

ICON 05-15 Toyota Tacoma 0-3.5in/16-17 Toyota Tacoma 0-2.75in Stage 8 Suspension System w/Billet Uca
ICON 05-15 Toyota Tacoma 0-3.5in/16-17 Toyota Tacoma 0-2.75in Stage 8 Suspension System w/Billet Uca
SKU:K53008
In stock
Regular price
$5,679.23 USD
Regular price
$5,679.23 USD
Sale price
$5,679.23 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
The ICON Stage 8 Suspension System is a comprehensive upgrade designed for Toyota Tacoma models to enhance off-road performance and ride quality. It features vehicle-specific tuned 2.5 Series Extended Travel coilover shocks with remote reservoirs, providing superior cooling and consistent damping during spirited driving. The coilovers are height adjustable from 0-3.5 inches for 2005-2015 models or 0-2.75 inches for 2016-2023 models, enabling larger, more aggressive wheel and tire setups. The system includes ICON-engineered coil springs for improved vehicle feel across the suspension travel, along with a billet aluminum upper control arm kit that corrects front-end geometry, increases camber and caster adjustment, and enhances suspension component clearance. To improve rear ride quality and increase droop travel, the kit incorporates ICON RXT multi-rate leaf springs with an exchangeable additional leaf, allowing for a 10-20% increase in spring rate to accommodate extra weight or unloaded driving conditions. The remote reservoir shocks feature a side-mount eyelet, reducing collapsed length and extending extension, while a large 10-inch reservoir aids in heat dissipation and shock fade resistance.
Designed for 2005-2015 Toyota Tacoma models with 0-3.5-inch lift or 2016-2023 models with 0-2.75-inch lift, this Stage 8 Suspension System is a bolt-on upgrade for off-road enthusiasts seeking improved suspension travel, handling, and durability. It is ideal for trucks used in off-road, overlanding, or heavy-duty applications, providing increased droop and wheel travel for better articulation. The kit includes coilover shocks, a billet upper control arm, and multi-rate leaf springs, all engineered to work together seamlessly. Installation is straightforward, with components designed to fit directly into the factory mounting locations, ensuring a secure and reliable upgrade. This system enhances both on- and off-road performance, making it suitable for aggressive driving, towing, or carrying heavy loads.
Share
Overview
Overview

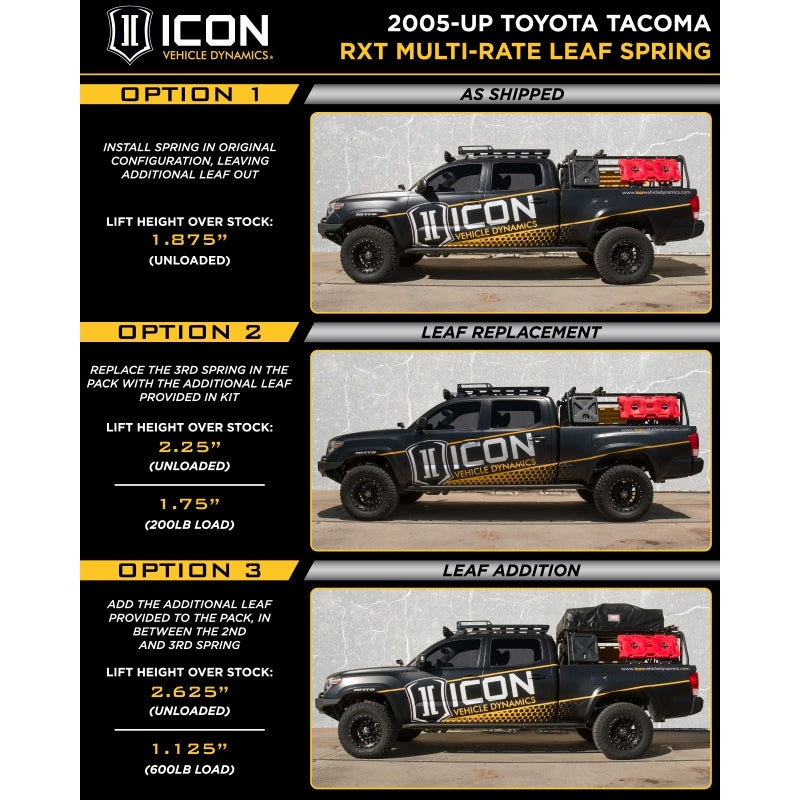

The Stage 8 system includes vehicle-specific tuned 2.5 Series Extended Travel coilover shocks featuring a remote reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” for 2005-2015 models or 0-2.75" for 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. Used in conjunction with the included ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. To increase the ride quality of the truck and gain additional droop travel, the ICON RXT multi-rate leaf springs are added to the rear. Designed with an additional leaf (included with kit) that can be exchanged or added to the pack to yield an additional 10-20% spring rate, this leaf spring is perfect for drivers seeking improved rear ride quality in an “unloaded” vehicle as well as those that are have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires, parts, or other additions. To compliment this increase in rear wheel travel the Stage 8 system includes a unique 2.5 Aluminum Series remote reservoir shock that features a side-mount eyelet that making it shorter in collapsed length, longer at extension, and still fits in the factory mounting location. A large ten-inch remote reservoir was added to aid in heat dissipation and resist shock fade during spirited driving.
