| Year | Make | Model |
|---|---|---|
| 2004 - 2023 | Toyota | Tacoma |
1
/
of
4

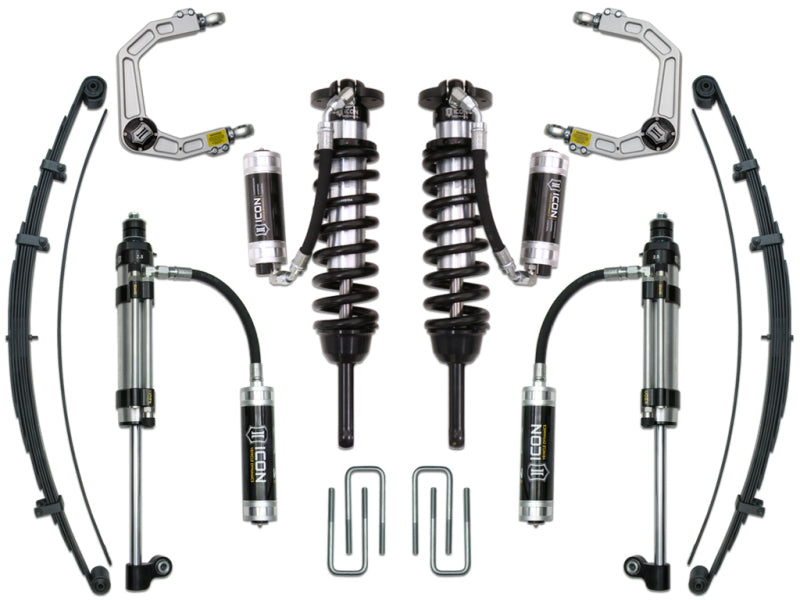

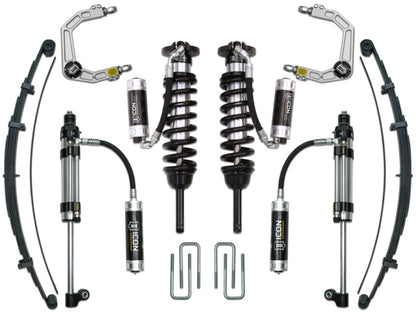

ICON 05-15 Toyota Tacoma 0-3.5in/16-17 Toyota Tacoma 0-2.75in Stg 10 Suspension System w/Billet Uca
ICON 05-15 Toyota Tacoma 0-3.5in/16-17 Toyota Tacoma 0-2.75in Stg 10 Suspension System w/Billet Uca
SKU:K53010
In stock
Regular price
$6,913.53 USD
Regular price
$6,913.53 USD
Sale price
$6,913.53 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
The ICON Stage 10 suspension system for Toyota Tacoma is a high-performance upgrade designed to enhance off-road capability and ride quality. It features vehicle-specific tuned 2.5 Series Extended Travel coilover shocks with remote reservoirs and CDCV technology for superior cooling and damping control. The coilovers are height adjustable from 0-3.5 inches for 2005-2015 models and 0-2.75 inches for 2016-2023 models, allowing for larger wheel and tire setups. The system includes ICON-engineered coil springs for improved vehicle feel and durability, as well as externally adjustable CDC valves that provide 10 levels of compression damping. When paired with the included ICON billet aluminum upper control arm, the setup offers corrected front-end geometry, increased camber and caster adjustment, and enhanced suspension clearance. To improve rear ride quality and droop travel, the kit incorporates ICON RXT multi-rate leaf springs with an exchangeable additional leaf, suitable for vehicles carrying extra weight or loaded with accessories.
Designed for 2005-2015 and 2016-2023 Toyota Tacoma models, this Stage 10 suspension system is a comprehensive upgrade for off-road enthusiasts and daily drivers seeking improved handling and ride comfort. It is a bolt-on kit that directly replaces factory components, providing increased suspension travel and better articulation. The included components—coilover shocks, upper control arms, and leaf springs—are engineered to optimize front and rear suspension performance, especially in demanding off-road conditions. This system is ideal for drivers looking to enhance their Tacoma’s off-road capability, accommodate larger tires, or improve overall vehicle stability and control. The kit is suitable for trucks used in off-road adventures, overlanding, or heavy payload applications, ensuring durability and performance under demanding conditions.
Share
Overview
Overview

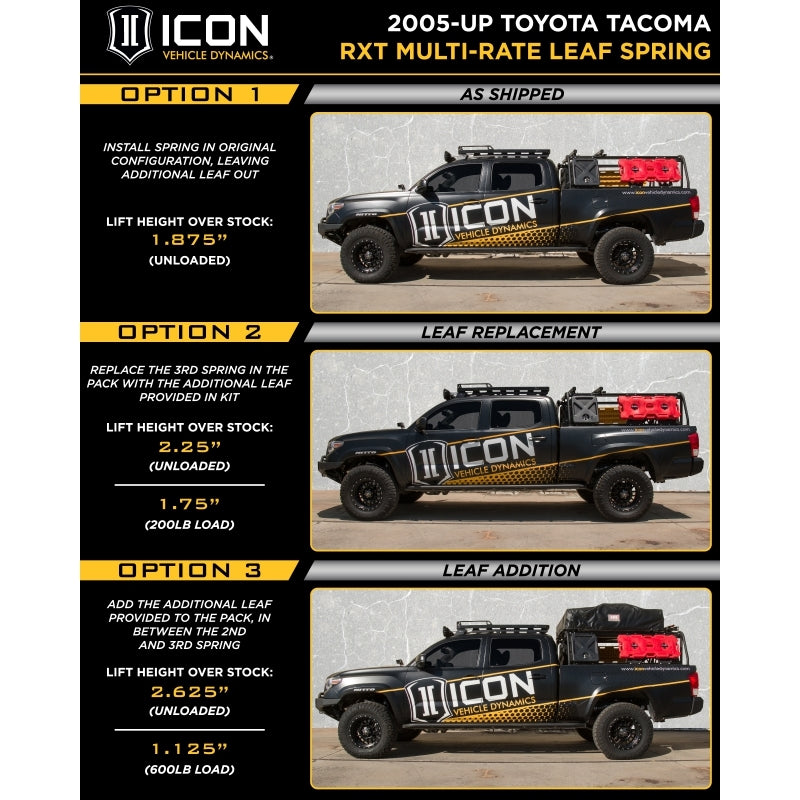

The Stage 10 system includes vehicle-specific tuned 2.5 Series Extended Travel coilover shocks featuring a remote reservoir with CDCV for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. These coilovers are also height adjustable from 0-3.5” for 2005-2015 models or 0-2.75" for 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. Used in conjunction with the included ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. To increase the ride quality of the truck and gain additional droop travel, the ICON RXT multi-rate leaf springs are added to the rear. Designed with an additional leaf (included with kit) that can be exchanged or added to the pack to yield an additional 10-20% spring rate, this leaf spring is perfect for drivers seeking improved rear ride quality in an “unloaded” vehicle as well as those that are have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires, parts, or other additions.
