ICON 05-15 Toyota Tacoma 0-3.5in/16-17 Toyota Tacoma 0-2.75in Stg 8 Suspension System w/Tubular Uca
ICON 05-15 Toyota Tacoma 0-3.5in/16-17 Toyota Tacoma 0-2.75in Stg 8 Suspension System w/Tubular Uca
SKU:K53008T
In stock
Regular price
$5,099.23 USD
Regular price
$5,099.23 USD
Sale price
$5,099.23 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments

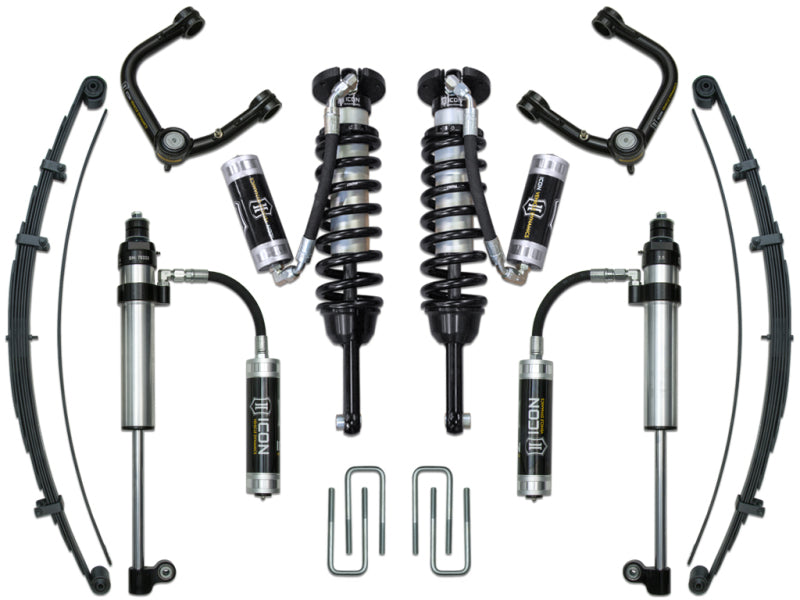

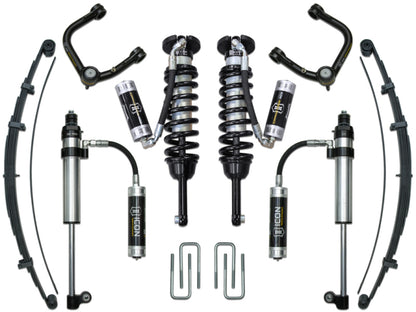

The ICON Stage 8 suspension system for Toyota Tacoma is a comprehensive upgrade designed to enhance off-road performance and ride quality. It features vehicle-specific tuned 2.5 Series Extended Travel coilover shocks with remote reservoirs, providing exceptional cooling and consistent damping during spirited driving. The coilovers are height adjustable from 0-3.5 inches for 2005-2015 models and 0-2.75 inches for 2016-2023 models, enabling larger, more aggressive wheel and tire setups. The system includes ICON-engineered coil springs for improved vehicle feel across the suspension travel. Additionally, the kit incorporates an ICON tubular upper control arm to correct front-end geometry, increase caster, and improve suspension component clearance, resulting in better handling and durability. To further enhance ride quality and droop travel, the system includes ICON RXT multi-rate leaf springs with an exchangeable additional leaf, allowing for a 10-20% increase in spring rate. The package also features a 2.5 Aluminum Series remote reservoir shock with a side-mount eyelet, designed to fit factory mounting points, with a large 10-inch reservoir to dissipate heat and prevent shock fade during demanding off-road use.
This suspension system is designed specifically for 2005-2015 and 2016-2023 Toyota Tacoma models, covering a wide range of chassis and engine configurations. It is ideal for off-road enthusiasts seeking increased ground clearance, improved wheel travel, and enhanced handling capabilities. The kit is a bolt-on upgrade that includes coilover shocks, upper control arms, and rear leaf springs, providing a complete suspension overhaul. Suitable for off-road adventures, trail riding, and aggressive driving, this system allows for larger tires and improved articulation while maintaining ride quality. Installation is straightforward for those familiar with suspension work, and the components are engineered to work seamlessly with the vehicle’s existing mounting points, ensuring a reliable and durable upgrade for demanding off-road use.
Share
Overview
Overview
The Stage 8 system includes vehicle-specific tuned 2.5 Series Extended Travel coilover shocks featuring a remote reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” for 2005-2015 models or 0-2.75" for 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. Used in conjunction with the included ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. The included ICON tubular upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. To increase the ride quality of the truck and gain additional droop travel, the ICON RXT multi-rate leaf springs are added to the rear. Designed with an additional leaf (included with kit) that can be exchanged or added to the pack to yield an additional 10-20% spring rate, this leaf spring is perfect for drivers seeking improved rear ride quality in an “unloaded” vehicle as well as those that are have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires, parts, or other additions. To compliment this increase in rear wheel travel the Stage 8 system includes a unique 2.5 Aluminum Series remote reservoir shock that features a side-mount eyelet that making it shorter in collapsed length, longer at extension, and still fits in the factory mounting location. A large ten-inch remote reservoir was added to aid in heat dissipation and resist shock fade during spirited driving.
