ICON 05-15 Toyota Tacoma 0-3.5in/2016+ Toyota Tacoma 0-2.75in Stg 3 Suspension System w/Billet Uca

ICON 05-15 Toyota Tacoma 0-3.5in/2016+ Toyota Tacoma 0-2.75in Stg 3 Suspension System w/Billet Uca

K53003

In stock

$3,836.75 USD
$3,836.75 USD $3,836.75 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ICON Stage 3 suspension system for Toyota Tacoma is a high-performance upgrade designed for serious off-road and on-road driving. It features vehicle-specific tuned 2.5-inch extended travel coilover shocks with internal reservoirs for enhanced cooling and ICON-engineered coil springs that provide superior vehicle feel across the suspension range. The system offers height adjustability from 0 to 3.5 inches for 2005-2015 models and 0 to 2.75 inches for 2016+ models, enabling larger, more aggressive wheel and tire setups. When combined with ICON upper control arms, it increases front droop travel and improves overall suspension geometry, camber, and caster. The included ICON Delta Joint replaces OE ball joints for full bump and droop travel without bind, while the rear Add-A-Leaf Kit lowers spring rates by approximately 10% and adds 1.5 inches of rear lift. ICON 2.0 Aluminum Series remote reservoir shocks balance performance front-to-rear, making this system ideal for enhanced off-road capability and ride quality.

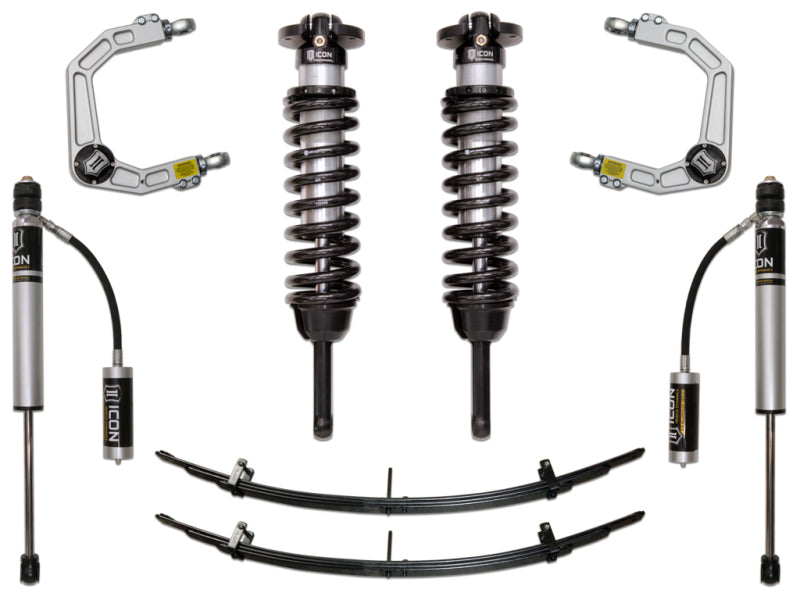

Designed for 2005-2015 and 2016+ Toyota Tacoma models, this Stage 3 suspension system is a comprehensive upgrade for drivers seeking improved vehicle control, durability, and off-road performance. It is compatible with Tacoma trucks equipped with the specified chassis and suspension configurations, serving as a direct bolt-on replacement for factory components. The kit includes coilover shocks, upper control arms, Delta Joints, and rear Add-A-Leafs, providing a complete suspension overhaul. Suitable for off-road enthusiasts, daily drivers, and those looking to increase their truck’s capability, this system enhances wheel travel, damping, and ride comfort while accommodating larger tires and aggressive wheel setups. Proper installation and vehicle-specific tuning ensure optimal performance across various terrains.

Overview

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5” Extended Travel coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. When used with an ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. ICON 2.0 Aluminum Series Remote Reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
