ICON 05-15 Toyota Tacoma 0-3.5in/2016+ Toyota Tacoma 0-2.75in Stg 4 Suspension System w/Billet Uca

ICON 05-15 Toyota Tacoma 0-3.5in/2016+ Toyota Tacoma 0-2.75in Stg 4 Suspension System w/Billet Uca

K53004

In stock

$4,320.35 USD
$4,320.35 USD $4,320.35 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ICON Stage 4 suspension system for Toyota Tacoma is a high-performance upgrade designed for serious off-road and on-road driving. It features vehicle-specific tuned 2.5-inch extended travel coilover shocks with remote reservoirs for enhanced cooling and durability, along with ICON-engineered coil springs that provide superior vehicle feel across the suspension travel. The system allows height adjustments from 0 to 3.5 inches for 2005-2015 models and 0 to 2.75 inches for 2016+ models, enabling the use of larger, more aggressive wheels and tires. When combined with ICON upper control arms, it increases front droop travel and improves front-end geometry, camber, and caster. The included ICON billet aluminum upper control arm kit enhances suspension performance and clearance, while the serviceable ICON Delta Joint replaces OE ball joints for full bump and droop travel without bind. The rear includes an Add-A-Leaf Kit that lowers spring rate for a more compliant ride and adds 1.5 inches of rear lift, complemented by ICON 2.0 Aluminum Series remote reservoir shocks that balance front and rear performance.

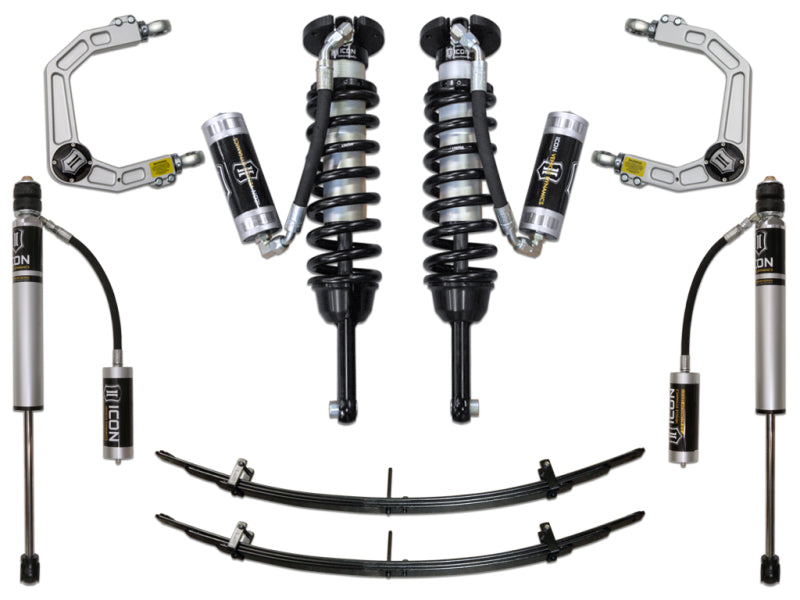

Designed for 2005-2023 Toyota Tacoma models, this Stage 4 suspension system is suitable for drivers seeking improved off-road capability and ride quality on various terrains. It is a bolt-on upgrade that replaces factory components, providing increased wheel travel, damping, and vehicle control. The kit includes coilover shocks, upper control arms, rear add-a-leaf springs, and rear shocks, making it a comprehensive solution for enhancing suspension performance. Ideal for off-road enthusiasts, daily drivers, and those looking to upgrade their Tacoma’s handling and stability, this system ensures a durable, high-quality fitment that maximizes vehicle capabilities both on and off the pavement.

Overview

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 4 system includes vehicle-specific tuned 2.5” Extended Travel coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. When used with an ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. ICON 2.0 Aluminum Series Remote Reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
