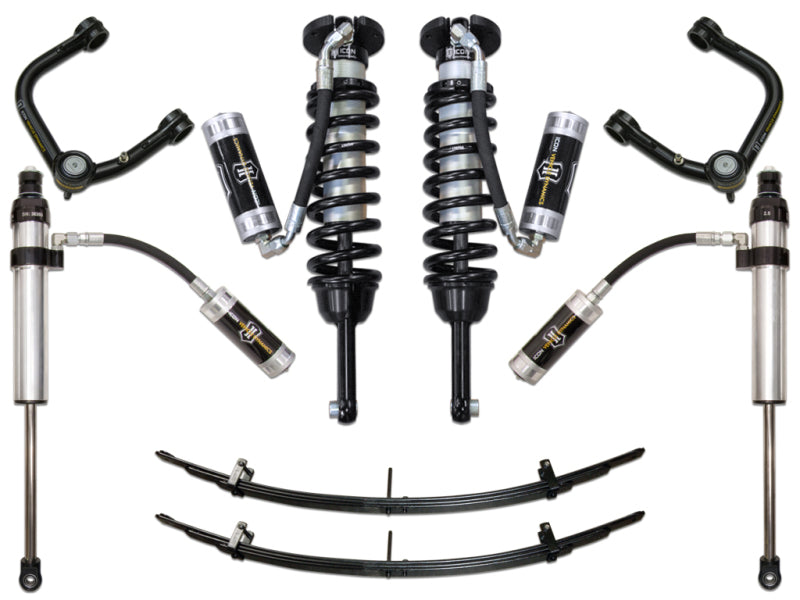

ICON 05-15 Toyota Tacoma 0-3.5in/2016+ Toyota Tacoma 0-2.75in Stg 5 Suspension System w/Tubular Uca
ICON 05-15 Toyota Tacoma 0-3.5in/2016+ Toyota Tacoma 0-2.75in Stg 5 Suspension System w/Tubular Uca
SKU:K53005T
In stock
Regular price
$4,348.65 USD
Regular price
$4,348.65 USD
Sale price
$4,348.65 USD
Unit price
/
per
Couldn't load pickup availability
â–¶ Vehicle Fitments
The ICON Stage 5 suspension system for Toyota Tacoma is a high-performance upgrade designed to enhance off-road and on-road capabilities. It features vehicle-specific tuned 2.5-inch Extended Travel coilover shocks with remote reservoirs for superior cooling and damping, along with ICON-engineered coil springs that improve vehicle feel across the travel range. The system offers adjustable lift from 0 to 3.5 inches for 2005-2015 models and 0 to 2.75 inches for 2016+ models, enabling larger wheel and tire setups. When combined with ICON upper control arms, it increases front droop travel and corrects front-end geometry, while the ICON Delta Joint replaces OE ball joints for full suspension articulation and reduced bind. The included rear Add-A-Leaf Kit lowers the rear spring rate by approximately 10% and adds 1.5 inches of lift, balancing ride quality and performance.
Designed for 2005-2015 and 2016+ Toyota Tacoma models, this Stage 5 suspension system is suitable for both street and off-road use, providing improved vehicle control, ride quality, and durability. It is a bolt-on upgrade that replaces factory components with high-performance parts, including tubular upper control arms and remote reservoir shocks for the rear. The kit enhances the truck’s capability for aggressive wheel and tire combinations, making it ideal for serious off-road drivers and enthusiasts seeking a reliable, adjustable suspension upgrade. Installation involves replacing existing suspension components with the included parts, ensuring a precise fit for the specified model years and configurations.
Share
Overview
Overview
ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 4 system includes vehicle-specific tuned 2.5” Extended Travel coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. When used with an ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. The included ICON tubular upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. ICON 2.5 Aluminum Series Remote Reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
