ICON 05-15 Toyota Tacoma 0-3.5in/2016+ Toyota Tacoma 0-2.75in Stg 6 Suspension System w/Tubular Uca
ICON 05-15 Toyota Tacoma 0-3.5in/2016+ Toyota Tacoma 0-2.75in Stg 6 Suspension System w/Tubular Uca
SKU:K53006T
In stock
Regular price
$4,912.60 USD
Regular price
$4,912.60 USD
Sale price
$4,912.60 USD
Unit price
/
per
Couldn't load pickup availability
â–¶ Vehicle Fitments

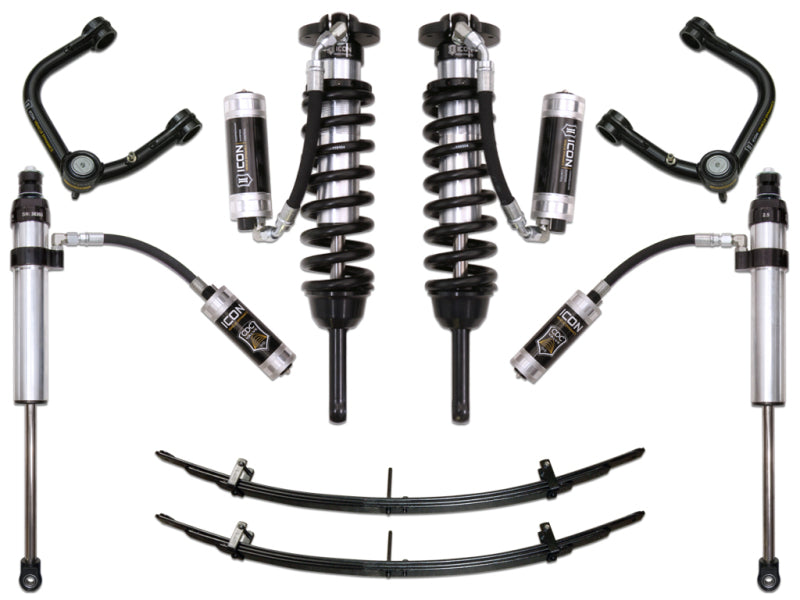

The ICON Stage 6 suspension system for Toyota Tacoma is a high-performance upgrade designed for maximum off-road and on-road control. It features vehicle-specific tuned 2.5-inch extended travel coilover shocks with remote reservoirs and CDCV technology for superior cooling and adjustable compression damping. The system includes ICON-engineered coil springs for enhanced vehicle feel across the travel range, and height adjustment from 0 to 3.5 inches for 2005-2015 models or 0 to 2.75 inches for 2016+ models, enabling larger wheel and tire setups. The included tubular upper control arms improve front-end geometry, add caster, and increase suspension component clearance, while the serviceable ICON Delta Joint replaces OE ball joints for full bump and droop travel without bind. The rear features an Add-A-Leaf Kit that lowers spring rate by approximately 10% and lifts the vehicle 1.5 inches, with ICON 2.5-inch aluminum remote reservoir shocks with externally adjustable CDCV valves offering 10 damping levels. This system enhances vehicle capability both on and off-road, providing outstanding ride quality and durability.
Designed for 2005-2023 Toyota Tacoma models, including those with 0-3.5-inch or 0-2.75-inch lift requirements, this suspension kit is ideal for serious off-road enthusiasts and daily drivers seeking improved performance and ride comfort. It is a bolt-on, direct replacement system that includes coilover shocks, tubular upper control arms, and rear leaf spring components. Compatible with models equipped with a range of engine options, the kit is suitable for off-road adventures, trail riding, and improved on-road handling. Installation replaces factory components with high-quality ICON parts, ensuring durability and long-lasting performance. The system is engineered to optimize suspension geometry, wheel travel, and damping, making it an excellent upgrade for those looking to enhance their Tacoma’s off-road and on-road capabilities.
Share
Overview
Overview
ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 6 system includes vehicle-specific tuned 2.5” Extended Travel coilover shocks featuring remote reservoirs equipped with CDCV for exceptional cooling properties and adjustable compression damping as well as ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. The included ICON tubular upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. ICON 2.5 Aluminum Series Remote Reservoir rear shocks with CDCV utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 6 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
