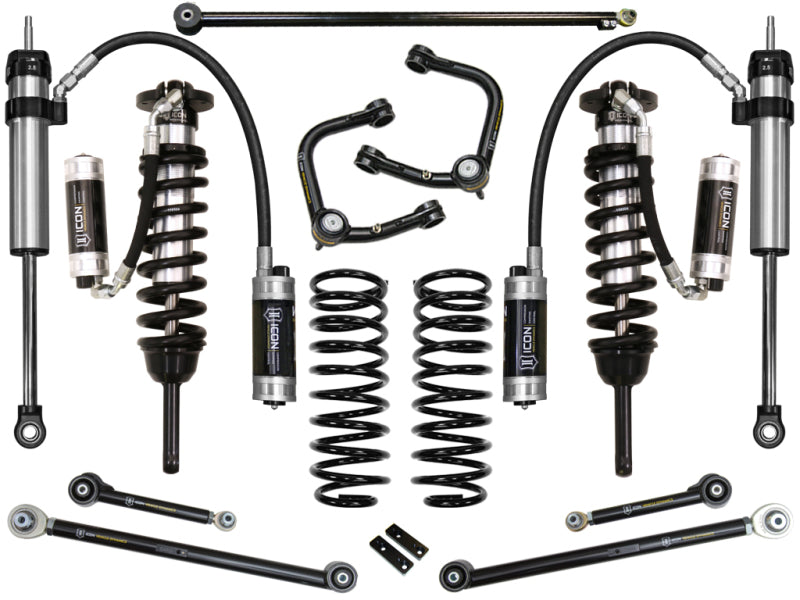

ICON 10+ Lexus GX460 0-3.5in Stage 7 Suspension System w/ Tubular UCA

ICON 10+ Lexus GX460 0-3.5in Stage 7 Suspension System w/ Tubular UCA

K53187T

Out of stock

$5,395.65 USD
$5,395.65 USD $5,395.65 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ICON Stage 7 suspension system for the Lexus GX460 is a high-performance upgrade designed to enhance off-road capability and on-road handling. It features vehicle-specific tuned, extended travel 2.5-inch coilover shocks with remote reservoirs for improved heat dissipation and durability. Paired with tubular steel Delta Joint upper control arms, this system allows for increased wheel travel and precise geometry correction, resulting in better wheel alignment and handling. The coilovers are height adjustable from 0 to 3.5 inches of lift, enabling the use of larger, more aggressive wheels and tires. Additionally, ICON's 2-inch lift rear coil springs combined with 2.5-inch aluminum series remote reservoir shocks provide balanced performance from front to rear. CDC valves in the shocks allow end-user compression adjustments for optimal ride quality across various terrains and cargo loads. The tubular steel rear links are stronger than OE units, with low-maintenance bushings and adjustable pinion angles, while the included adjustable rear track bar ensures proper rear end alignment and KDSS compatibility.

Designed for 2010 and newer Lexus GX460 models, this Stage 7 suspension system is suitable for drivers seeking enhanced off-road performance and improved handling on and off the pavement. It is a bolt-on upgrade that replaces factory components with durable, high-quality parts engineered for extended wheel travel and precise geometry correction. The kit includes coilover shocks, tubular control arms, rear coil springs, rear shocks, and an adjustable track bar, providing a comprehensive suspension upgrade. Ideal for off-road adventures, daily driving, and performance applications, this system offers increased ground clearance, better wheel articulation, and improved overall vehicle stability. Proper installation ensures optimal performance, making it a versatile choice for enthusiasts looking to elevate their Lexus GX460's capabilities.

Overview

The Stage 7 system includes vehicle-specific tuned, extended travel 2.5” coilover shocks with remote reservoirs, for improved heat dissipation and off-road performance, paired with tubular steel Delta Joint upper control arms. This combination allows for extended wheel travel and geometry correction for more precise wheel alignment. The coilovers are also height adjustable from 0-3.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2” lift rear coil springs paired with 2.5 Aluminum Series remote reservoir rear shocks utilizing vehicle-specific valving balance the performance of the truck from front to rear. CDC Valves are installed in front and rear shocks and allow for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. ICON's tubular steel rear upper and lower links are much stronger than the OE units, feature low maintenance multi-durometer bushings, and can be adjusted for optimum pinion angle. On top of it all, the lower links have been designed to provide correct roll steer geometry for the best possible handling on and off-road. An adjustable rear track bar is also included for KDSS compatibility that also helps correct rear end alignment. The ICON Vehicle Dynamics 2010-UP Lexus GX460 Stage 7 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
