ICON 2019+ Ram 1500 2-3in. Stage 1 Suspension System w/ Billet Upper Control Arms

ICON 2019+ Ram 1500 2-3in. Stage 1 Suspension System w/ Billet Upper Control Arms

K213111

Out of stock

$3,225.80 USD
$3,225.80 USD $3,225.80 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ICON 2019+ Ram 1500 Stage 1 Suspension System with Billet Upper Control Arms is a high-performance suspension upgrade designed for serious drivers seeking enhanced off-road and on-road capabilities. This system features vehicle-specific tuned 2.5-inch coilover shocks with internal reservoirs that provide exceptional cooling and damping, along with ICON-engineered coil springs for improved vehicle feel throughout the travel range. The coilovers are height adjustable for a 2-3 inch front lift, enabling larger, more aggressive wheel and tire setups. Billet aluminum Delta Joint upper control arms add strength and durability, help retain factory alignment specifications, and allow on-vehicle caster and camber adjustments. The kit also includes ICON 2.0 Aluminum Series internal reservoir rear shocks with vehicle-specific valving, ensuring balanced performance from front to rear. This suspension system offers outstanding control, ride quality, and off-road performance.

Designed for 2019-2023 Ram 1500 models, this system is compatible with trucks equipped with the standard chassis and is suitable for both street and off-road use. It serves as a direct bolt-on upgrade that enhances wheel travel, ride height, and overall vehicle capability. The kit includes coilover shocks, billet upper control arms, and rear shocks, providing a comprehensive suspension solution. Installation is intended for those seeking increased performance and durability, whether for daily driving, off-road adventures, or towing. This system is ideal for drivers looking to improve their Ram 1500’s handling, ride quality, and off-road readiness at lift heights of 2-3 inches.

Overview

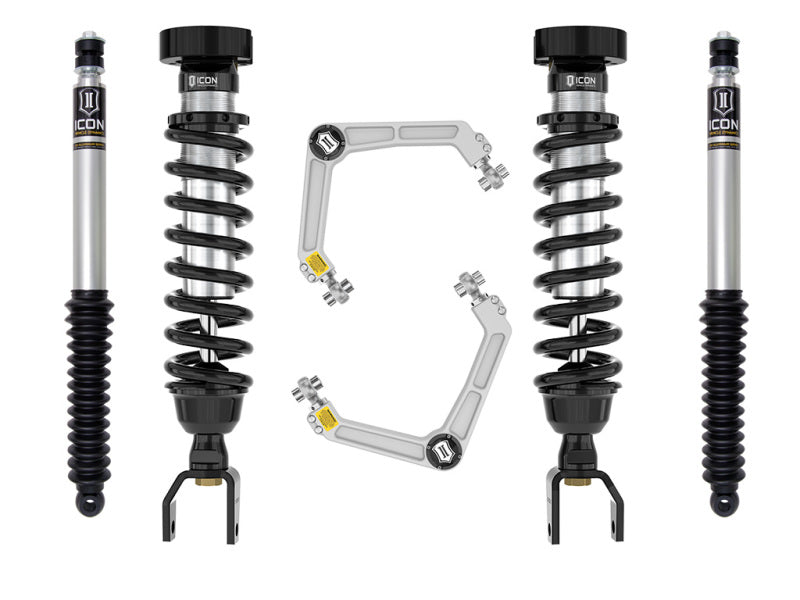

ICON Vehicle Dynamics 2019-2023 Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers, are also height adjustable for 2-3” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations and their longer than stock length improves performance by increasing front wheel travel. Billet aluminum Delta Joint upper control arms not only add strength and durability but help retain factory alignment specs, offer on-vehicle caster/camber adjustment, and allow proper wheel alignment at the lift height this system provides. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2023 Ram 1500 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
