| Year | Make | Model |
|---|---|---|
| 2024 - 2026 | Toyota | Tacoma |
1
/
of
5
ICON 2024+ Toyota Tacoma 1.25in-3in Stage 5 Suspension System - Billet
ICON 2024+ Toyota Tacoma 1.25in-3in Stage 5 Suspension System - Billet
SKU:K53295
In stock
Regular price
$4,419.83 USD
Regular price
$4,419.83 USD
Sale price
$4,419.83 USD
Unit price
/
per
Couldn't load pickup availability
â–¶ Vehicle Fitments
The ICON 2024+ Toyota Tacoma Stage 5 Suspension System is a high-performance coilover kit designed to enhance off-road and on-road handling. Featuring vehicle-specific tuned 2.5 Series coilover shocks with CDCV-equipped remote reservoirs and ICON-engineered coil springs, this system improves wheel travel, damping ability, and ride quality. The remote reservoirs increase shock oil volume and heat dissipation, reducing the risk of overheating and damper fade during hard use. Externally adjustable CDC valves offer ten levels of compression damping, allowing precise tuning. The coilovers are height adjustable from 1.25 to 3 inches of front lift, accommodating larger wheels and tires. The kit also includes front differential drop brackets and polyurethane differential bushings to maximize suspension travel and prevent CV bind, ensuring durability and performance under demanding conditions.
Designed for 2024 and 2025 Toyota Tacoma models, this suspension system fits vehicles with a chassis compatible with the specified lift range. It is ideal for serious off-road enthusiasts and drivers seeking improved vehicle control, ride quality, and larger tire compatibility. The system is a direct bolt-on upgrade that replaces stock components, providing enhanced suspension travel and stability. The included coilover shocks, coil springs, drop brackets, and bushings work together to deliver superior handling and durability. Suitable for off-road adventures, daily driving, and performance applications, this Stage 5 suspension system offers a robust solution for maximizing Tacoma’s capabilities.
Share
Overview
Overview

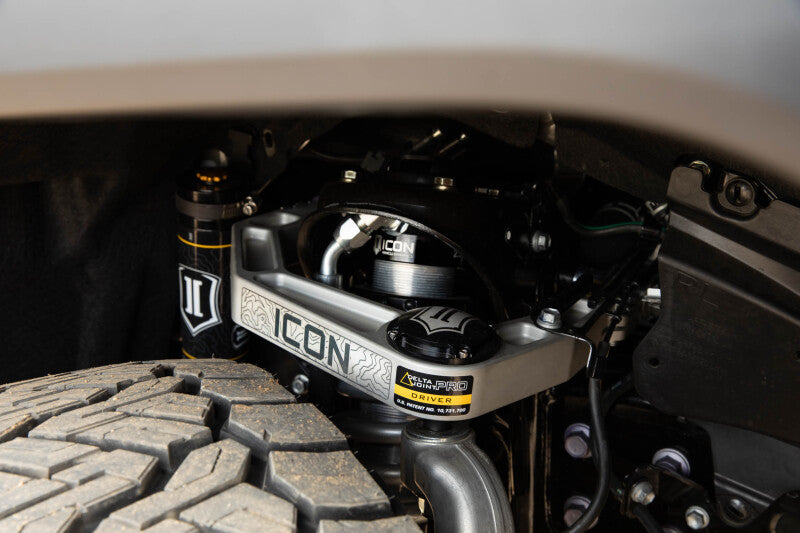

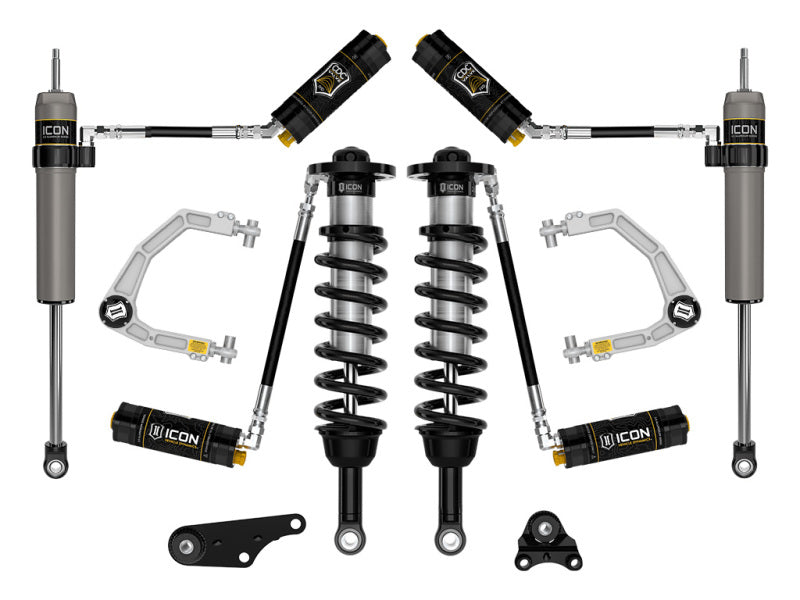

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 5 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDCV equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevents CV bind. Polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.
