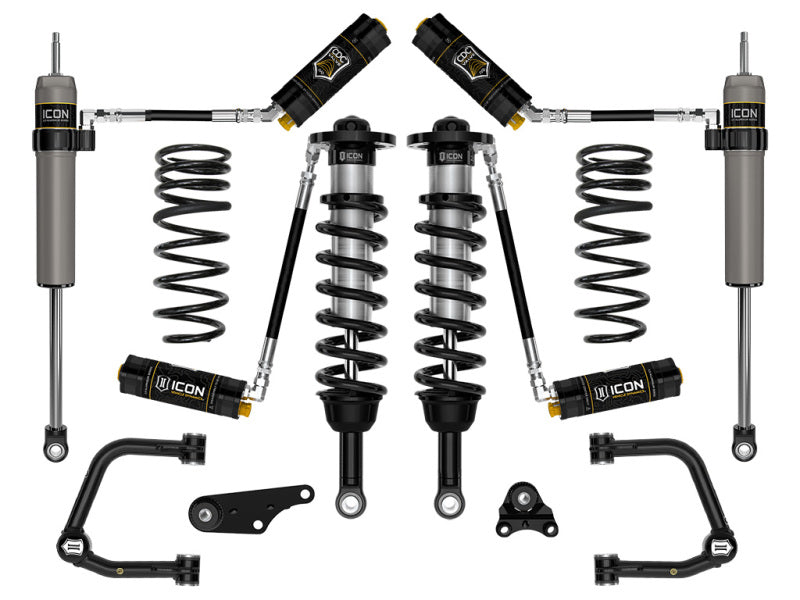

ICON 2024+ Toyota Tacoma 1.25in-3in Stage 5 Suspension System Tubular w/ Triple Rate Spring
ICON 2024+ Toyota Tacoma 1.25in-3in Stage 5 Suspension System Tubular w/ Triple Rate Spring
SKU:K53295TS
In stock
Regular price
$4,241.29 USD
Regular price
$4,241.29 USD
Sale price
$4,241.29 USD
Unit price
/
per
Couldn't load pickup availability
â–¶ Vehicle Fitments
The ICON 2024+ Toyota Tacoma Stage 5 Suspension System is a high-performance coilover upgrade designed for serious off-road and on-road driving. Built with vehicle-specific tuned 2.5 Series coilover shocks featuring CDCV-equipped remote reservoirs and ICON-engineered coil springs, this system enhances wheel travel, damping ability, and vehicle control. The remote reservoirs increase shock oil volume and heat dissipation, reducing the risk of overheating and cavitation during hard use. Externally adjustable CDC Valves provide ten levels of compression damping force, allowing fine-tuning for various terrains. The height-adjustable coilovers offer a lift range of 1.25 to 3 inches, enabling larger wheel and tire setups. The kit also includes front differential drop brackets and polyurethane differential bushings to maximize suspension travel and minimize differential movement under load, ensuring durability and performance.
Designed for 2024 and 2025 Toyota Tacoma models, this suspension system is compatible with trucks equipped with a range of engine options and chassis configurations. It serves as a comprehensive upgrade for off-road enthusiasts seeking improved ride quality, vehicle stability, and larger tire compatibility. The installation involves replacing stock components with bolt-on coilovers, differential brackets, and bushings, making it suitable for serious off-road use and aggressive driving. The kit provides a significant lift and enhanced suspension travel, making it ideal for off-road adventures, overlanding, and demanding terrain. This system is engineered to deliver maximum performance and durability for Tacoma owners looking to elevate their vehicle's capabilities.
Share
Overview
Overview
ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 5 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDCV equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.
