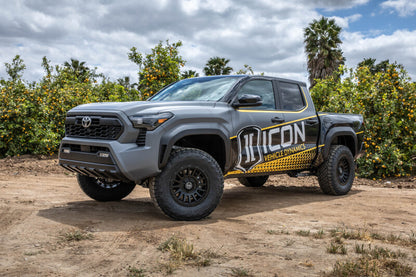

ICON 2024+ Toyota Tacoma 1.25in-3in Stage 7 Suspension System - Billet
ICON 2024+ Toyota Tacoma 1.25in-3in Stage 7 Suspension System - Billet
SKU:K53297
In stock
Regular price
$5,138.04 USD
Regular price
$5,138.04 USD
Sale price
$5,138.04 USD
Unit price
/
per
Couldn't load pickup availability
â–¶ Vehicle Fitments
The ICON 2024+ Toyota Tacoma Stage 7 Suspension System is a high-performance coilover kit designed to enhance off-road and on-road handling. Featuring vehicle-specific tuned 2.5 Series coilover shocks with remote reservoirs and ICON-engineered coil springs, this system improves wheel travel, damping ability, and overall vehicle control. The remote reservoirs increase shock oil volume and heat dissipation, reducing the risk of damper fade during hard use. Height adjustment from 1.25 to 3 inches allows for larger, more aggressive wheel and tire setups, while front differential drop brackets and optimized coilover lengths maximize suspension travel and prevent CV bind. Polyurethane differential bushings help limit differential movement under load, and the included billet aluminum upper control arms improve front-end geometry, camber, and caster adjustment for superior ride quality and handling.

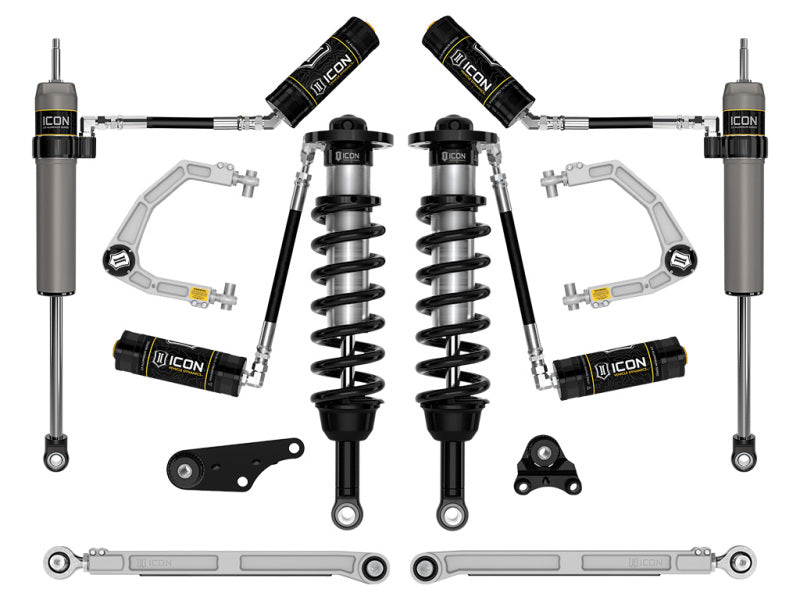

Designed for 2024-2025 Toyota Tacoma models, this suspension system is compatible with trucks equipped with a range of engines and chassis configurations. It serves as a comprehensive upgrade for off-road enthusiasts and serious drivers seeking increased suspension travel, durability, and improved ride quality. The kit includes tuned coilover shocks, coil springs, differential drop brackets, polyurethane bushings, and billet aluminum upper control arms, providing a bolt-on installation that enhances vehicle performance and stability. Ideal for off-road adventures, daily driving, and aggressive wheel setups, this system ensures maximum suspension performance and vehicle control across various terrains.
Share
Overview
Overview

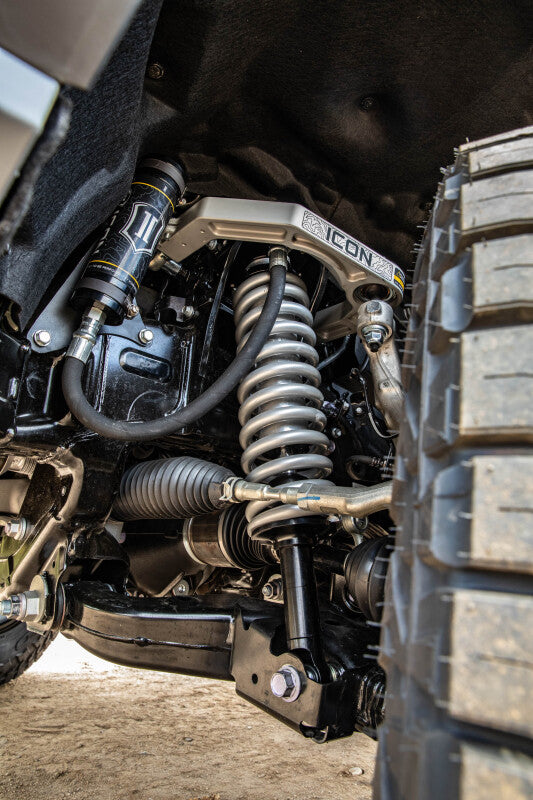

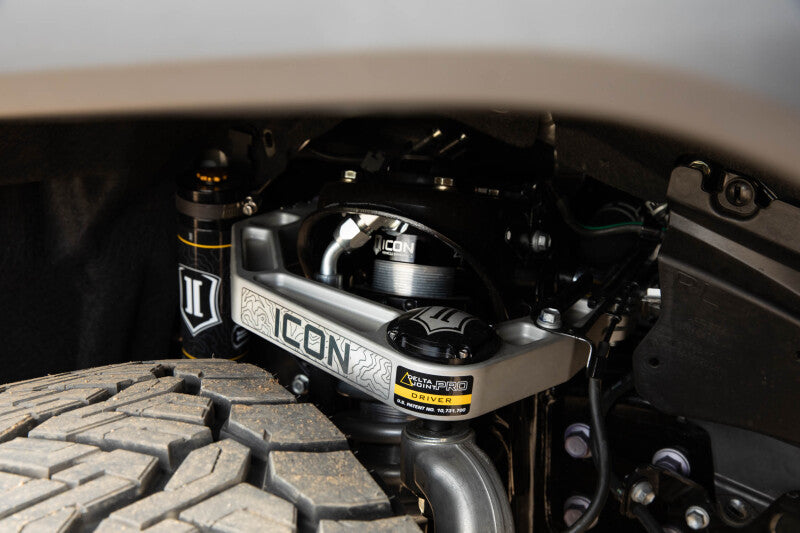

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 7 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevents CV bind. Polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2024-2025 Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.
