ICON 2024+ Toyota Tacoma 1.25in-3in Stage 8 Suspension System Billet
ICON 2024+ Toyota Tacoma 1.25in-3in Stage 8 Suspension System Billet
SKU:K53298
In stock
Regular price
$5,609.79 USD
Regular price
$5,609.79 USD
Sale price
$5,609.79 USD
Unit price
/
per
Couldn't load pickup availability
â–¶ Vehicle Fitments

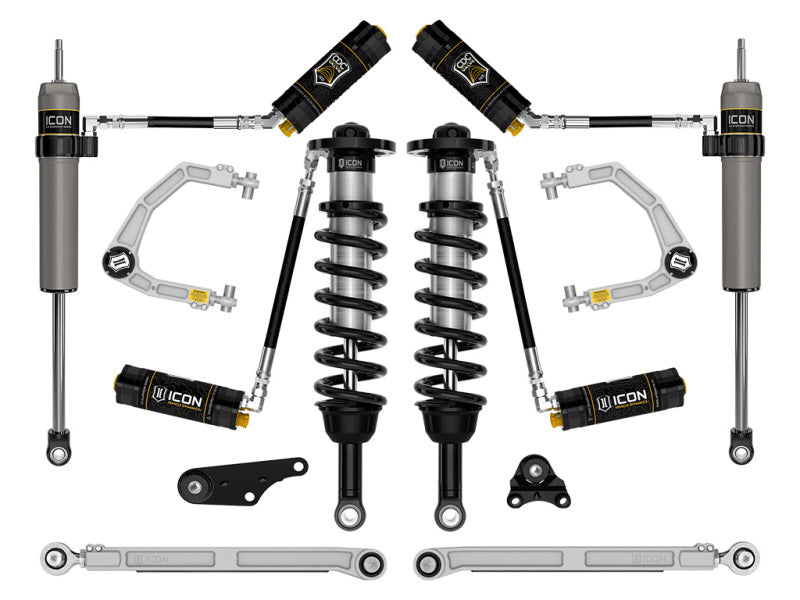

The ICON 2024+ Toyota Tacoma Stage 8 Suspension System is a high-performance coilover upgrade designed for maximum off-road and on-road control. Featuring vehicle-specific tuned 2.5 Series coilover shocks with CDCV-equipped remote reservoirs and ICON-engineered coil springs, this system enhances wheel travel and damping ability. The remote reservoirs increase shock oil volume and heat dissipation, reducing the risk of damper fade during hard use. Externally adjustable ICON CDC Valves provide 10 levels of compression damping, allowing precise tuning for various driving conditions. The coilovers are height adjustable from 1.25 to 3 inches of front lift, enabling larger wheel and tire setups. The kit also includes front differential drop brackets and polyurethane differential bushings to maximize suspension travel and prevent CV bind, delivering improved ride quality and vehicle control.
Designed for 2024 and 2025 Toyota Tacoma models, this suspension system is compatible with vehicles equipped with the appropriate chassis and drivetrain configurations. It is intended for serious off-road enthusiasts and drivers seeking enhanced performance, durability, and ride quality both on- and off-road. The system is a bolt-on upgrade that replaces stock components with precision-engineered coilovers and supporting hardware. Ideal for off-road adventures, aggressive driving, and vehicle customization, this kit provides a significant lift range and improved suspension articulation to handle demanding terrain while maintaining ride comfort and stability.
Share
Overview
Overview
ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 8 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDCV equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevents CV bind. Polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.
