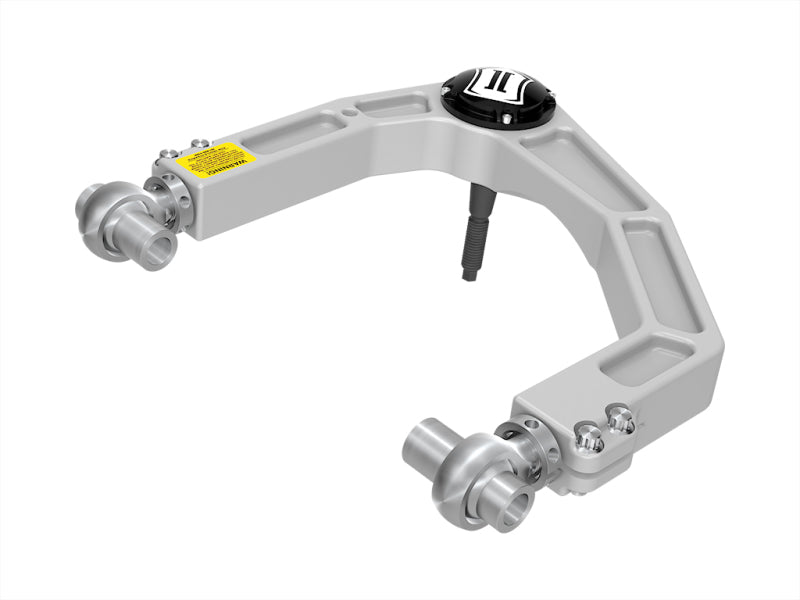

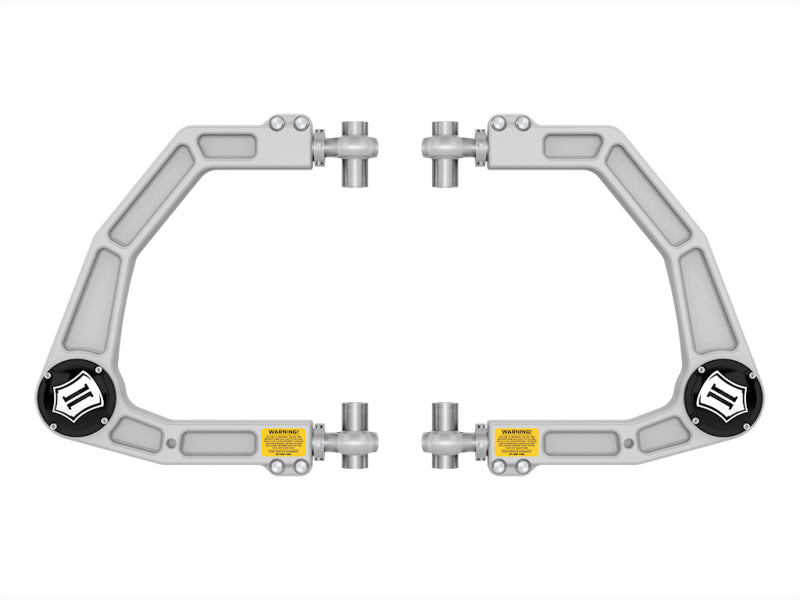

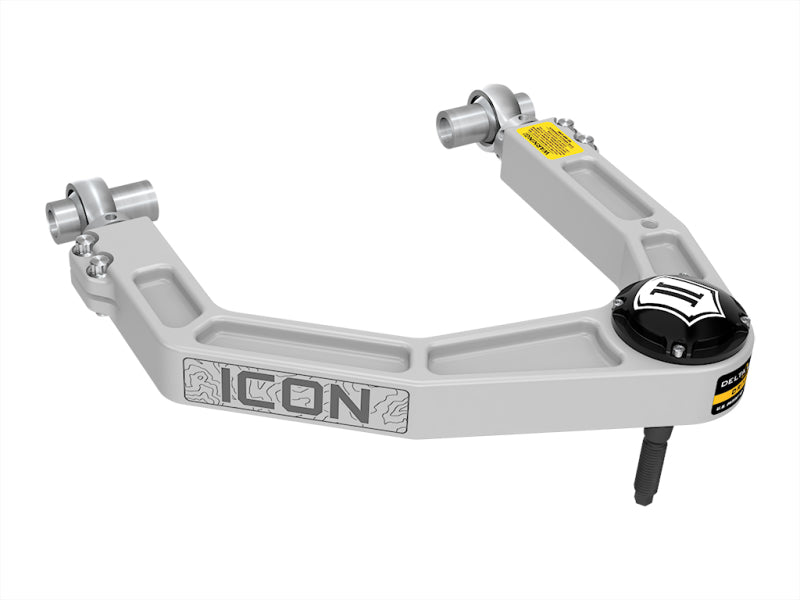

ICON 22-23 Toyota Land Cruiser 300 Billet Upper Control Arm Delta Joint Pro Kit
ICON 22-23 Toyota Land Cruiser 300 Billet Upper Control Arm Delta Joint Pro Kit
SKU:58571DJ
Out of stock
Couldn't load pickup availability
The ICON 22-23 Toyota Land Cruiser 300 Billet Upper Control Arm Delta Joint Pro Kit is a high-performance suspension upgrade designed for off-road enthusiasts. Featuring ICON's innovative Delta Joint PRO, this kit combines the durability and longevity of factory-style ball joints with enhanced performance and strength that surpass traditional motorsports-style joints. The Delta Joint PRO is rebuildable and serviceable, allowing for easy inspection and replacement of components without needing to replace the entire joint. Its larger ball with 56% more bearing surface, improved lubrication sealing, and a full 90 degrees of articulation provide superior range of motion and bind-free suspension movement. Constructed with chromoly balls and shafts hardened to Rockwell C 55, along with precision-machined, graphite-impregnated sintered metal races, this joint is built to withstand demanding off-road conditions and abuse.
Designed specifically for 2022-2023 Toyota Land Cruiser 300 models, this kit is a direct bolt-on upgrade for the upper control arms. It is suitable for off-road, overlanding, and aggressive driving applications where durability and articulation are critical. The kit includes billet upper control arms equipped with ICON's Delta Joint PRO, offering maximum suspension travel and improved articulation. Installation is straightforward for those familiar with suspension work, providing a reliable upgrade that enhances vehicle capability and longevity. This control arm kit is ideal for off-road enthusiasts seeking increased articulation, durability, and performance in challenging terrain.
Share
Overview
Overview
ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected, and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
