| Year | Make | Model |
|---|---|---|
| 2022 - 2026 | Toyota | Sequoia III (XK80) |
1
/
of
6
ICON 23-24 Toyota Sequoia 3-4.5in Lift Stage 10 Suspension System Tubular
ICON 23-24 Toyota Sequoia 3-4.5in Lift Stage 10 Suspension System Tubular
SKU:K53240T
Out of stock
Regular price
$7,950.30 USD
Regular price
$7,950.30 USD
Sale price
$7,950.30 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
The ICON Stage 10 Suspension System for the 2023-2025 Toyota Sequoia is a high-performance lift kit designed to enhance off-road capability and ride quality. Featuring remote reservoir front coilovers from the VS 2.5 Series, this system offers up to 3-4.5 inches of adjustable lift when paired with ICON billet front upper control arms. The coilovers incorporate CDC Valves for externally adjustable compression damping, allowing for 10 different damping force settings. Constructed with larger 2.5-inch shock bodies and increased piston area, these coilovers provide up to 40% more travel than stock, improving suspension responsiveness and durability under demanding conditions. Remote reservoirs increase shock oil volume and heat dissipation, reducing the risk of overheating and cavitation during hard use, ensuring consistent performance.
Designed specifically for 2023-2025 Toyota Sequoia models, this suspension system is a direct bolt-on upgrade that accommodates larger, more aggressive wheel and tire setups. It is ideal for off-road enthusiasts seeking maximum travel, improved ride quality, and adjustable damping for various terrains. The kit includes the remote reservoir coilovers and CDC Valves, with compatibility requiring the use of ICON billet front upper control arms for full lift adjustment. Suitable for off-road, trail, and daily driving applications, this system provides a robust, vehicle-specific solution to elevate your Sequoia’s performance and capability.
Share
Overview
Overview

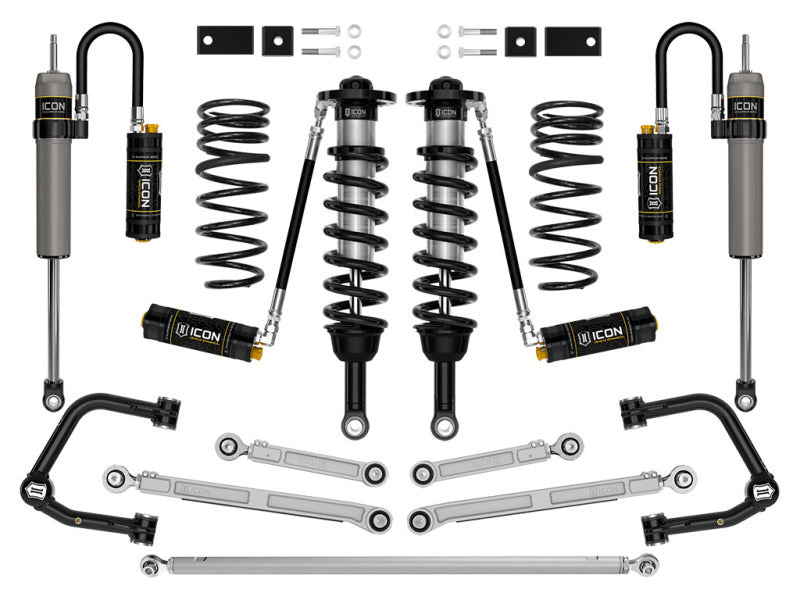

This Stage 10 system features the 2023-2025 Toyota Sequoia VS 2.5 Series remote reservoir front coilovers equipped with CDC Valves. These adjustable coilovers allow up to 3-4.5” of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
