| Year | Make | Model |
|---|---|---|
| 1995 - 1998 | Lexus | LX450 |
| 1998 - 2007 | Lexus | LX470 |
| 1984 - 2026 | Toyota | Land Cruiser |
1
/
of
1

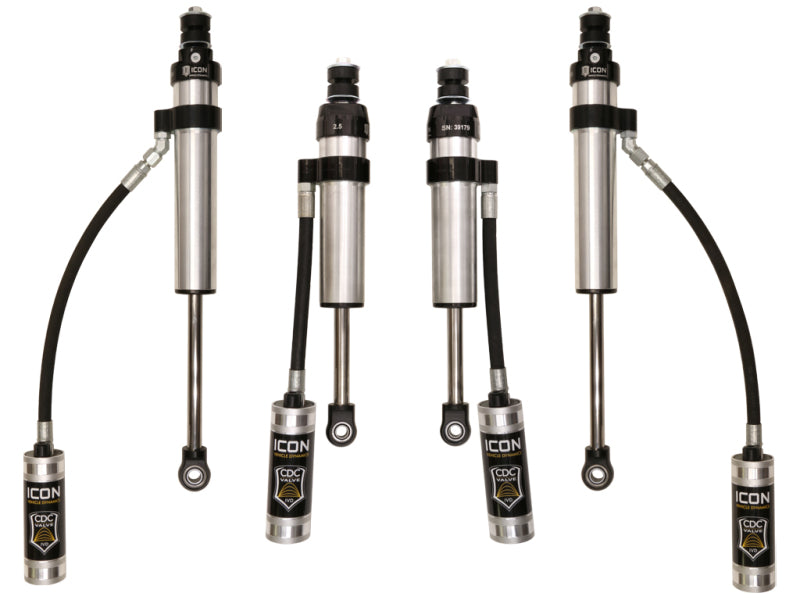

ICON 98-07 Toyota Land Cruiser 100 Series/Lexus LX470 0-3in Stage 3 Suspension System
ICON 98-07 Toyota Land Cruiser 100 Series/Lexus LX470 0-3in Stage 3 Suspension System
SKU:K53083
Out of stock
Regular price
$3,051.90 USD
Regular price
$3,051.90 USD
Sale price
$3,051.90 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
The ICON Stage 3 Suspension System for the 1998-2007 Toyota Land Cruiser 100 Series and Lexus LX470 is a high-performance upgrade designed to enhance suspension travel and control. Featuring a unique 2.5-inch diameter shock system with remote reservoirs front and rear, it ensures consistent damping and cooler operating temperatures during extended off-road use. The system incorporates heavy-duty components such as lower spherical rod end bearings and upper stem bushings to minimize deflection and provide precise suspension control under high loads. The inclusion of ICON's CDC Valve upgrade allows for external ride tuning with 10 adjustable settings from soft to hard, offering versatility for various driving conditions.
Designed specifically for the 100 Series Land Cruiser and LX470 models from 1998 to 2007, this Stage 3 suspension system is ideal for those seeking 0-3 inches of lift (aftermarket upper control arms required). It addresses the complexities of the compact torsion bar IFS front suspension, providing maximum travel and performance with a bolt-on installation. Suitable for off-road enthusiasts and those looking to improve ride quality and load handling, this kit delivers durable, tunable suspension performance for demanding applications.
Share
Overview
Overview
The 1998 - 2007 Toyota Land Cruiser 100 Series has a compact torsion bar IFS front suspension, and requires a lot of work to be done in a small space. When lift is added via torsion bar adjustment there is even more spring energy that must be absorbed to adequately control the vehicle. Keeping this in mind, those looking to achieve 0-3" of lift (aftermarket upper control required) can install the Stage 3 shock system for maximum suspension travel and performance with tuning adjustability. ICON engineers have developed a unique 2.5” diameter shock system, with remote reservoirs front and rear, that can handle these demands. 2.5 Aluminum Series reservoir shocks front and rear ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended off-road use. With a lower spherical rod end bearing and heavy-duty upper stem bushings, deflection is kept to a minimum for precise control of the suspension even under high loads. ICON's CDC Valve upgrade is included in this stage front and rear for those desiring an easy way to tune the ride externally with 10 settings from soft to hard.
