ISR Performance Steel Gusset Weld In Dimple Plates w/ 20mm Holes
ISR Performance Steel Gusset Weld In Dimple Plates w/ 20mm Holes
SKU:IS-9982-20MM
In stock
Couldn't load pickup availability
The ISR Performance Steel Gusset Weld In Dimple Plates are high-strength fabrication components designed to reinforce automotive roll cages and chassis structures. Crafted from durable steel, these plates feature precise 20mm holes for versatile mounting options. They are engineered to enhance structural integrity, providing increased rigidity and safety during high-performance driving or racing applications. The plates are straightforward to weld in, making them an ideal upgrade for custom builds and fabrication projects. Their robust construction ensures long-lasting performance under demanding conditions, contributing to improved vehicle safety and chassis stability.
These weld-in gusset plates are suitable for a wide range of vehicles from 2010 to 2025, making them a universal solution for custom fabrications. They are intended for use in reinforcing roll cages or chassis frames, whether for street, track, or off-road applications. Installation involves welding the plates directly onto the vehicle’s frame or cage, with the included 20mm holes allowing for secure attachment of additional components or bracing. These plates are ideal for automotive enthusiasts and fabricators seeking to enhance structural strength and safety in their custom builds or race cars.
Share
Overview
Overview
ISR Performance Steel Gusset Weld In Dimple Plates
2010–2025 Universal / Fabrication Parts
Part #: IS-9982-20MM
Overview
The ISR Performance Steel Gusset Weld In Dimple Plates are an essential accessory for automotive fabricators and enthusiasts looking to reinforce their roll cages or chassis. Designed for custom fabrication projects, these plates provide a reliable and straightforward solution to add structural strength and rigidity to your vehicle's safety cage or frame. Whether you're building a race car, off-road vehicle, or a custom project, these plates help ensure your cage maintains its integrity under demanding conditions.
Constructed with durability and ease of use in mind, these weld-in plates are ideal for both professional shops and home fabricators. Their simple design allows you to cut them to your desired size and weld them directly into your cage or chassis, saving time and effort compared to fabricating your own dimple plates from scratch. The zinc coating offers excellent corrosion resistance during storage and shipping, ensuring the plates remain in optimal condition until installation.
Key Features
Our steel gusset plates are engineered to provide maximum strength and versatility for your fabrication needs. Key features include:
- Material and Coating: Made from high-quality steel with a zinc coating that prevents rust and corrosion during storage and handling. Note that the zinc coating must be sanded off at the weld area to ensure proper welding adhesion.

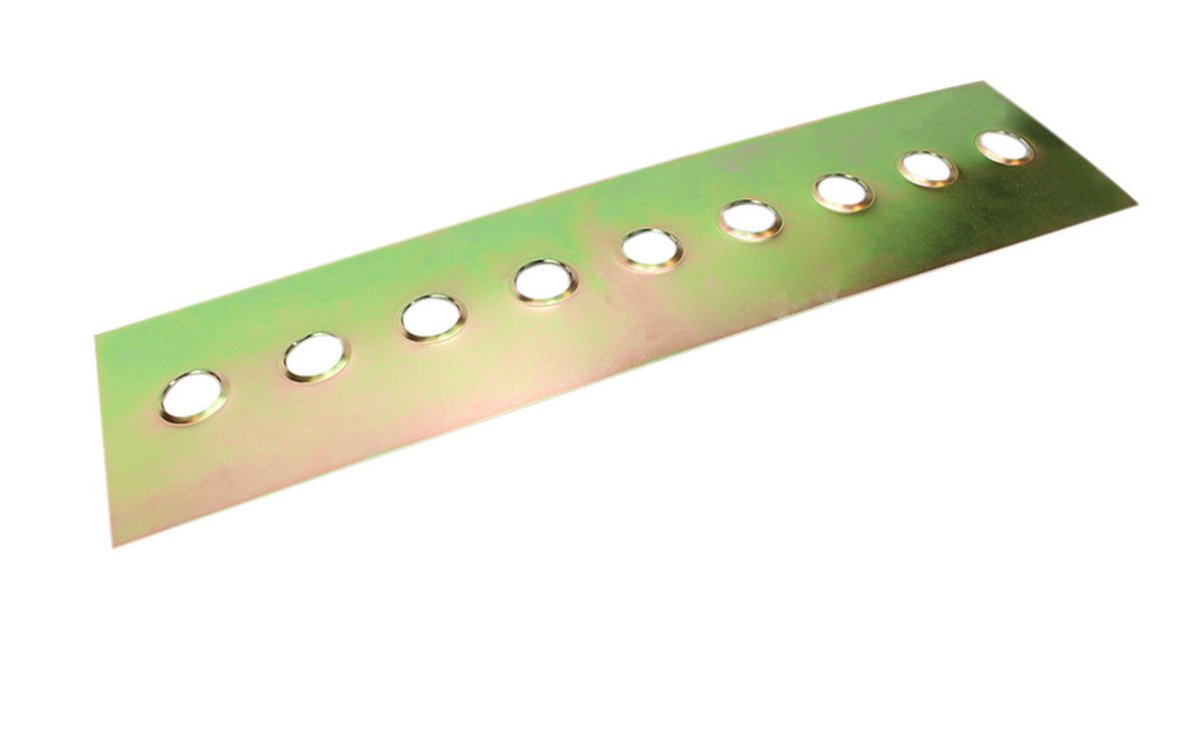

- Dimensions: Each plate measures 24 inches in length, 6 inches in width, and 1/8 inch in thickness, offering ample surface area for reinforcement while remaining manageable for cutting and welding.
- Design Flexibility: The plates are sold individually, allowing you to customize your fabrication process by cutting them to fit specific locations or angles within your cage or chassis.
- Ease of Installation: Designed for weld-in applications, these plates require basic welding skills and equipment, making them suitable for both professional fabricators and DIY enthusiasts.
- Versatility: Perfect for reinforcing cage joints, mounting points, or any structural area requiring additional support.

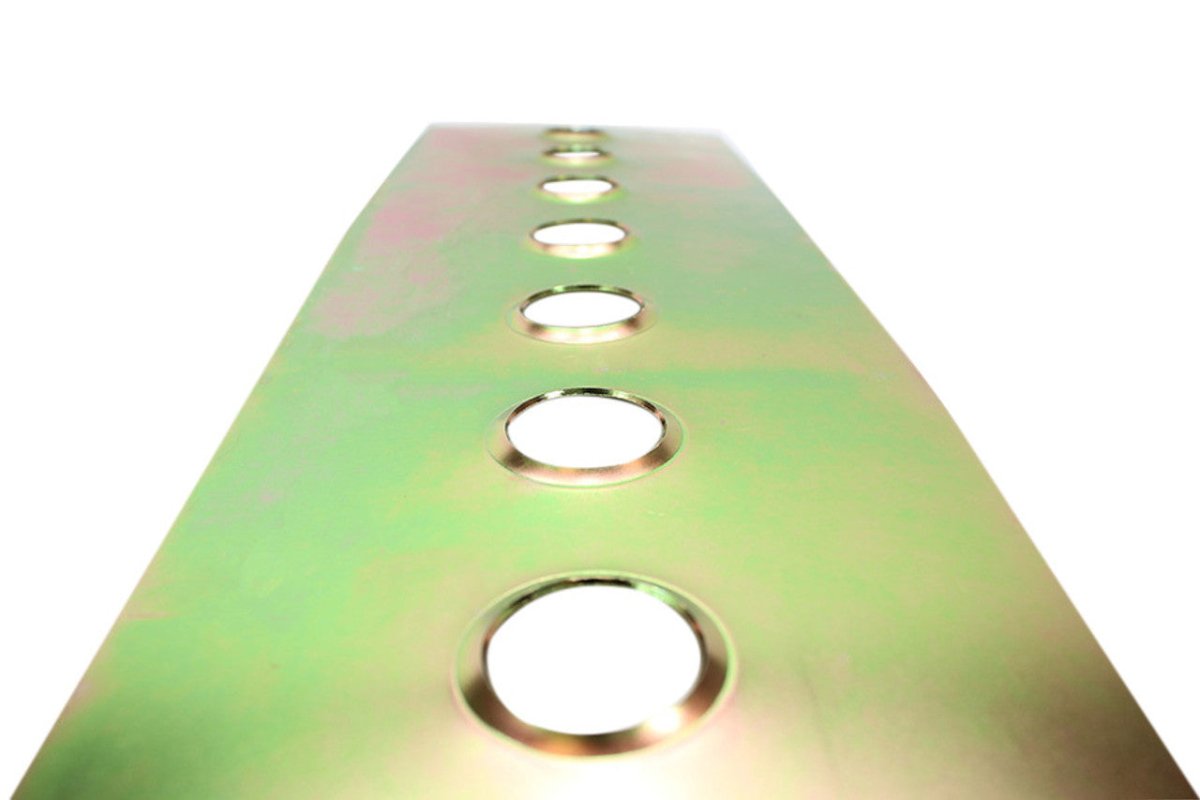

- Pre-drilled Holes: Equipped with 20mm holes, these plates facilitate precise mounting and welding, ensuring a secure fit in your custom setup.
- Corrosion Resistance: Zinc coating helps protect the steel during storage and shipping, maintaining the integrity of the plates until installation.
Construction & Design
The ISR Performance Steel Gusset Weld In Dimple Plates are crafted from robust steel, ensuring they can withstand the stresses encountered in high-performance and off-road environments. The plates feature a zinc coating that provides corrosion resistance, extending their lifespan and maintaining their appearance over time. The 1/8-inch thickness strikes a balance between strength and ease of welding, allowing for secure attachment without excessive heat input.
The plates are designed with simplicity in mind—just cut to size and weld in place. The inclusion of 20mm holes offers flexibility for mounting and alignment, making installation straightforward. Their rectangular shape and consistent dimensions make them adaptable to a wide range of cage configurations and chassis reinforcement points.
Installation & Fitment

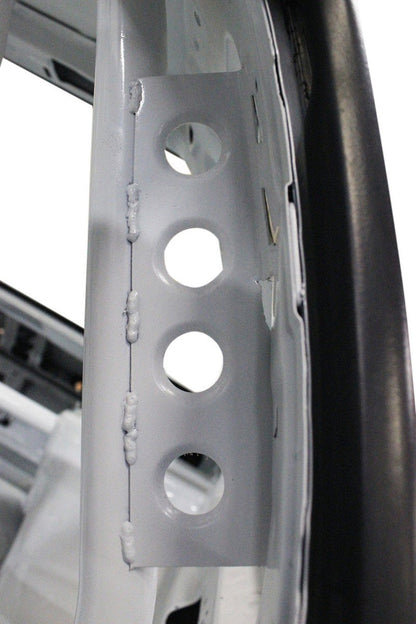

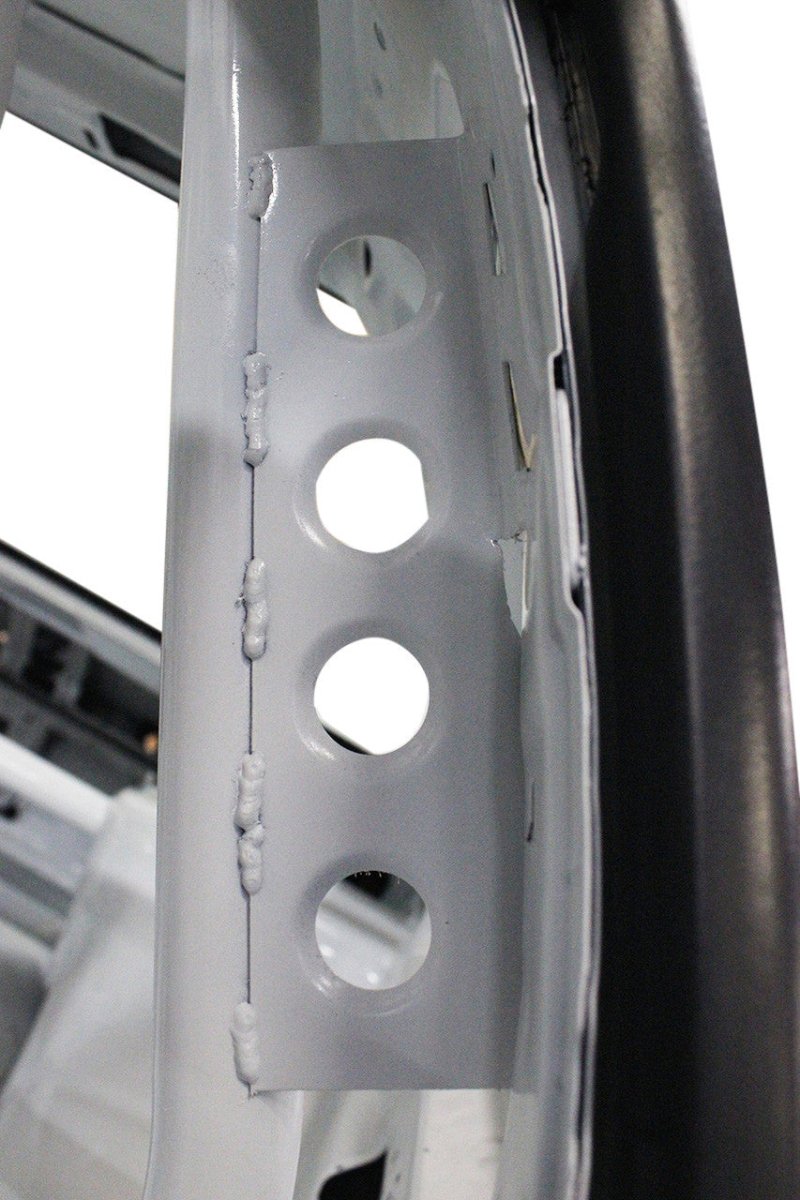

Installing these gusset plates is a straightforward process for anyone with basic welding skills. Simply cut the plates to your desired length and width, sand off the zinc coating at the weld areas for proper fusion, and weld them into your cage or chassis at the designated points. No additional modifications, cutting, or drilling are required beyond the initial preparation. The pre-drilled 20mm holes facilitate precise placement and secure attachment, ensuring a strong, reliable reinforcement.
- Weld-in installation requires basic welding equipment and skills.
- No cutting, drilling, or special tools are necessary beyond cutting the plates to size.
- Ensure zinc coating is sanded off at weld points for optimal weld quality.
What's Included
- Individual steel gusset plate measuring 24" x 6" x 1/8"
- Pre-drilled 20mm holes for mounting and welding
Ideal For
This product is perfect for automotive fabricators, race car builders, off-road enthusiasts, and anyone looking to reinforce their vehicle's structural integrity. Whether you're constructing a new cage or adding support to an existing frame, these plates provide a reliable, easy-to-install solution for enhancing safety and durability.
