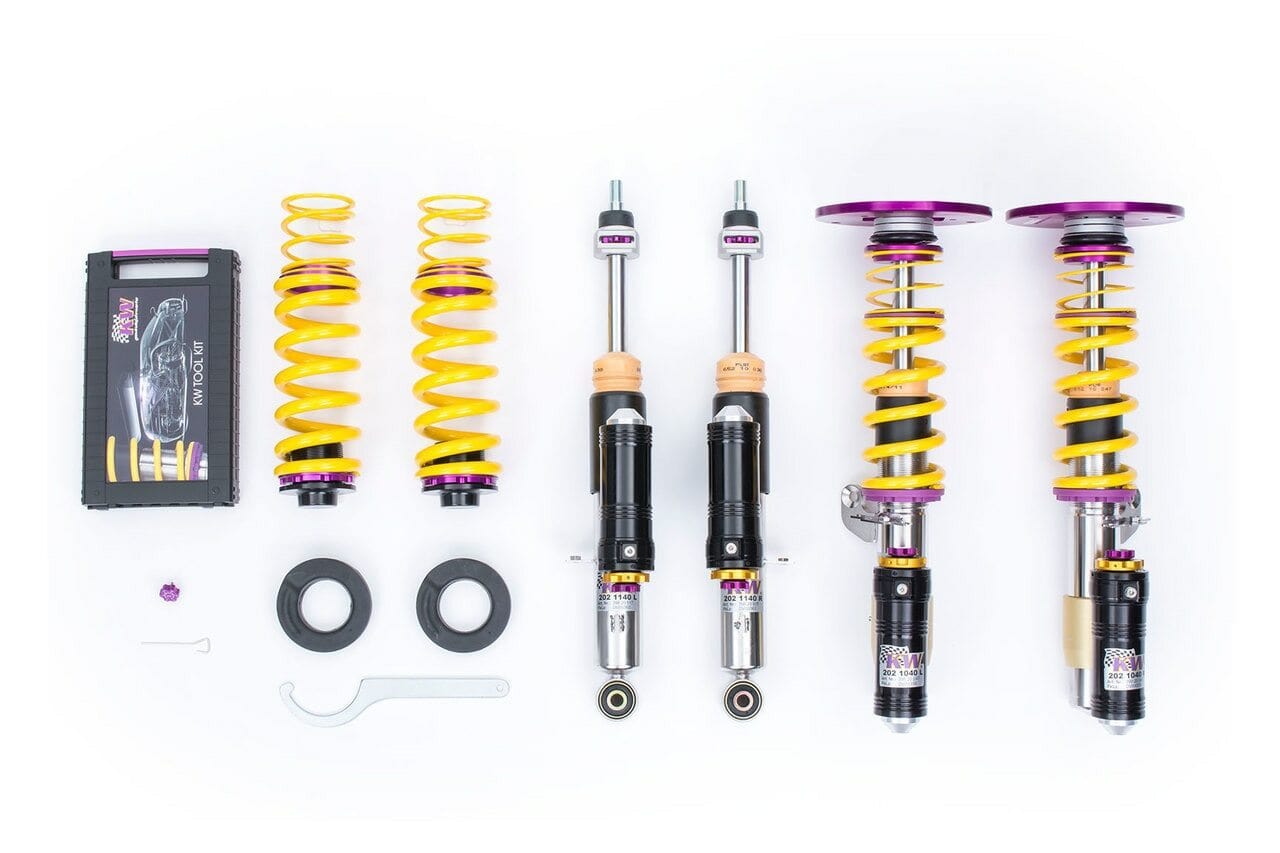

KW Clubsport 2-Way Coilover Kit - 1992-1998 BMW 3 Series

KW Clubsport 2-Way Coilover Kit - 1992-1998 BMW 3 Series

35220811

Out of stock

$4,094.00 USD
$4,094.00 USD $4,094.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The KW Clubsport 2-Way Coilover Kit for the 1992-1998 BMW 3 Series is a high-performance suspension upgrade designed for enthusiasts seeking improved handling on both the street and track. Engineered with a focus on track day performance, this coilover kit was developed using the Nordschleife as a testing benchmark and features adjustable damping and ride height. Constructed with durable materials to withstand demanding driving conditions, the kit offers precise handling, enhanced stability, and improved cornering capabilities. Its design allows for a customizable setup, making it suitable for serious track use while still being street-legal, thanks to official road approval.

This coilover kit is compatible with 1992-1998 BMW 3 Series models, providing a direct bolt-on upgrade for vehicles equipped with suitable chassis codes. Optional adjustable top mounts enable fine-tuning of suspension geometry to match tire specifications and driving preferences. Ideal for track days, spirited driving, or daily use, the kit enhances overall vehicle dynamics without sacrificing comfort or legality. Installation involves replacing existing suspension components, and the kit includes all necessary hardware for a straightforward upgrade. It is tailored for drivers seeking a versatile, high-performance suspension solution for both street and track applications.

Overview

KW Clubsport 2-Way Coilover Kit for the 1992-1998 BMW 3 Series were developed for customers, who demand a better handling car when participating in track day events, but also require an official road approval to use their car every day. The setup was specifically designed for the Nordschleife using track day tires. By using the optional available adjustable top mounts, the suspension geometry can be adjusted to the requirements of tires and the intended use. The mentioned adjustment options combined with the independently adjustable rebound and compression Dampening technology allow individual setup adjustments according to the vehicle load, tire characteristics and different track conditions. The W Clubsport 2 Way Coilover Kit meets every demand regarding a coilover for the usage on the road and the race track. KW Clubsport Coilovers guarantees excellent handling, best performance, highest agility and fantastic lap times.

Standard Features

  • KW suspensions clubsport coilovers are hand built by our expert team and given a uniquely individual serial number at our headquarters in Fichtenberg, Germany
  • Each damper is dyno tested to ensure accuracy and preset to our recommended setting before being release for delivery.
  • Solid aluminum unibal top mounts improve steering feedback by minimizing deflection while providing camber adjustability when applicable.
  • Road legal motorsports technology featuring independent rebound and compression adjustability with application specific track focused linear race springs and matched damper tuning.
  • TVR-A (Twin Valve Rebound - Adjustable) technology - allows oil to flow passed an adjustable, conical low-speed bypass during slow damper speeds, while at higher speed, the main rebound stage valve opens for maximum fluid displacement.
  • TVC-A (Twin Valve Compression - Adjustable) technology - patented compression valve allows fine tuning of low speed. During sudden high piston speeds, the low speed needle and main valve blow-off feature open to maximize flow.
  • Composite spring perch made from wear-resistant, friction-optimized polyamide composite encompassing a stainless-steel insert. The polyamide composite prevents oxidation while the stainless-steel insert maximizes strength.
  • Inox-Line Stainless Steel - Truly Permanent Corrosion Resistance. Inox-Line coatings will not wear off while adjusting the suspension making KW coilover struts 100 percent corrosion resistant with an unlimited lifespan.
Specifications
Part Number 35220811
Part Name Clubsport 2-Way Coilover Kit
UPC 842607062599
Vehicle 1992-1998 BMW 3 Series
Front Lowering Rate 1.5 - 3.1 in.
Rear Lowering Rate 1.2 - 2.3 in.
Height Adjustable Yes
Damping Adjustable Yes
Adjustment Type 2-Way
Front Spring Rates 12.23 Kg/mm (685 lbs/in)
Rear Spring Rates Progressive
Notes When using original tires, wheel offset spacers may be required.
Vehicle Fitment
  • 1992 BMW 3 Series
  • 1993 BMW 3 Series
  • 1994 BMW 3 Series
  • 1995 BMW 3 Series
  • 1996 BMW 3 Series
  • 1997 BMW 3 Series
  • 1998 BMW 3 Series
