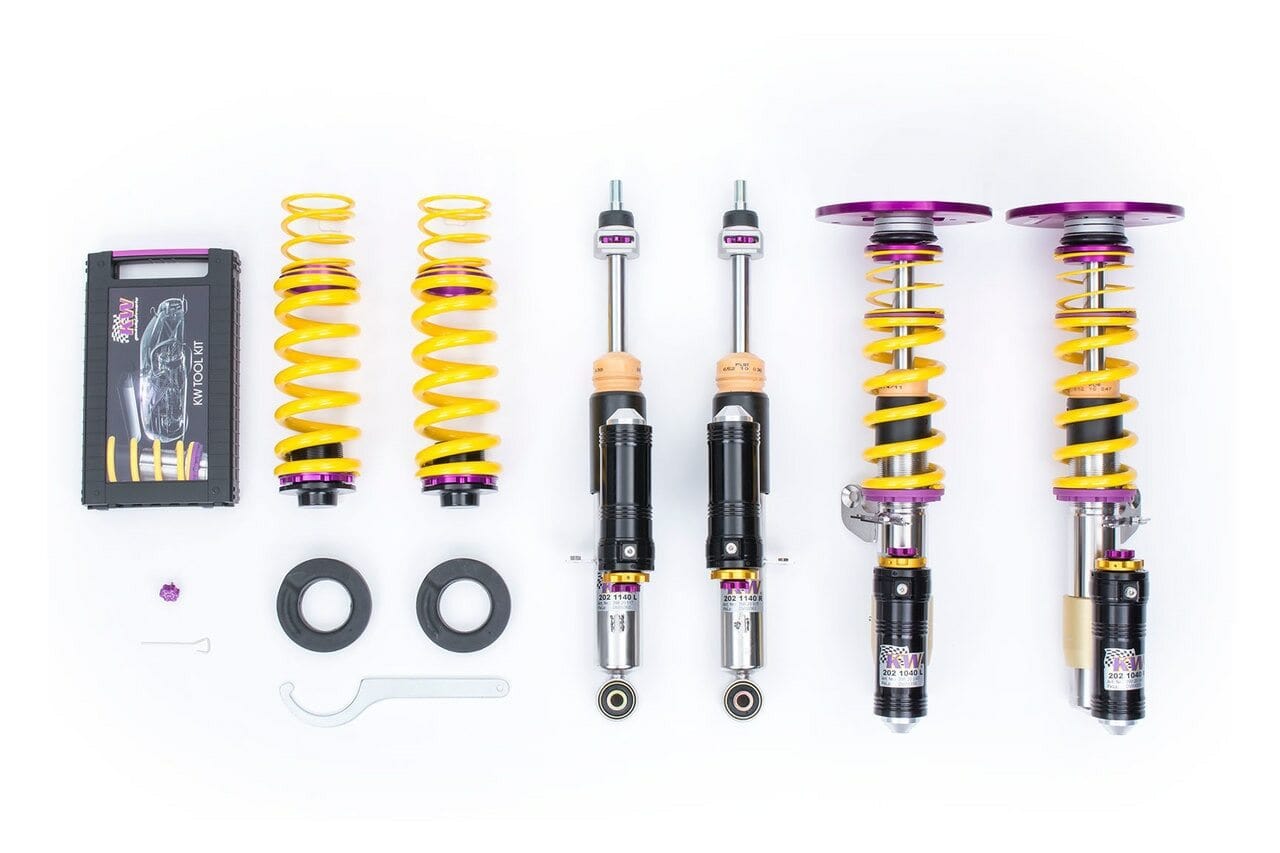

KW Clubsport 2-Way Coilover Kit - 2005-2008 Dodge Magnum V8

KW Clubsport 2-Way Coilover Kit - 2005-2008 Dodge Magnum V8

35227816

Out of stock

$3,594.00 USD
$3,594.00 USD $3,594.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The KW Clubsport 2-Way Coilover Kit is a high-performance suspension upgrade designed specifically for the 2005-2008 Dodge Magnum RWD V8. Engineered for enthusiasts seeking improved handling on the track while maintaining road legality, this coilover kit offers precise damping adjustment and height control. Built with high-quality materials, the kit enhances vehicle stability, cornering, and overall driving dynamics. Its design incorporates features tailored for track day performance, including adjustments optimized for Nordschleife conditions and the use of track day tires, ensuring superior grip and responsiveness.

This coilover kit is a direct fit for 2005-2008 Dodge Magnum models equipped with V8 engines, providing a bolt-on upgrade that does not require extensive modifications. It is suitable for both street and track use, offering a versatile solution for drivers who demand performance without sacrificing daily drivability. The kit includes adjustable top mounts (optional), allowing for suspension geometry tuning based on tire choice and driving style. Ideal for track days, spirited driving, or improving handling on the street, this coilover system delivers a balanced combination of comfort, control, and performance.

Overview

KW Clubsport 2-Way Coilover Kit for the 2005-2008 Dodge Magnum RWD V8 were developed for customers, who demand a better handling car when participating in track day events, but also require an official road approval to use their car every day. The setup was specifically designed for the Nordschleife using track day tires. By using the optional available adjustable top mounts, the suspension geometry can be adjusted to the requirements of tires and the intended use. The mentioned adjustment options combined with the independently adjustable rebound and compression Dampening technology allow individual setup adjustments according to the vehicle load, tire characteristics and different track conditions. The W Clubsport 2 Way Coilover Kit meets every demand regarding a coilover for the usage on the road and the race track. KW Clubsport Coilovers guarantees excellent handling, best performance, highest agility and fantastic lap times.

Standard Features

  • KW suspensions clubsport coilovers are hand built by our expert team and given a uniquely individual serial number at our headquarters in Fichtenberg, Germany
  • Each damper is dyno tested to ensure accuracy and preset to our recommended setting before being release for delivery.
  • Solid aluminum unibal top mounts improve steering feedback by minimizing deflection while providing camber adjustability when applicable.
  • Road legal motorsports technology featuring independent rebound and compression adjustability with application specific track focused linear race springs and matched damper tuning.
  • TVR-A (Twin Valve Rebound - Adjustable) technology - allows oil to flow passed an adjustable, conical low-speed bypass during slow damper speeds, while at higher speed, the main rebound stage valve opens for maximum fluid displacement.
  • TVC-A (Twin Valve Compression - Adjustable) technology - patented compression valve allows fine tuning of low speed. During sudden high piston speeds, the low speed needle and main valve blow-off feature open to maximize flow.
  • Composite spring perch made from wear-resistant, friction-optimized polyamide composite encompassing a stainless-steel insert. The polyamide composite prevents oxidation while the stainless-steel insert maximizes strength.
  • Inox-Line Stainless Steel - Truly Permanent Corrosion Resistance. Inox-Line coatings will not wear off while adjusting the suspension making KW coilover struts 100 percent corrosion resistant with an unlimited lifespan.
Specifications
Part Number 35227816
Part Name Clubsport 2-Way Coilover Kit
UPC 842607066771
Vehicle 2005-2008 Dodge Magnum RWD V8
Front Lowering Rate 0.8 - 2.0 in.
Rear Lowering Rate 0.9 - 2.1 in.
Height Adjustable Yes
Damping Adjustable Yes
Adjustment Type 2-Way
Front Spring Rates 10.18 Kg/mm (570 lbs/in)
Rear Spring Rates Progressive
Vehicle Fitment
  • 2005 Dodge Magnum RWD V8
  • 2006 Dodge Magnum RWD V8
  • 2007 Dodge Magnum RWD V8
  • 2008 Dodge Magnum RWD V8
