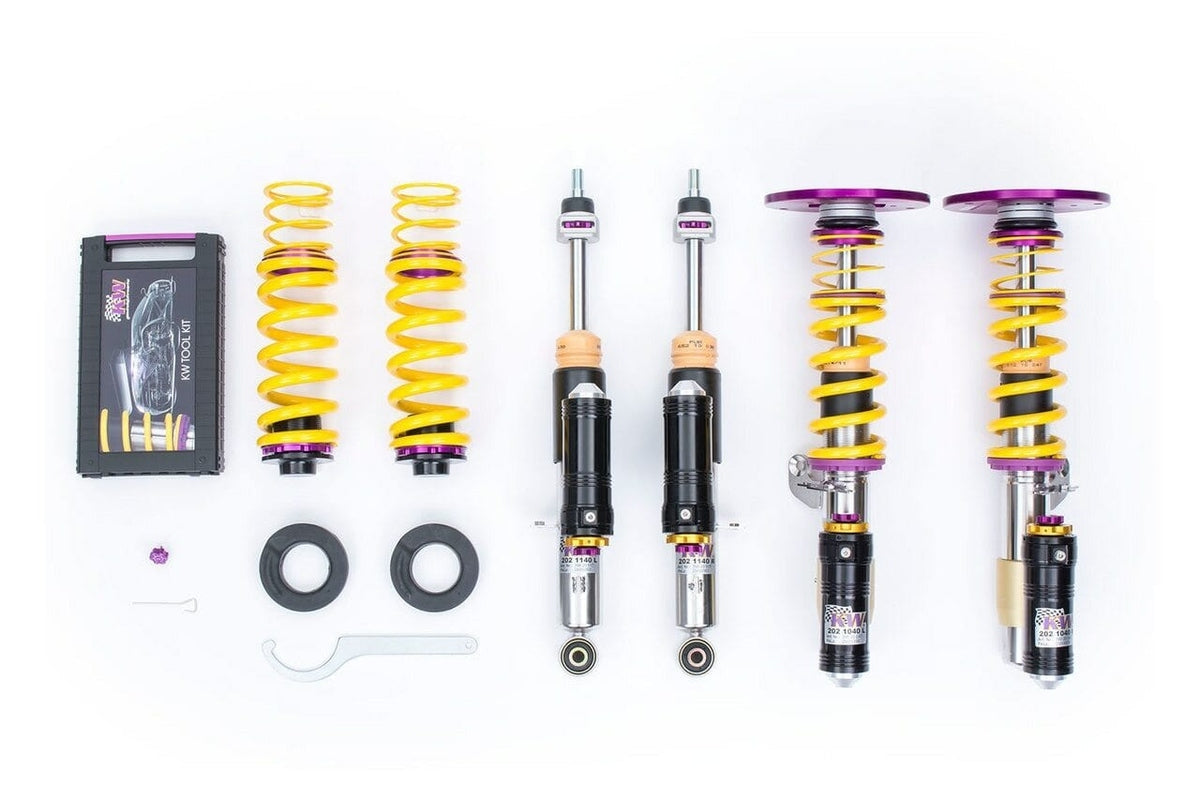

KW Clubsport 2-Way Coilover Kit - 2012-2015 Mini Cooper

KW Clubsport 2-Way Coilover Kit - 2012-2015 Mini Cooper

35220850

Out of stock

$4,154.00 USD
$4,154.00 USD $4,154.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The KW Clubsport 2-Way Coilover Kit for the 2012-2015 Mini Cooper is a high-performance suspension upgrade designed to enhance handling and stability. Engineered for track enthusiasts who also require road legality, this coilover kit offers adjustable damping and ride height to optimize performance on both street and circuit. Built with high-quality materials, the kit features a twin-tube design that provides precise control and durability. The adjustable top mounts allow for fine-tuning of suspension geometry, accommodating different tire setups and driving conditions. This setup delivers improved cornering, reduced body roll, and enhanced feedback, making it ideal for spirited driving and track day use.

Designed specifically for 2012-2015 Mini Cooper models, this coilover kit is compatible with various chassis codes and engine configurations. It is a direct bolt-on replacement for the factory suspension, requiring no major modifications for installation. The kit includes coilover struts with adjustable damping, springs, and optional top mounts for geometry adjustments. Suitable for street, track, or spirited driving, this coilover kit provides a versatile upgrade that balances performance and road legality. Properly installed, it offers a significant upgrade in handling dynamics for enthusiasts seeking a more responsive driving experience.

Overview

KW Clubsport 2-Way Coilover Kit for the 2012-2015 Mini Cooper were developed for customers, who demand a better handling car when participating in track day events, but also require an official road approval to use their car every day. The setup was specifically designed for the Nordschleife using track day tires. By using the optional available adjustable top mounts, the suspension geometry can be adjusted to the requirements of tires and the intended use. The mentioned adjustment options combined with the independently adjustable rebound and compression Dampening technology allow individual setup adjustments according to the vehicle load, tire characteristics and different track conditions. The W Clubsport 2 Way Coilover Kit meets every demand regarding a coilover for the usage on the road and the race track. KW Clubsport Coilovers guarantees excellent handling, best performance, highest agility and fantastic lap times.

Standard Features

  • KW suspensions clubsport coilovers are hand built by our expert team and given a uniquely individual serial number at our headquarters in Fichtenberg, Germany
  • Each damper is dyno tested to ensure accuracy and preset to our recommended setting before being release for delivery.
  • Solid aluminum unibal top mounts improve steering feedback by minimizing deflection while providing camber adjustability when applicable.
  • Road legal motorsports technology featuring independent rebound and compression adjustability with application specific track focused linear race springs and matched damper tuning.
  • TVR-A (Twin Valve Rebound - Adjustable) technology - allows oil to flow passed an adjustable, conical low-speed bypass during slow damper speeds, while at higher speed, the main rebound stage valve opens for maximum fluid displacement.
  • TVC-A (Twin Valve Compression - Adjustable) technology - patented compression valve allows fine tuning of low speed. During sudden high piston speeds, the low speed needle and main valve blow-off feature open to maximize flow.
  • Composite spring perch made from wear-resistant, friction-optimized polyamide composite encompassing a stainless-steel insert. The polyamide composite prevents oxidation while the stainless-steel insert maximizes strength.
  • Inox-Line Stainless Steel - Truly Permanent Corrosion Resistance. Inox-Line coatings will not wear off while adjusting the suspension making KW coilover struts 100 percent corrosion resistant with an unlimited lifespan.
Specifications
Part Number 35220850
Part Name Clubsport 2-Way Coilover Kit
UPC 842607066719
Vehicle 2012-2015 Mini Cooper
Front Lowering Rate 1.0 - 2.2 in.
Rear Lowering Rate 1.2 - 1.5 in.
Height Adjustable Yes
Damping Adjustable Yes
Adjustment Type 2-Way
Front Spring Rates 8.12 Kg/mm (455 lbs/in)
Rear Spring Rates 8.12 Kg/mm (455 lbs/in)
Vehicle Fitment
  • 2012 Mini Cooper
  • 2013 Mini Cooper
  • 2014 Mini Cooper
  • 2015 Mini Cooper
