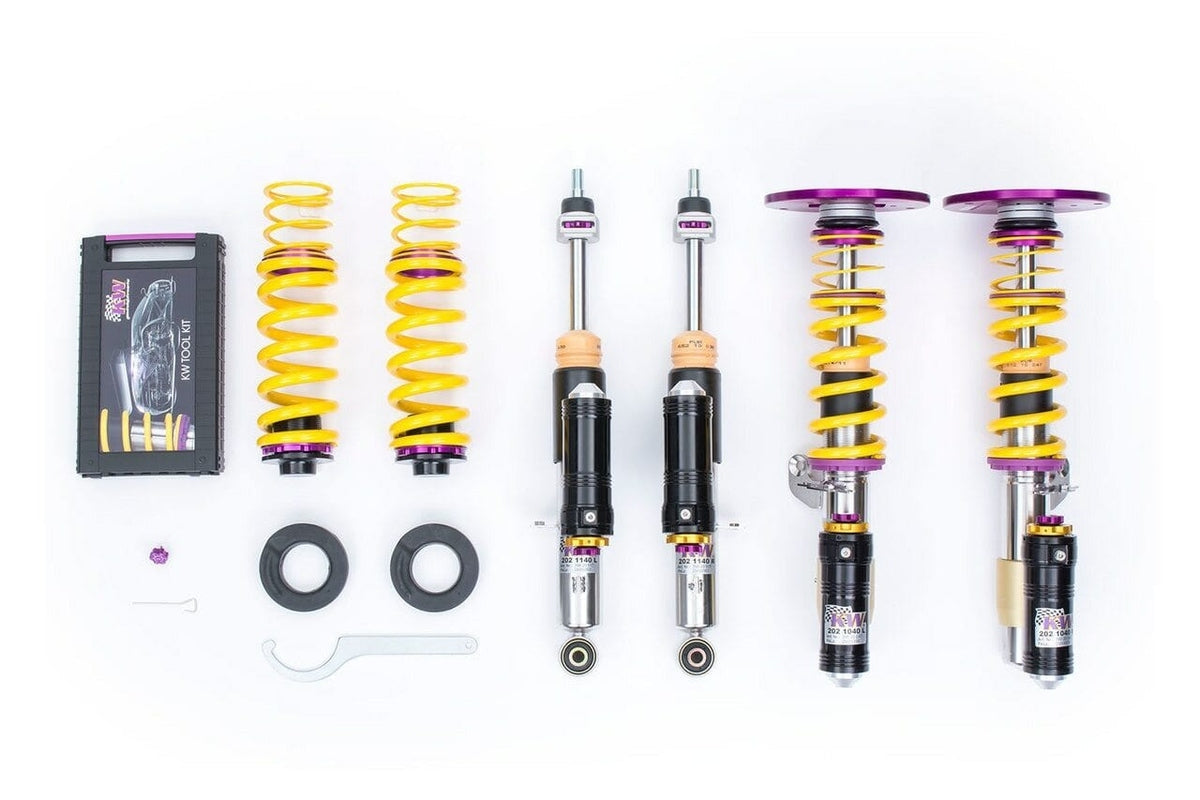

KW Clubsport 2-Way Coilover Kit - 2014-2015 BMW 4 Series

KW Clubsport 2-Way Coilover Kit - 2014-2015 BMW 4 Series

3522080E

Out of stock

$4,584.00 USD
$4,584.00 USD $4,584.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The KW Clubsport 2-Way Coilover Kit for the 2014-2015 BMW 4 Series is a high-performance suspension upgrade designed for enthusiasts seeking improved handling on both track and street. Engineered with a focus on track day performance, this coilover kit was developed specifically for the Nordschleife using track day tires, ensuring optimal setup for aggressive driving. Constructed with high-quality materials, the kit features adjustable damping and ride height, allowing for precise tuning to match driving preferences and conditions. The inclusion of optional adjustable top mounts provides further customization of suspension geometry, enhancing cornering stability and overall responsiveness. This coilover system delivers a balanced combination of performance, durability, and road legality, making it suitable for spirited driving and competitive track use.

Designed to fit 2014-2015 BMW 4 Series models with rear-wheel drive, this coilover kit is a direct replacement for the factory suspension. It is compatible with various chassis codes within this model range and is ideal for drivers seeking a significant handling upgrade without sacrificing daily usability. The kit is suitable for street, track, and spirited driving, offering adjustable settings for personalized performance. Installation involves replacing the stock components with the coilovers, and the kit includes all necessary hardware for a straightforward upgrade. Whether for track days or enhanced street performance, this KW Clubsport coilover system provides precise control and improved vehicle dynamics.

Overview

KW Clubsport 2-Way Coilover Kit for the 2014-2015 BMW 4 Series RWD were developed for customers, who demand a better handling car when participating in track day events, but also require an official road approval to use their car every day. The setup was specifically designed for the Nordschleife using track day tires. By using the optional available adjustable top mounts, the suspension geometry can be adjusted to the requirements of tires and the intended use. The mentioned adjustment options combined with the independently adjustable rebound and compression Dampening technology allow individual setup adjustments according to the vehicle load, tire characteristics and different track conditions. The W Clubsport 2 Way Coilover Kit meets every demand regarding a coilover for the usage on the road and the race track. KW Clubsport Coilovers guarantees excellent handling, best performance, highest agility and fantastic lap times.

Standard Features

  • KW suspensions clubsport coilovers are hand built by our expert team and given a uniquely individual serial number at our headquarters in Fichtenberg, Germany
  • Each damper is dyno tested to ensure accuracy and preset to our recommended shock settings before being released for delivery.
  • Solid aluminum unibal top mounts improve steering feedback by minimizing deflection while providing camber adjustability when applicable.
  • Road legal motorsports technology featuring independent rebound and compression adjustability with application specific track focused linear race springs and matched damper tuning.
  • TVR-A (Twin Valve Rebound - Adjustable) technology - allows oil to flow passed an adjustable, conical low-speed bypass during slow damper speeds, while at higher speed, the main rebound stage valve opens for maximum fluid displacement.
  • TVC-A (Twin Valve Compression - Adjustable) technology - patented compression valve allows fine tuning of low speed. During sudden high piston speeds, the low speed needle and main valve blow-off feature open to maximize flow.
  • Composite spring perch made from wear-resistant, friction-optimized polyamide composite encompassing a stainless-steel insert. The polyamide composite prevents oxidation while the stainless-steel insert maximizes strength.
  • Inox-Line Stainless Steel - Truly Permanent Corrosion Resistance. Inox-Line coatings will not wear off while adjusting the suspension making KW coilover struts 100 percent corrosion resistant with an unlimited lifespan.
Specifications
Part Number 3522080E
Part Name Clubsport 2-Way Coilover Kit
UPC 847691032909
Vehicle 2014-2015 BMW 4 Series RWD
Front Lowering Rate 1.5 - 2.5 in.
Rear Lowering Rate 1.2 - 2.3 in.
Height Adjustable Yes
Damping Adjustable Yes
Adjustment Type 2-Way
Front Spring Rates 8.16 Kg/mm (457 lbs/in)
Rear Spring Rates 12.23 Kg/mm (685 lbs/in)
Notes For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW.
Vehicle Fitment
  • 2014 BMW 4 Series RWD
  • 2015 BMW 4 Series RWD
