KW Suspension Club sport Kit 3 Way | 2013-2022 Subaru BRZ/Scion FR-S/Toyota GR86/86 (39758204)

KW Suspension Club sport Kit 3 Way | 2013-2022 Subaru BRZ/Scion FR-S/Toyota GR86/86 (39758204)

39758204

Out of stock

$6,894.00 USD
$6,894.00 USD $6,894.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The KW Suspension Club Sport Kit 3 Way for the 2013-2022 Subaru BRZ, Scion FR-S, Toyota GR86, and 86 is a high-performance coilover suspension system designed for enthusiasts seeking precise handling and adjustable ride characteristics. Developed using rigorous testing on the Northcliffe track and a 7-post rig, this kit offers comprehensive adjustment capabilities, including low-speed and high-speed compression damping via KW's patented two-way adjustment system. Constructed with durable materials and featuring a coilover design, it enhances vehicle stability, reduces body roll, and improves overall handling dynamics. The kit's adjustable features allow for fine-tuning to match specific driving conditions, whether for street use or track days, delivering a balance of comfort and performance.

Designed specifically for the aforementioned models within the 2013-2022 year range, this coilover kit is a direct bolt-on upgrade for vehicles equipped with the stock suspension. It considers wheel loads, vehicle weight, and chassis reinforcements to optimize handling and body stiffness. Suitable for street, track, or spirited driving, the kit provides a customizable suspension setup to meet various performance needs. Installation involves replacing the factory coilovers with the KW Club Sport components, which include all necessary hardware for a straightforward upgrade. This system is ideal for drivers seeking a versatile, adjustable suspension solution that enhances driving precision and vehicle control.

Overview

2013-2022 Subaru BRZ/Scion FR-S/Toyota GR86/86 Club sport Kit 3 Way by KW Suspension

Using the Northcliffe as its testing grounds and the 7-post rig, KW developed its 3-way Club sport coilover kit. Wheel loads, vehicle weight, and chassis reinforcements (for increased body stiffness) can all be taken into consideration with the adjustment capabilities of the 3-way Club sport. Similar to KW Competition 3-way coilovers, low-speed and high-speed compression adjustment is done via KW's patented two-valve control on the reservoir.

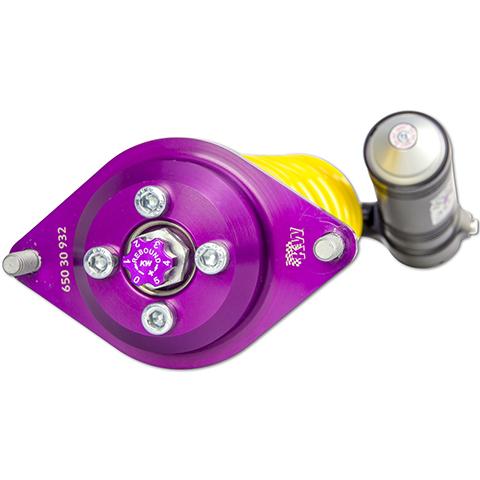

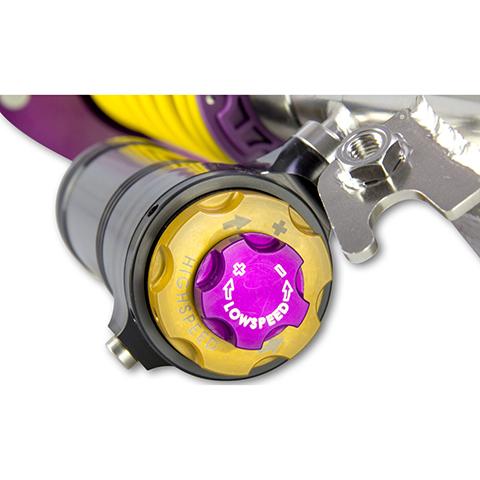

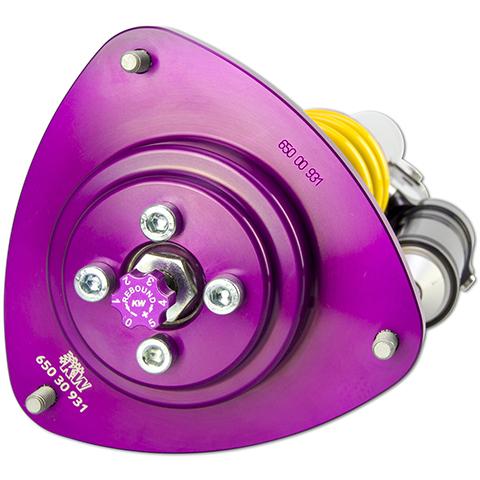

By hand, you can tune the low-speed compression damping with six precise clicks on the purple adjustment dial. The gold adjustment dial allows the user to change the high-speed compression damping with 14 precise clicks. The rebound adjustment is provided with 16 clicks, each providing a noticeable change. A reduction in rebound forces provides a more comfortable ride quality suitable for highway driving.

Features

  • 16 precise clicks in rebound adjustment dampening
  • Adjustable compression damping with 6 clicks in the low-speed range and 14 precise clicks in the high-speed range
  • Continuous lowering
  • TÃœV-tested adjustment range
  • High-quality components for long-term durability
  • Independent damping force adjustability with aluminum spherical bearing top mounts available

Benefits

  • Great Lowered Look
  • Improved Handling Performance and Feel

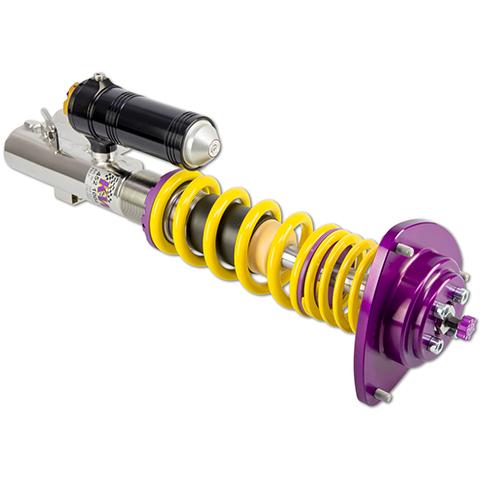

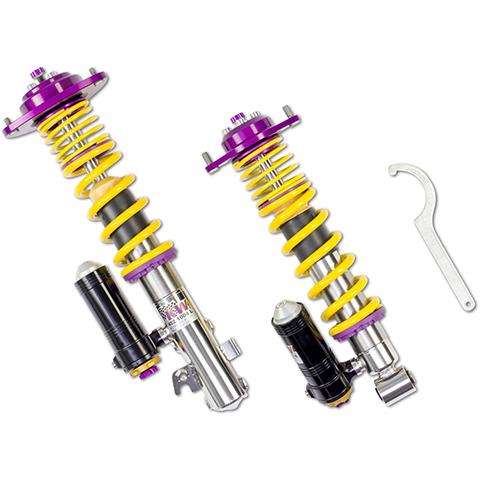

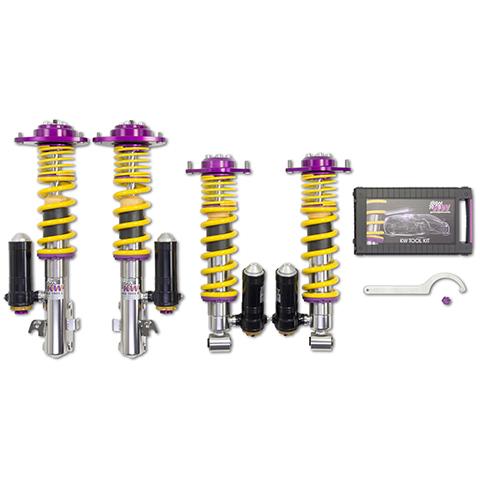

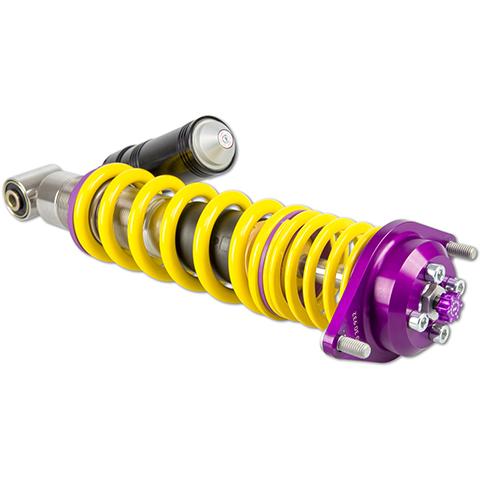

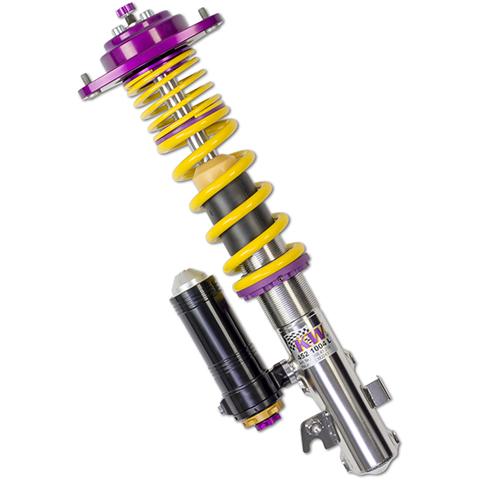

Please Note: These photos are generic and may not accurately represent the product that you receive.

Applications

  • 2013-2022 Subaru BRZ
  • 2013-2016 Scion FR-S
  • 2013-2021 Toyota 86
  • 2022 Toyota GR86

What's In The Box?

  • 1 - Coilover Kit

Warranty

  • KW Suspension's Limited Manufacturer's Warranty
View full details
