| Year | Make | Model |
|---|---|---|
| 2017 - 2020 | Fiat | 124 Spider Abarth |
| 2017 - 2020 | Fiat | 124 Spider Classica |
| 2017 - 2020 | Fiat | 124 Spider Lusso |
| 2019 - 2020 | Fiat | 124 Spider Urbana |
| 2020 | Mazda | MX-5 Miata 100th Anniversary Special Edition |
| 2016 - 2023 | Mazda | MX-5 Miata Club |
| 2016 - 2023 | Mazda | MX-5 Miata Grand Touring |
| 2020 | Mazda | MX-5 Miata RF 100th Anniversary Special Edition |
| 2017 - 2023 | Mazda | MX-5 Miata RF Club |
| 2017 - 2023 | Mazda | MX-5 Miata RF Grand Touring |
| 2016 - 2023 | Mazda | MX-5 Miata Sport |
1
/
of
8

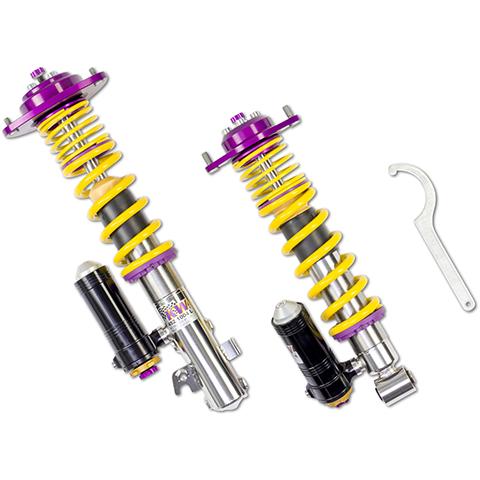

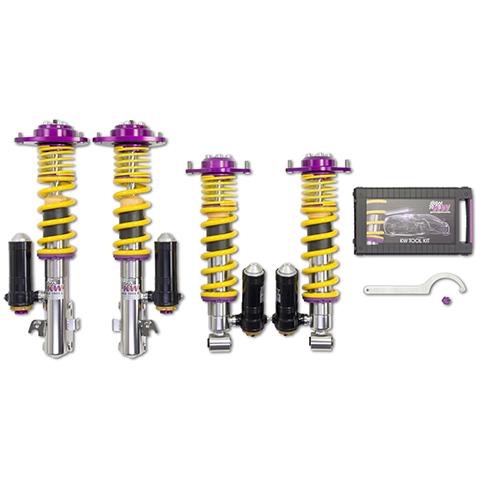

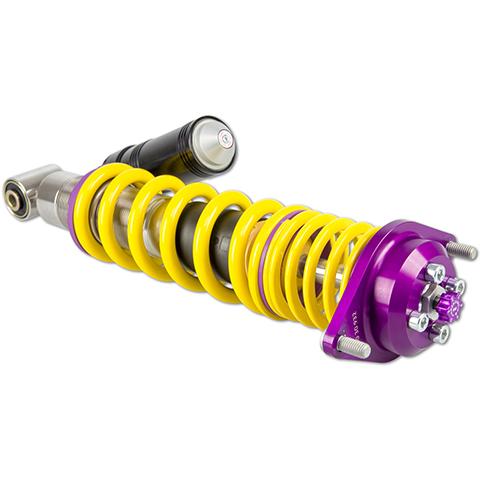

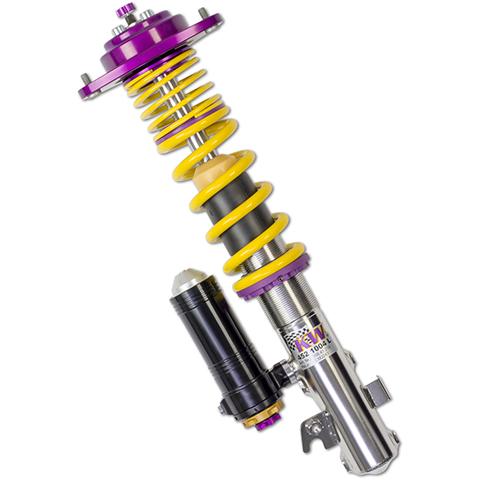

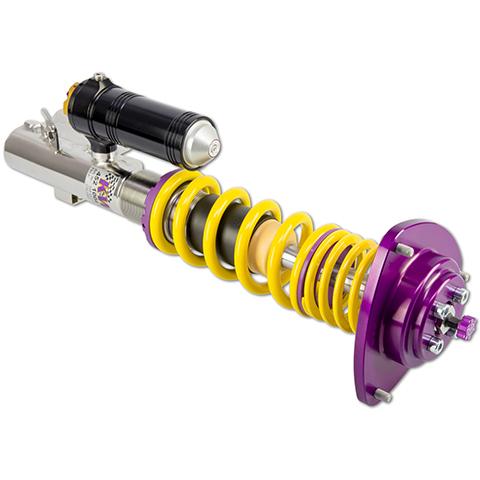

KW Suspension Coilover Kit V3 | 2016-2021 Mazda Miata and 2017-2020 Fiat 124 (35275020)
KW Suspension Coilover Kit V3 | 2016-2021 Mazda Miata and 2017-2020 Fiat 124 (35275020)
SKU:35275020
Out of stock
Regular price
$3,584.00 USD
Regular price
$3,584.00 USD
Sale price
$3,584.00 USD
Unit price
/
per
Couldn't load pickup availability
â–¶ Vehicle Fitments
The KW Suspension Coilover Kit V3 for 2016-2021 Mazda Miata and 2017-2020 Fiat 124 is a high-performance suspension upgrade designed for enthusiasts seeking precise handling and adjustable ride characteristics. Built with KW's renowned engineering, this coilover kit features a 3-way damping adjustment system, allowing users to fine-tune compression settings for low-speed and high-speed conditions. Developed using extensive testing on Northcliffe and 7-post rigs, the kit accounts for wheel loads, vehicle weight, and chassis reinforcements to enhance body stiffness and overall stability. The V3 coilovers deliver a combination of comfort and performance, making them suitable for spirited driving and track use. Their durable construction ensures long-lasting performance under demanding conditions.
Designed specifically for the Mazda Miata (2016-2021) and Fiat 124 (2017-2020), this coilover kit is a direct bolt-on upgrade that replaces factory components. It is ideal for street, track, or spirited driving, offering adjustable ride height and damping to optimize handling and stance. The kit includes all necessary components for installation, providing a comprehensive solution for suspension tuning. Compatibility considerations include vehicle weight and chassis reinforcement, ensuring optimal performance. Whether for daily driving or competitive motorsport, these KW V3 coilovers deliver precise control and enhanced driving dynamics.
Share
Overview
Overview
2016-2021 Mazda Miata and 2017-2020 Fiat 124 Club sport Kit 3 Way by KW Suspension
Using the Northcliffe as its testing grounds and the 7-post rig, KW developed it's 3-way Club sport coilover kit. Wheel loads, vehicle weight, and chassis reinforcements (for increased body stiffness) can all be taken into consideration with adjustment capabilities of the 3-way Club sport. Similar to KW Competition 3-way coilovers, low-speed and high-speed compression adjustment is done via KW's patented two-valve control on the reservoir.

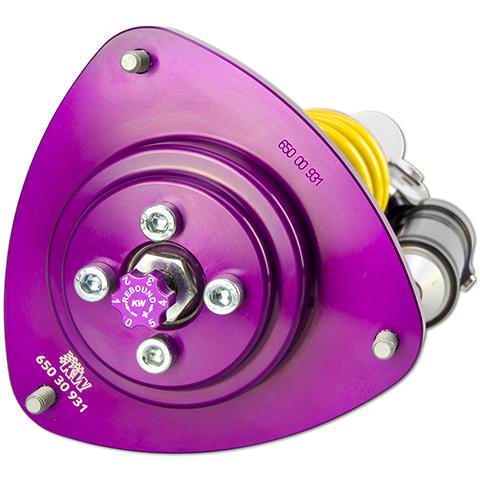

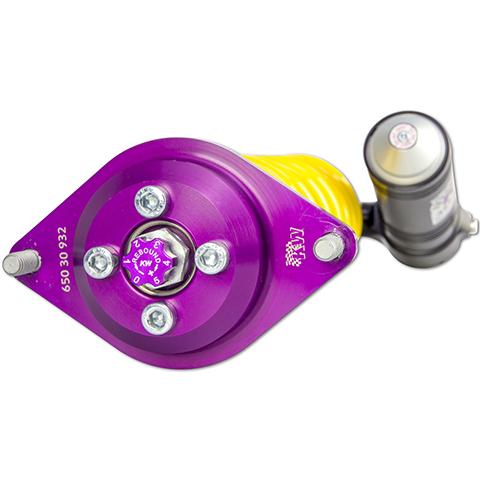

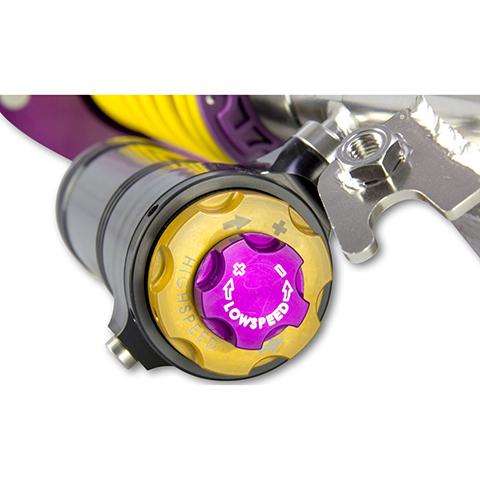

By hand, you can tune the low-speed compression damping with six precise clicks on the purple adjustment dial. The gold adjustment dial allows the user to change the high-speed compression damping with 14 precise clicks. Rebound adjustment is provided with 16 clicks, each providing a noticeable change. A reduction in rebound forces provides a more comfortable ride quality suitable for highway driving.
Features
- 16 precise clicks in rebound adjustment dampening
- Adjustable compression damping with 6 clicks in the low-speed range and 14 precise clicks in the high-speed range
- Continuous lowering
- TÃœV-tested adjustment range
- High-quality components for long-term durability
- Independent damping force adjustability with aluminum spherical bearing top mounts available
Benefits
- Great Lowered Look
- Improved Handling Performance and Feel
Please Note: These photos are generic and may not accurately represent the product that you receive.
Applications
- 2016-2021 Mazda Miata
- 2017-2020 Fiat 124
What's In The Box?
- 1 - Coilover Kit
Warranty
- KW Suspension's Limited Manufacturer's Warranty
