KW Variant 3 Adjustable Coilover Suspension Kit - 2009-2024 Nissan GT-R (R35)

Cutting-edge motorsports technology for more performance on the road. Like every suspension product developed by KW automotive, the suspension manufacturer, and manufactured in Germany, the KW V3 Coilover Suspension Kit for the 2009-2024 Nissan GT-R Skyline (R35) also provides a significant plus in safety reserves in road traffic. Thanks to the chassis with its high-quality dampers, springs, and elastomer spring elements, pitching and rolling movements during load changes such as evasive maneuvers, cornering, acceleration, and braking are significantly reduced. The braking distances are also shortened. Thanks to improved support and feedback, drivers not only feel safer but driving in everyday life becomes even safer. With compression and rebound stage damping, that can be set separately and independently of each other, the damper setup can be customized to your personal driving preferences or vehicle changes such as weight, tire characteristics, or altered vehicle rigidity. True performance optimization is only possible with this unique, patented system.

For example, this allows the compression damping force to be increased and get more grip from the tires, to improve cornering behavior and reduce squat without simultaneously altering the rebound stage damping which is optimally matched to the spring rate, a scenario which results in reduced grip and the associated loss of performance. The KW V3 Coilover Kit is the ideal tool for performance-oriented drivers and experienced tuning enthusiasts who place a strong emphasis on the overall performance of their suspension. The Variant 3 features patented TVR-A and TVC-A technology that provides separately adjustable rebound and compression damping. The extensive adjustment range of the independently configurable rebound and compression make it easy to directly influence the steering behavior, directional stability, grip and handling characteristics for confident and repeatable results at the limit of driving dynamics.

Standard Features

• V3 coilovers are hand built by our expert team and given a uniquely individual serial number at our headquarters in Fichtenberg, Germany. Each damper is dyno tested to ensure accuracy before being released for delivery.
• Road legal motorsports technology featuring independent rebound and compression adjustability and application specific spring and damper tuning resulting in unparalleled street performance.

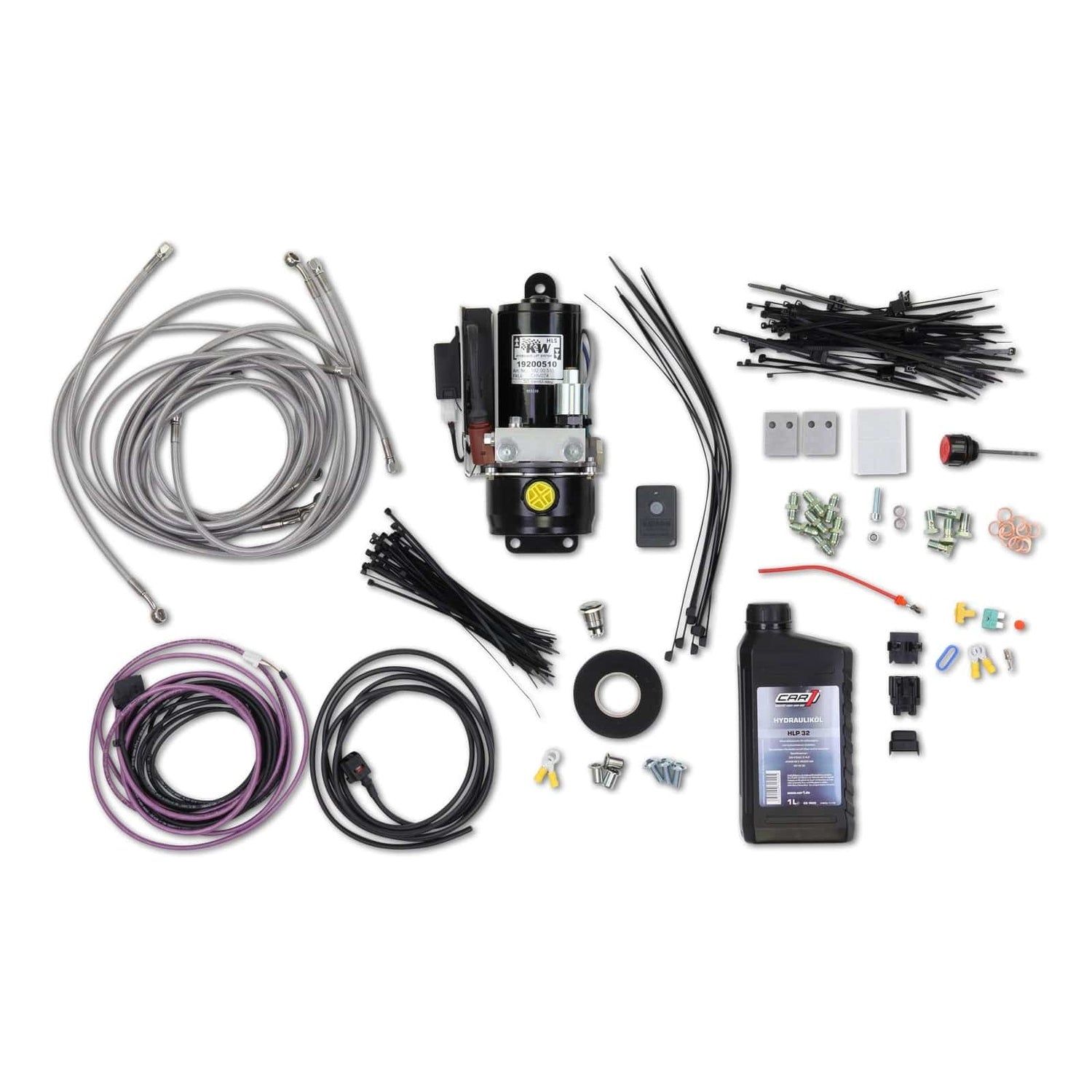

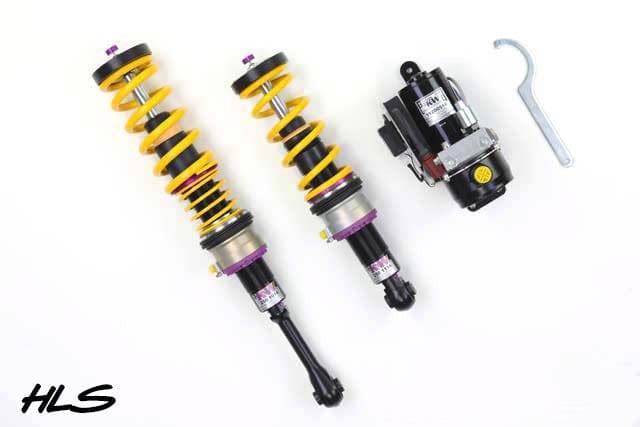

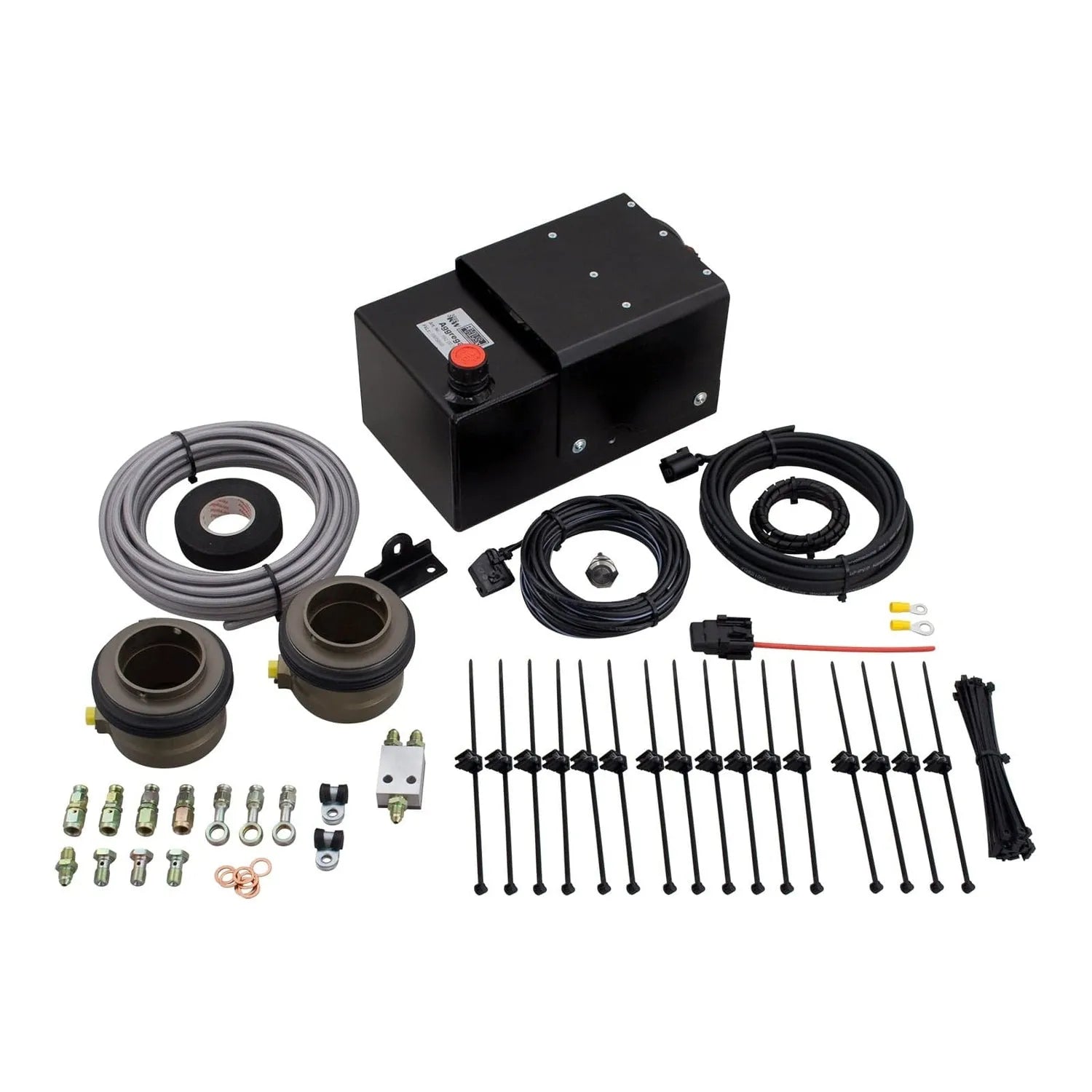

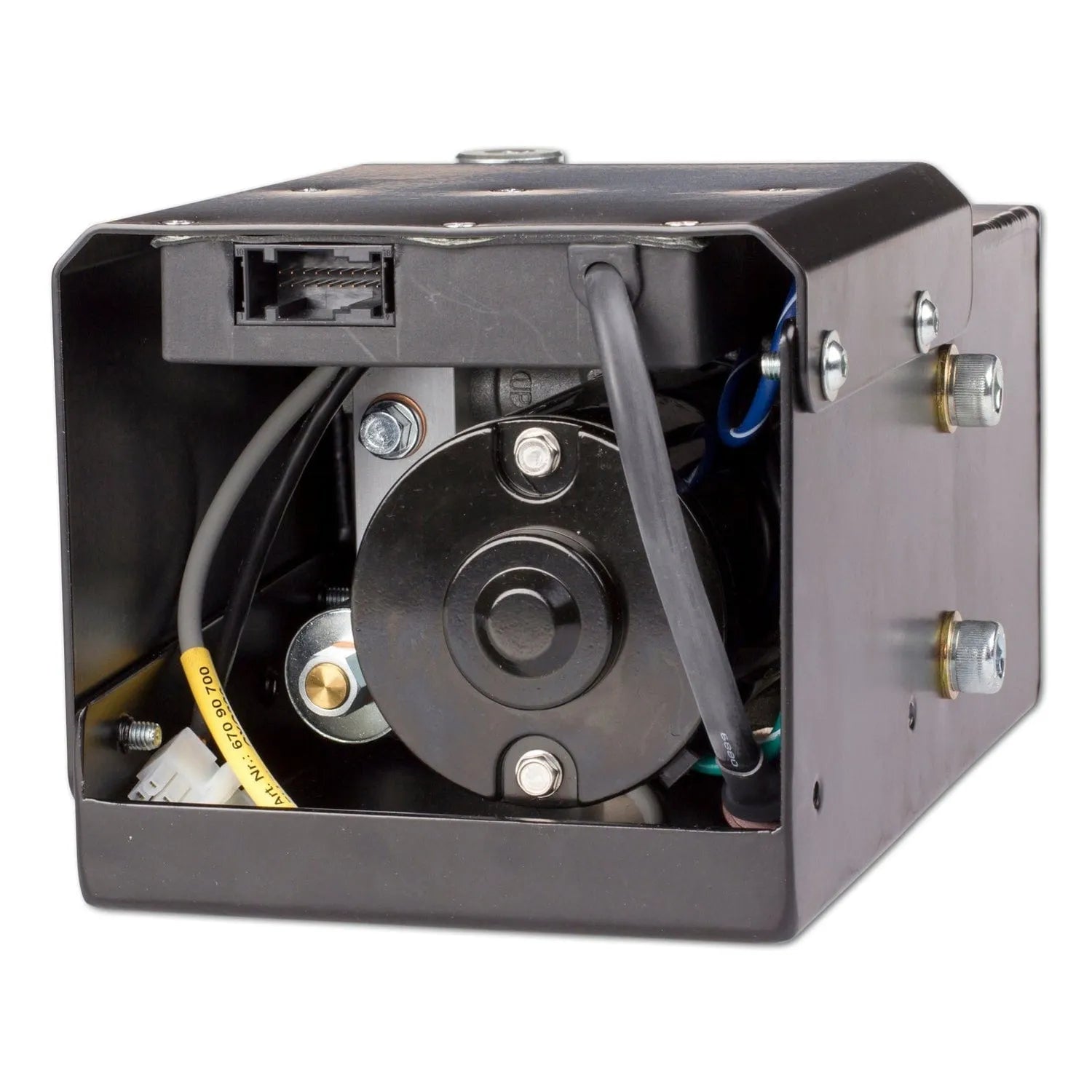

• Includes KW HLS2 hydraulic lift system for the front axle which increases ground clearance at the push of a button. The vehicle specific HLS system includes a self-contained pump and does not affect ride quality or handling.
• TVR-A (Twin Valve Rebound - Adjustable) technology - allows oil to flow passed an adjustable, conical low-speed bypass during slow damper speeds, while at higher speed, the main rebound stage valve opens for maximum fluid displacement.
• TVC-A (Twin Valve Compression - Adjustable) technology - patented compression valve allows fine tuning of low speed. During sudden high piston speeds, the low speed needle and main valve blow-off feature open to maximize flow.
• Composite spring perch made from wear-resistant, friction-optimized polyamide composite encompassing a stainless-steel insert. The polyamide composite prevents oxidation while the stainless-steel insert maximizes strength.
• Inox-Line Stainless Steel - Truly Permanent Corrosion Resistance. Inox-Line coatings will not wear off while adjusting the suspension making KW coilover struts 100 percent corrosion resistant with an unlimited lifespan.
• Seamless Ride Height Adjustment - the corrosion resistance of the Inox-line stainless steel and composite perches means easy ride height adjustability to help you dial in your preferred look.

Specifications

Vehicle Fitment

• 2009 Nissan GT-R
• 2010 Nissan GT-R
• 2011 Nissan GT-R
• 2012 Nissan GT-R
• 2013 Nissan GT-R
• 2014 Nissan GT-R
• 2015 Nissan GT-R
• 2016 Nissan GT-R
• 2017 Nissan GT-R
• 2018 Nissan GT-R
• 2019 Nissan GT-R
• 2020 Nissan GT-R
• 2021 Nissan GT-R
• 2022 Nissan GT-R
• 2023 Nissan GT-R
• 2024 Nissan GT-R
