KW Variant 5 Adjustable Coilover Suspension Kit - 2011-2022 Lamborghini Aventador

KW Variant 5 Adjustable Coilover Suspension Kit - 2011-2022 Lamborghini Aventador

30911007

Out of stock

$16,094.00 USD
$16,094.00 USD $16,094.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

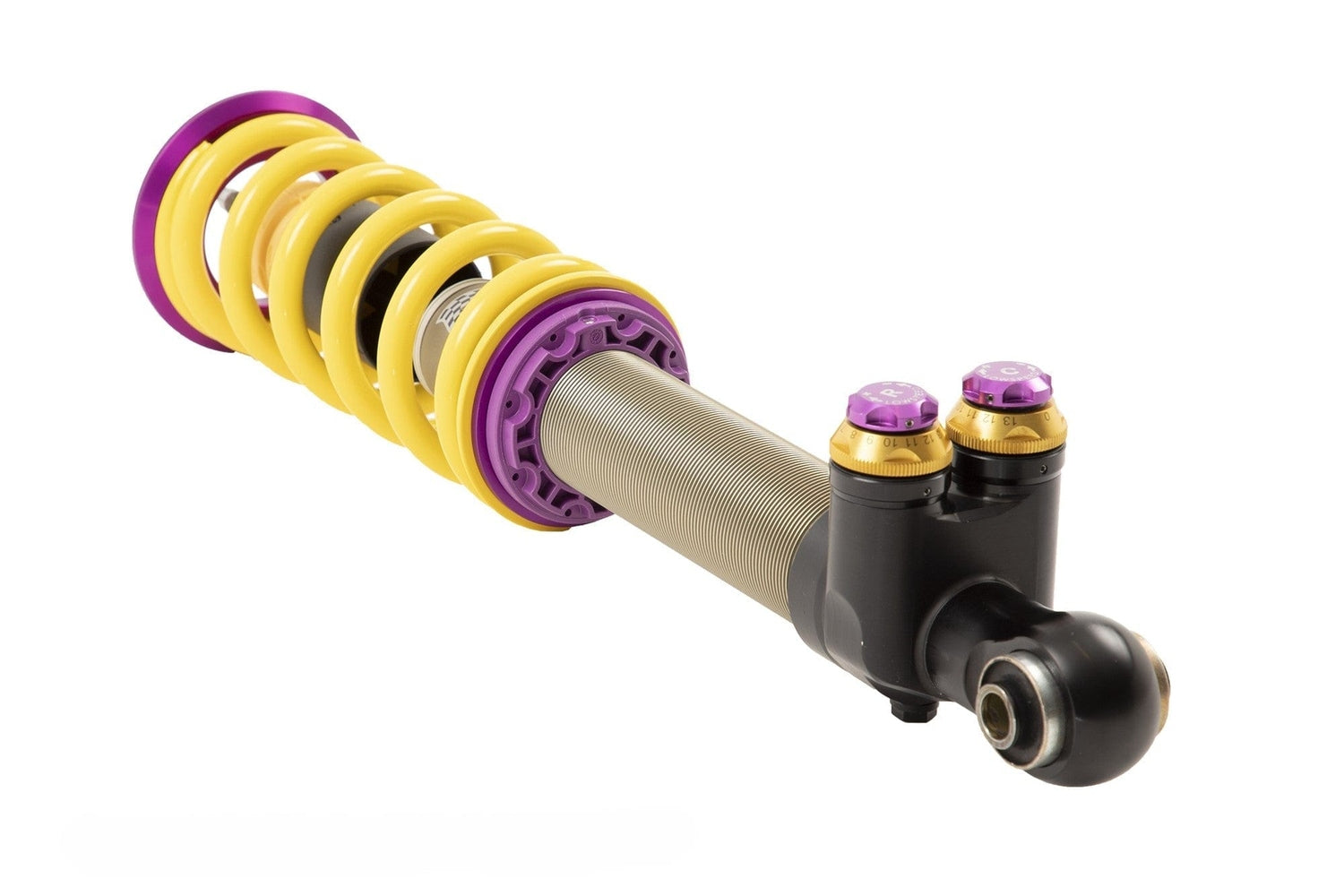

The KW Variant 5 Adjustable Coilover Suspension Kit is a high-performance suspension system designed for the 2011-2022 Lamborghini Aventador. Built with KW Solid Piston Technology and a modular damper valve design, this kit offers precise and rapid damping response essential for super sports cars. The series-connected valves and direct-reacting shock absorbers ensure minimal delay during dynamic driving maneuvers, providing enhanced handling, stability, and ride quality. Constructed from durable, high-quality materials, the coilovers are engineered to deliver consistent performance under demanding conditions, making them ideal for both spirited street driving and track use.

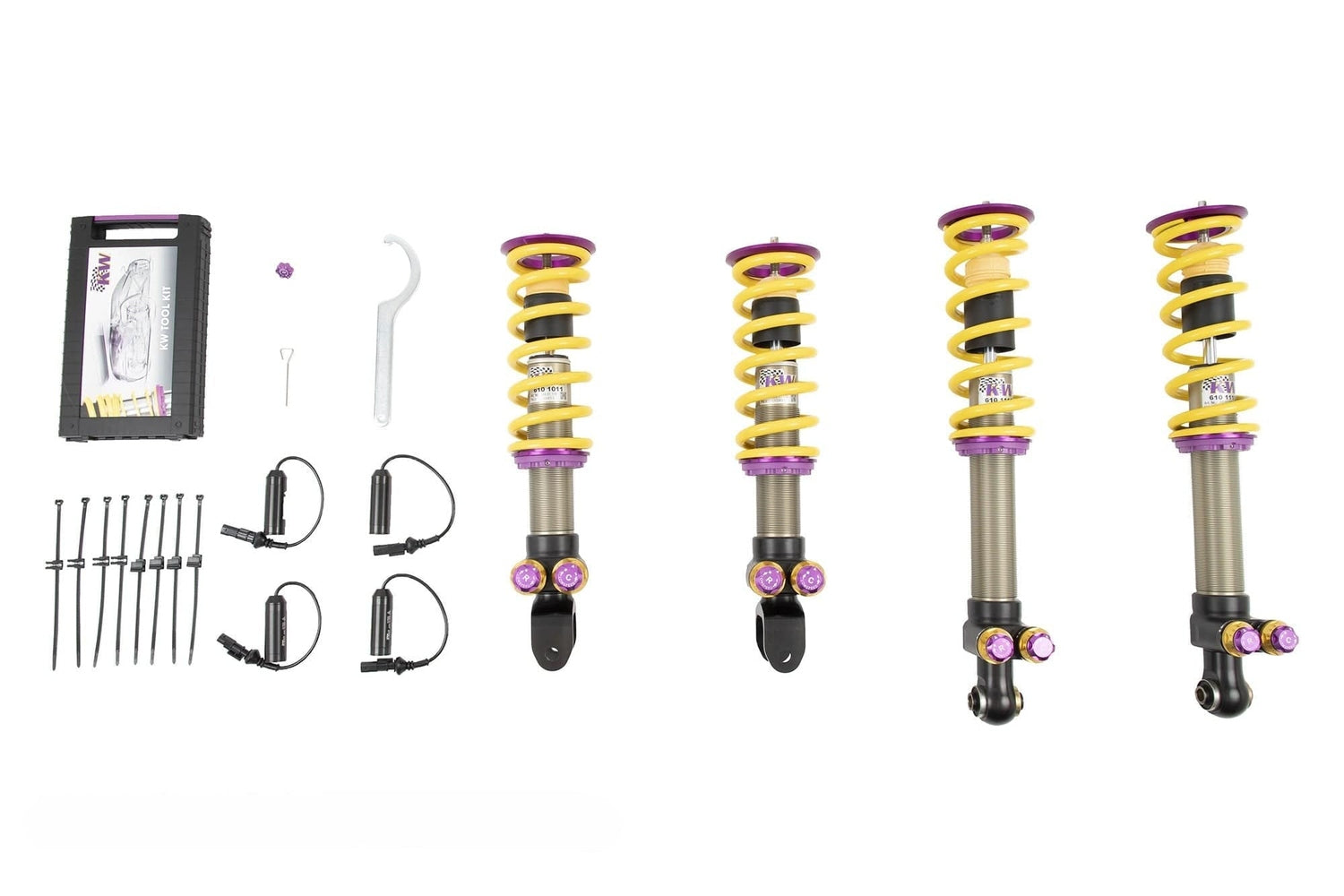

Designed specifically for 2011-2022 Lamborghini Aventador models, this coilover kit is a direct bolt-on upgrade that replaces the factory suspension components. It is suitable for owners seeking improved cornering, reduced body roll, and customizable ride height. The kit includes adjustable dampers and all necessary mounting hardware, allowing for fine-tuning of ride characteristics. Compatible with various chassis configurations, the KW V5 coilovers are perfect for enthusiasts aiming to optimize their supercar’s handling on both street and track environments.

Overview

By launching the new KW V5 Coilover Suspension Kit for your 2011-2022 Lamborghini Aventador, KW focuses on its successful motorsport suspension technology with KW Solid Piston Technology and modular design with damper valves connected in series. The KW V5 assures precise and fast damping without delay in sports cars and super sports cars. The shock absorbers and valves react directly, even with small spring travel, minimal steering movements, and minor road undulations. Every driving maneuver and every input, such as those generated during braking, acceleration, steering, load changes, and undulations, are damped much more precisely. The KW Solid Piston dampers provide much more platform support to the chassis than conventional dampers and thus, depending on the vehicle body allow for lower spring rates to be used.

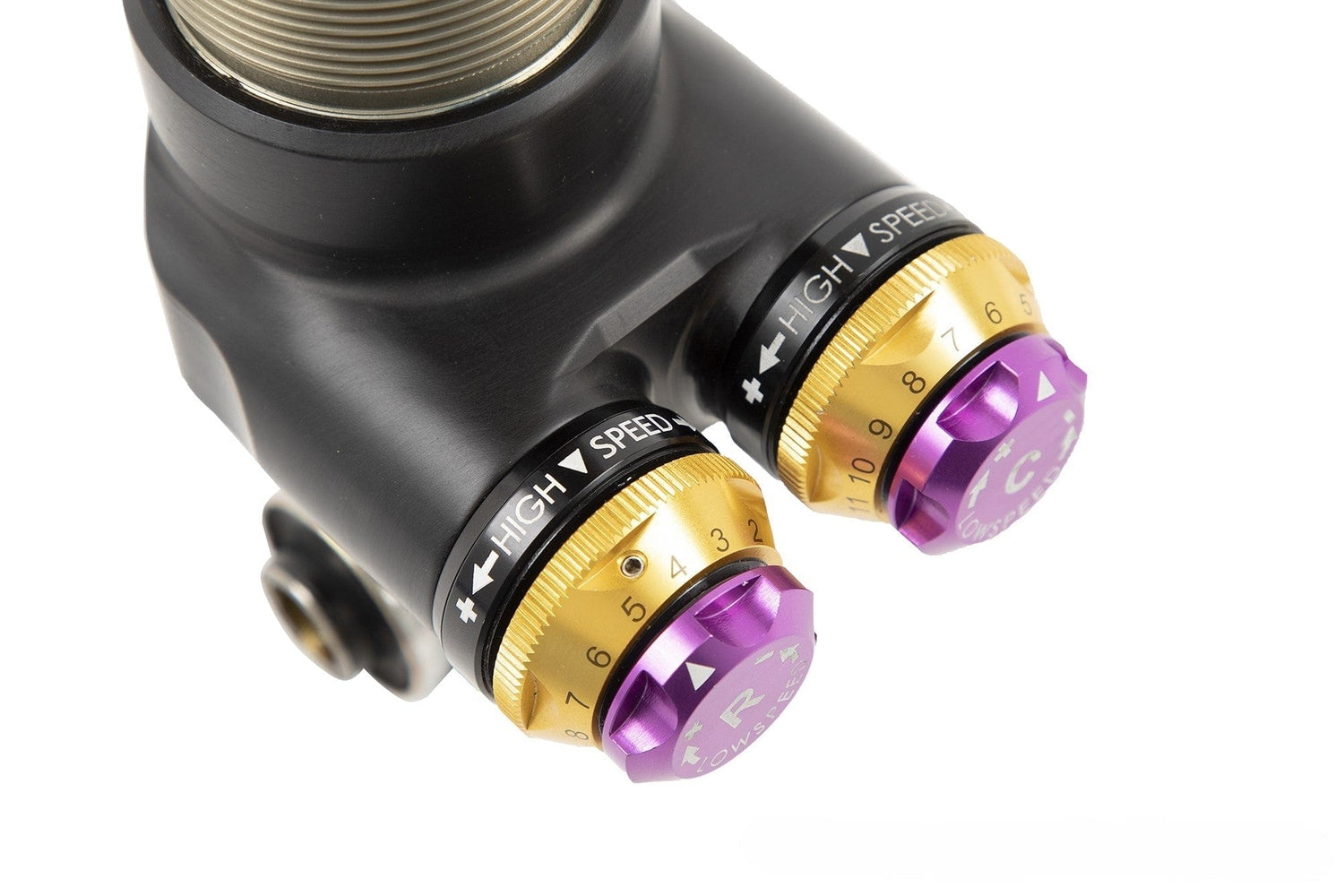

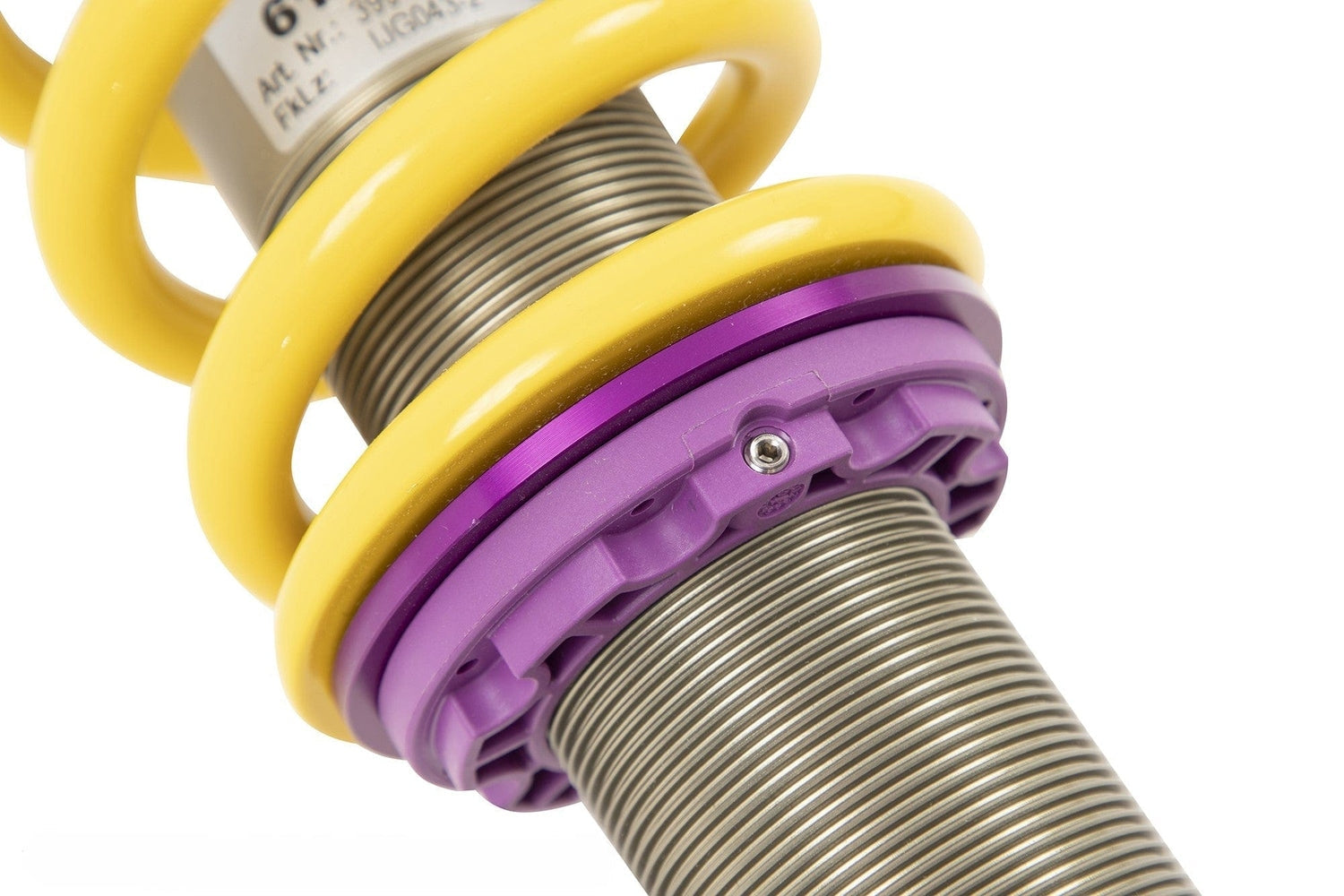

The KW V5 with adjustable KW SPCLH-A (KW Solid Piston Compression Low- and Highspeed Adjustable) compression damping and the KW SPRLH-A (KW Solid Piston Rebound Low- and Highspeed Adjustable) rebound damping offers significant added values: more sensitive damping, cavitation-free function, precise high-frequency damping, low-pressure gas range from 6 to 10 bar and low hysteresis. The low- and high-speed valve units in the KW V5 Coilover Suspension Kit, which are built-in series with different valve spring types and main valves, offer the freedom to individually adjust the compression and rebound damping with 13 exact clicks (14 characteristic curves) each in the low- and high-speed range. The KW Solid Piston Technology can also be used to cover a large force range when designing the characteristic curves; all the more reason to enable a completely new type of harmonious damping. The KW V5 allows a maximum or individual lowering within the tested adjustment range. Due to the dirt-resistant trapezoidal thread and the polyamide threaded ring, the continuous lowering can be varied quickly and easily, even after the years.

Standard Features

  • KW suspensions V5 coilovers are hand built by our expert team and given a uniquely individual serial number at our headquarters in Fichtenberg, Germany.
  • Each damper is dyno tested to ensure accuracy and preset to our recommended shock settings before being released for delivery.
  • Road legal motorsports technology featuring independent rebound and compression adjustability and application specific spring and damper tuning resulting in unparalleled street performance.
Specifications
Part Number 30911007
Part Name Variant 5 Adjustable Coilover Suspension Kit
UPC 840134913018
Vehicle 2012-2021 Lamborghini Aventador
Front Lowering Rate 0.6 - 1.4 in.
Rear Lowering Rate 0.2 - 1.0 in.
Front Spring Rates 7.14 Kg/mm (400 lbs/in)
Rear Spring Rates 9.20 Kg/mm (515 lbs/in)
Height Adjustable Yes
Damping Adjustable Yes
Adjustment Type 4-Way
Notes For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW.
Vehicle Fitment
  • 2012 Lamborghini Aventador
  • 2013 Lamborghini Aventador
  • 2014 Lamborghini Aventador
  • 2015 Lamborghini Aventador
  • 2016 Lamborghini Aventador
  • 2017 Lamborghini Aventador
  • 2018 Lamborghini Aventador
  • 2019 Lamborghini Aventador
  • 2020 Lamborghini Aventador
  • 2021 Lamborghini Aventador
