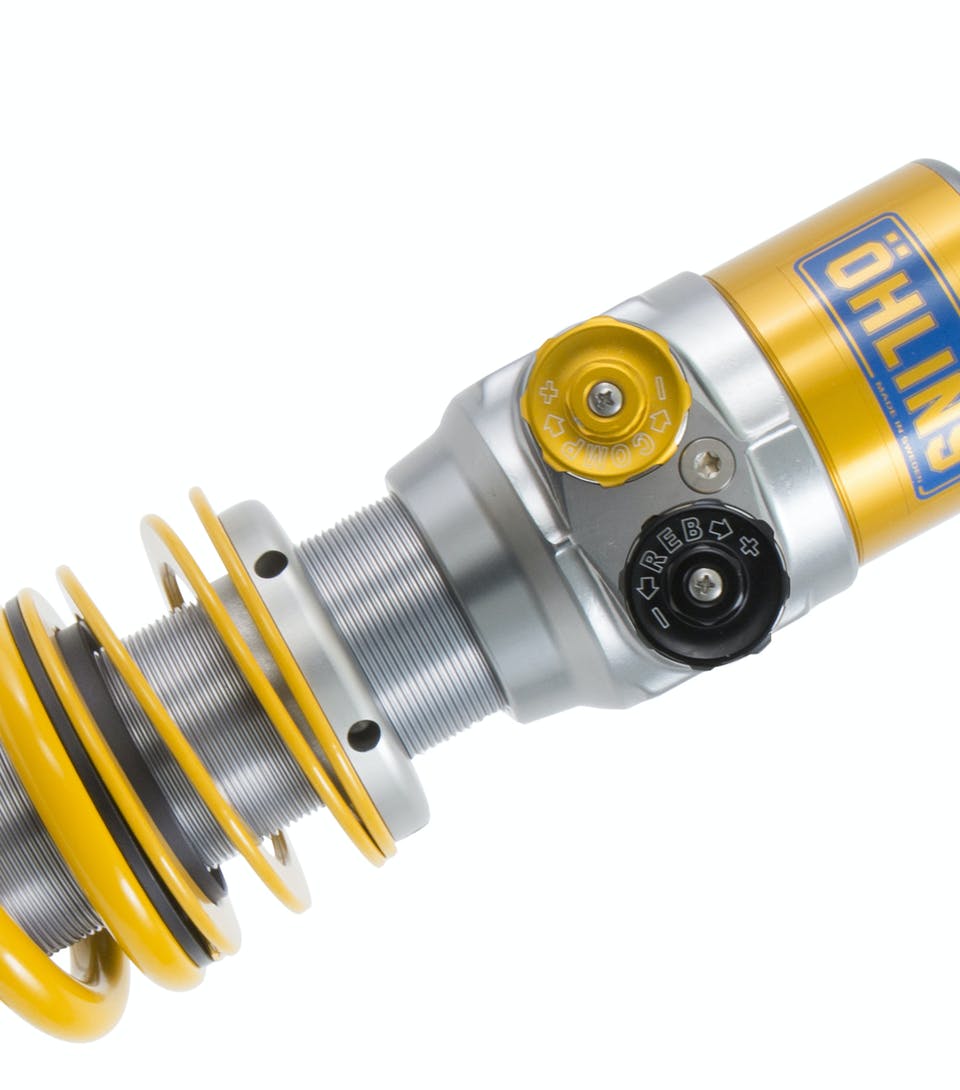

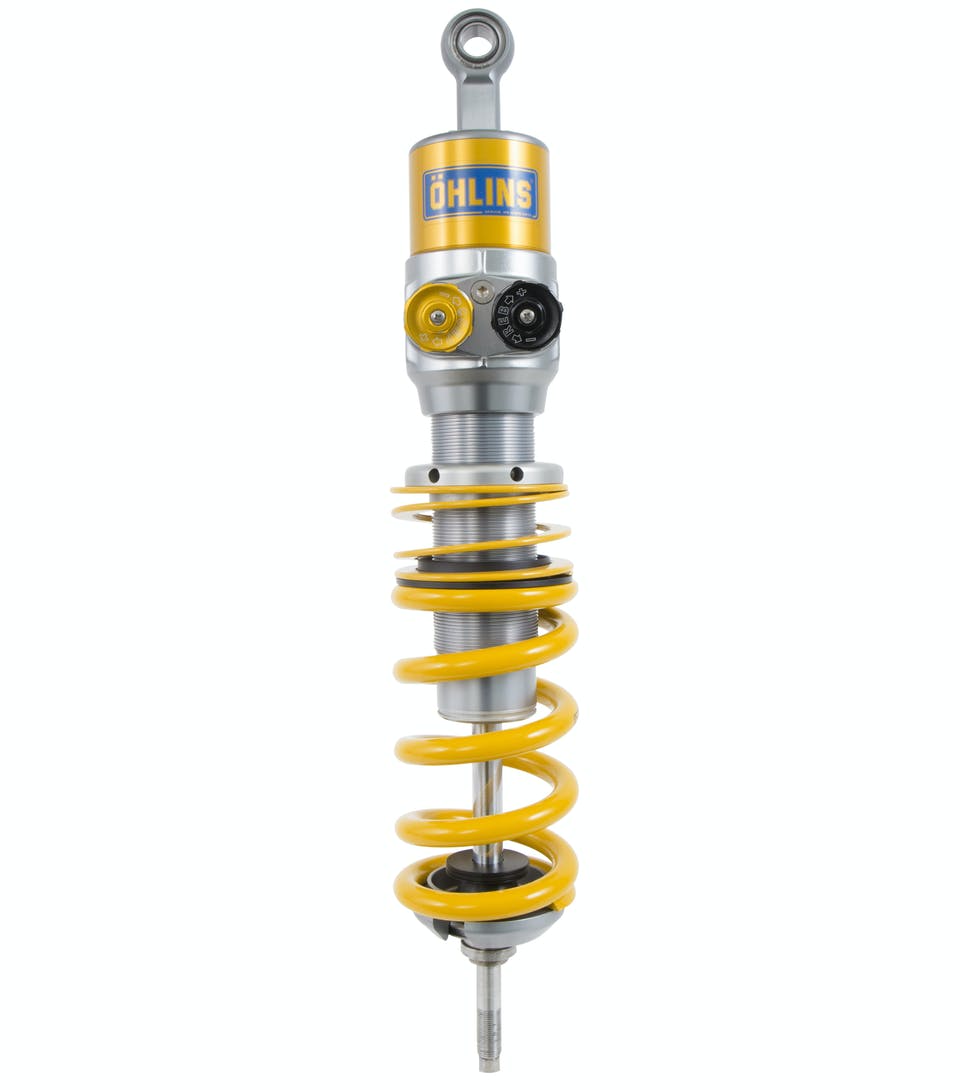

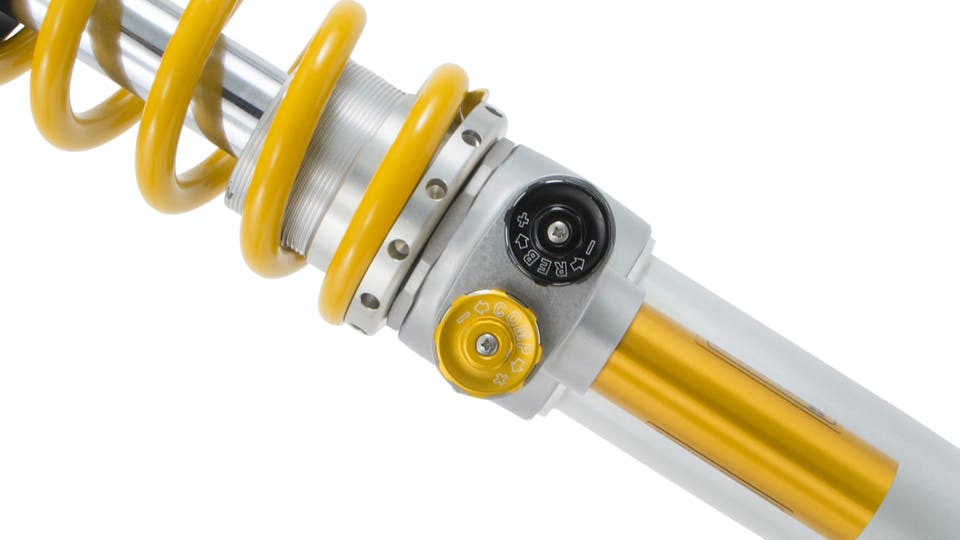

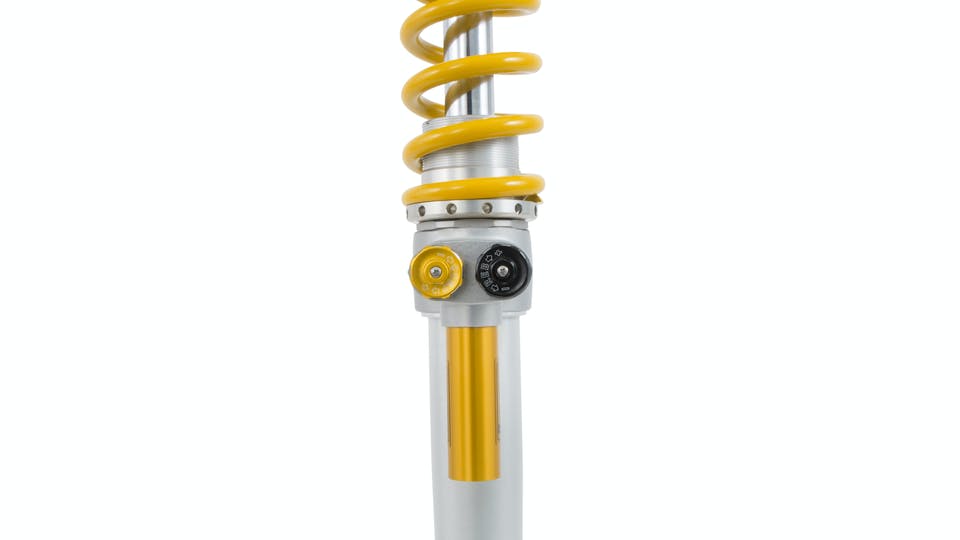

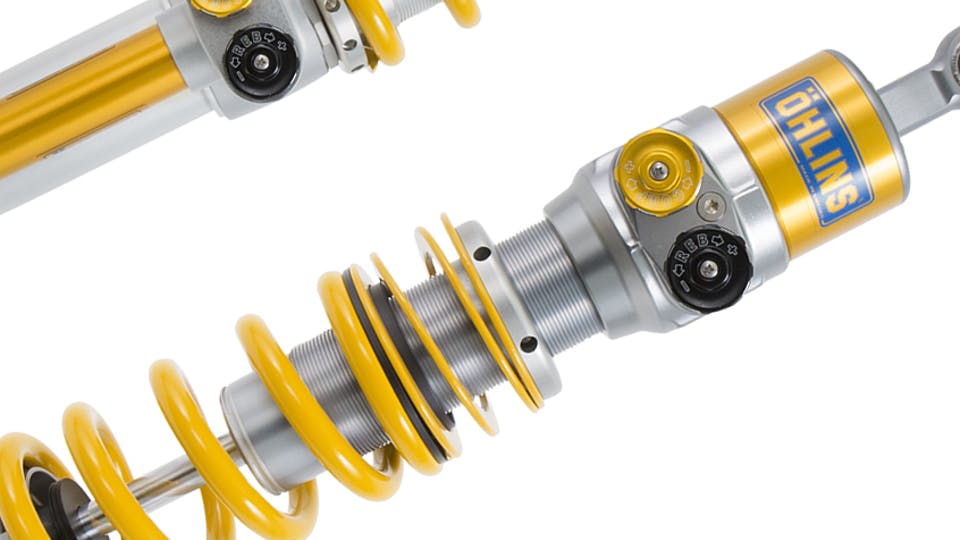

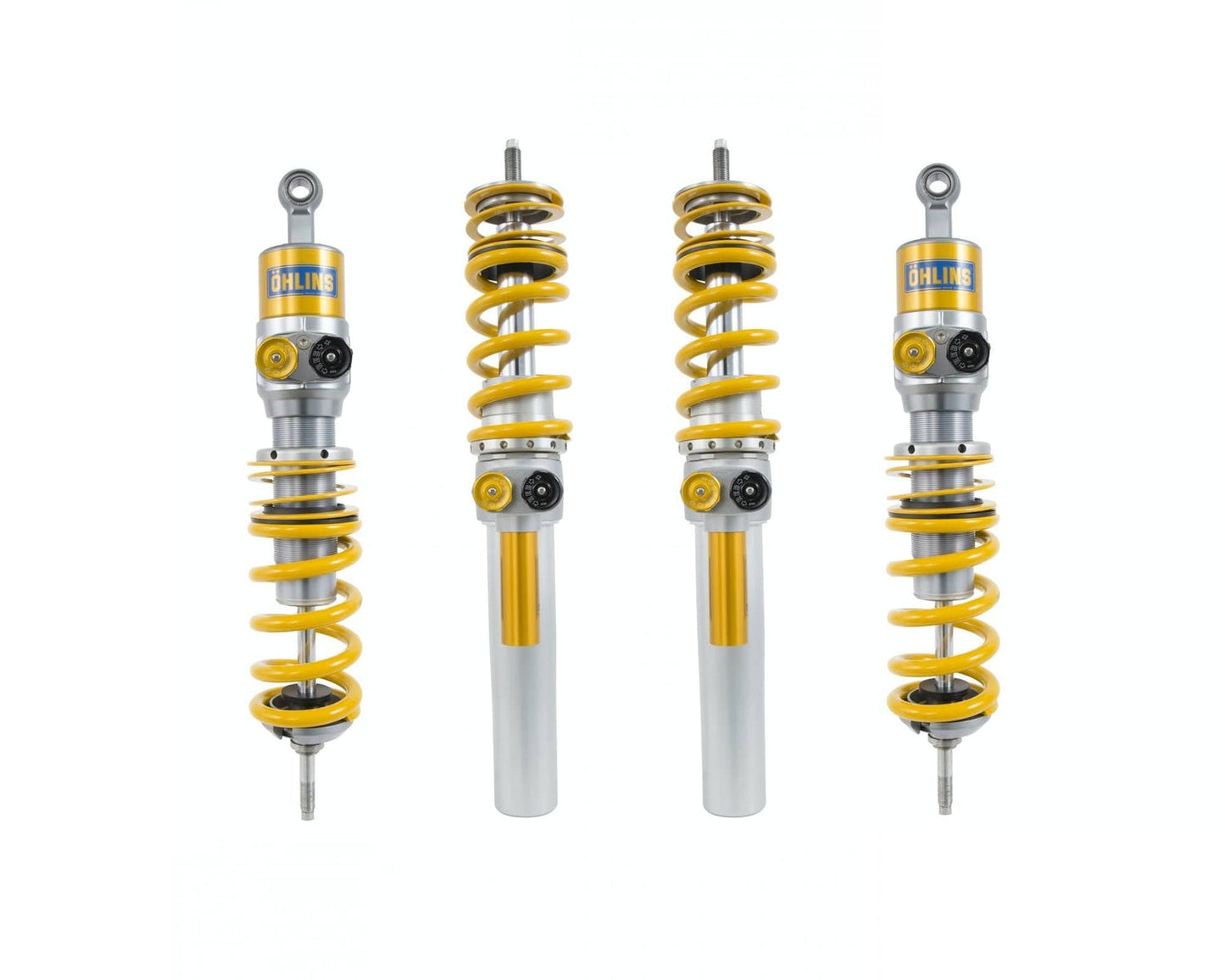

Ohlins TTX-PRO Coilovers - Porsche 911 GT3 991
Ohlins TTX-PRO Coilovers - Porsche 911 GT3 991
SKU:POF MR00S1
Couldn't load pickup availability
The Öhlins TTX-Pro Coilovers for the 2014-2019 Porsche 911 GT3 (991) have been developed for discerning club-level racers and track day aficionados looking to utilize identical technology as the pros use to maximize performance. The dampers are carefully chosen for each application from Öhlins professional TTX motorsport range and adapted to suit road-going cars where the focus is on track use. Öhlins TTX dampers are pressure balanced at every clicker setting without the need of excessive nitrogen pressure, resulting in a broad range of adjustability without cavitation. The vehicle-specific suspension settings have been rigorously tested to ensure they deliver on track, while being compliant for the journey back home. All dampers are truly independent in compression and rebound adjustability, providing owners the possibility to fine-tune their set-up according to the conditions of the track.
The benefits are immediately apparent: reduced weight and an improved grip and feel in the car like never before. As expected from Öhlins, only the highest quality materials are used. Each system is dyno matched to ensure consistent handling. If you’re looking to lap quicker through improved confidence in your car’s suspension, then look no further than Öhlins TTX-Pro range of suspension systems.
Features
- Patented TTX technology
- Multi-way adjustable damping
- Pressure balanced design
- Fully customizable spring rates (spring rates vary depending on application, custom spring rates are available)
- TTX Technology
- Developed for Track-Focused Cars
- Independent Damping Adjustment
- Pressure Balanced
- Dyno Matched
- Popular Applications
- Rebuildable
Specifications
Front | Rear | |
Technology: | TTX | TTX |
Target Ride Height Reduction: | 20mm | 20mm |
Additional Height Adjuster: | - | - |
Upper Mounts: | - | - |
Spring Rates: | 100 N/mm | 10 Kg/mm | 560 Lbs/in | 200 N/mm | 20 Kg/mm | 1120 Lbs/in |
Spring Part Numbers: | 48120-17 | 48140-37 |
Notes
- Note 2: Cancellation kit available for vehicles with OE eletronic dampers. Eletronic damper functionality is lost.
- Note 4: System does not function with factory lift system.
- Note 6: System offers independent rebound and compression adjustment via separate compression and rebound knobs.
- Note 12: ÖhlinsUSA recommends 991 GT3 RS spherical rear upper mounts (though the GT3 mount can be reused).
Vehicle Fitment
- 2014 Porsche 911 GT3 (991)
- 2015 Porsche 911 GT3 (991)
- 2016 Porsche 911 GT3 (991)
- 2017 Porsche 911 GT3 (991)
- 2018 Porsche 911 GT3 (991)
- 2019 Porsche 911 GT3 (991)
