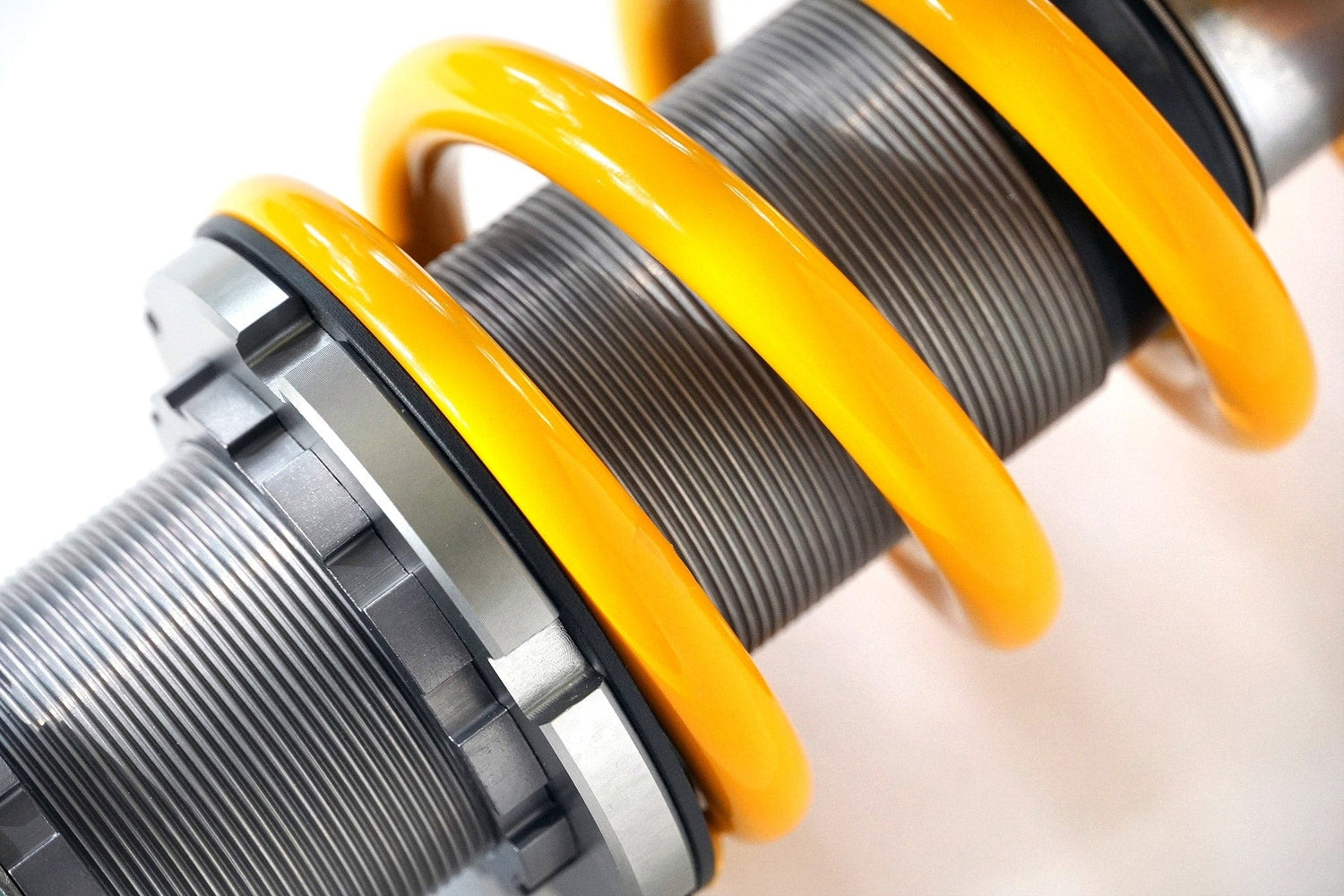

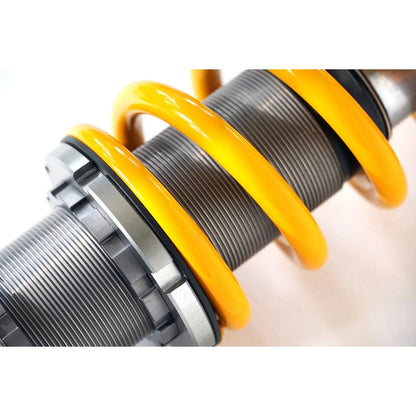

Ohlins Road & Track Coilovers – FR-S / BRZ / 86 ZN6/ZC6 (SUS MP21S1)

Overview

Balancing track-level performance with real-world comfort is one of the biggest challenges when upgrading suspension on the Subaru BRZ, Scion FR-S, or Toyota 86. Many coilover systems force drivers to choose between sharp handling on track or acceptable ride quality on the street.

Ohlins Road & Track Coilovers are engineered to solve this compromise. Using Ohlins’ proprietary Dual Flow Valve (DFV) technology, this system delivers precise control, exceptional grip, and consistent damping on the racetrack, while remaining compliant and comfortable for daily driving. With a simple adjustment, the suspension can be tuned from road-focused comfort to track-ready stiffness.

Key Features

• Ohlins DFV (Dual Flow Valve) technology for road and track versatility

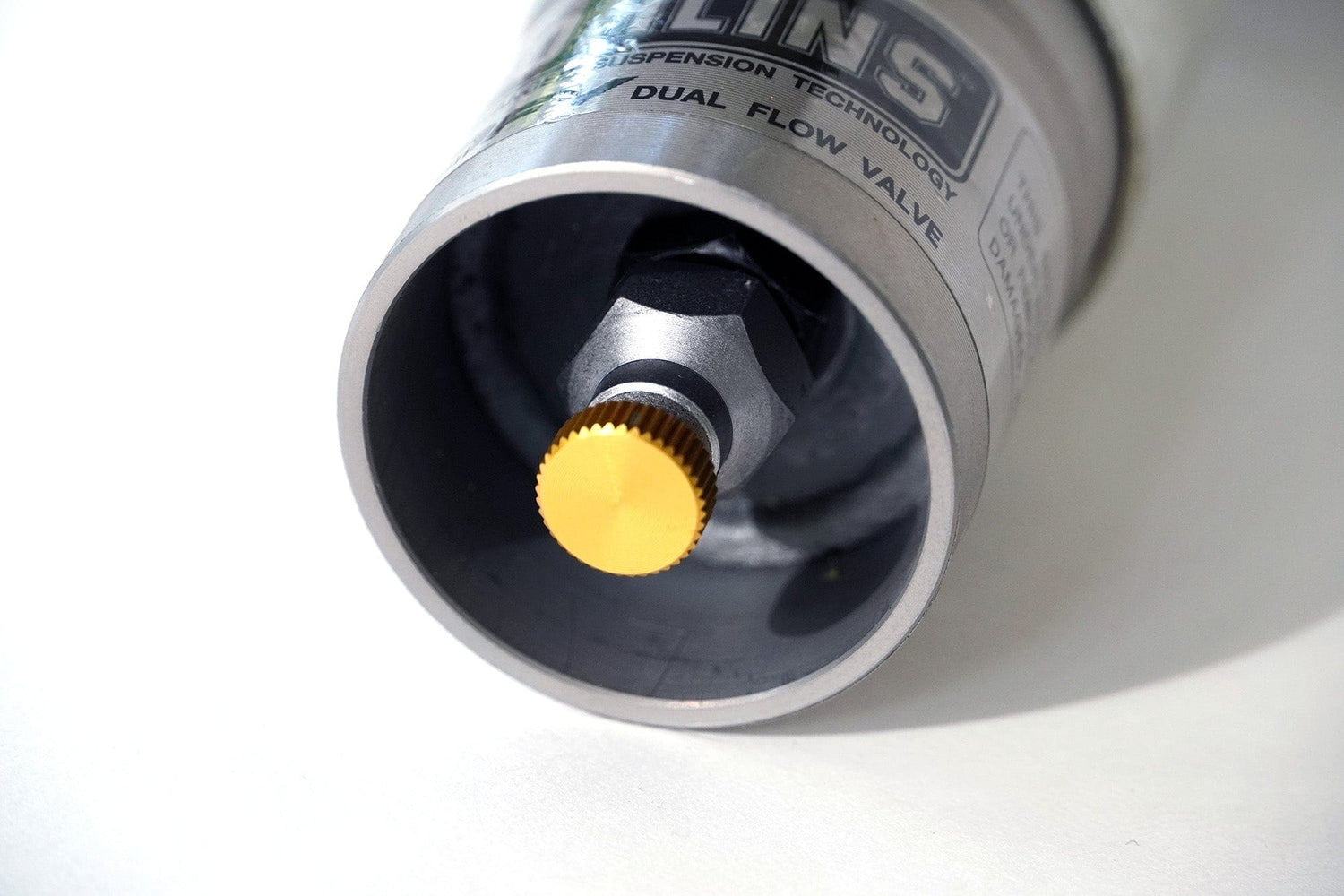

• Single adjuster controls both compression and rebound damping
• Ride height adjustable for optimized stance and handling balance
• Matched compression and rebound hydrodynamics
• High-tolerance construction for consistent performance under load
• Fully rebuildable for long-term serviceability
• Corrosion salt spray tested to ISO 9227 standards
• Includes springs, hardware, and installation instructions
• 2-year limited manufacturer warranty

Construction & Design

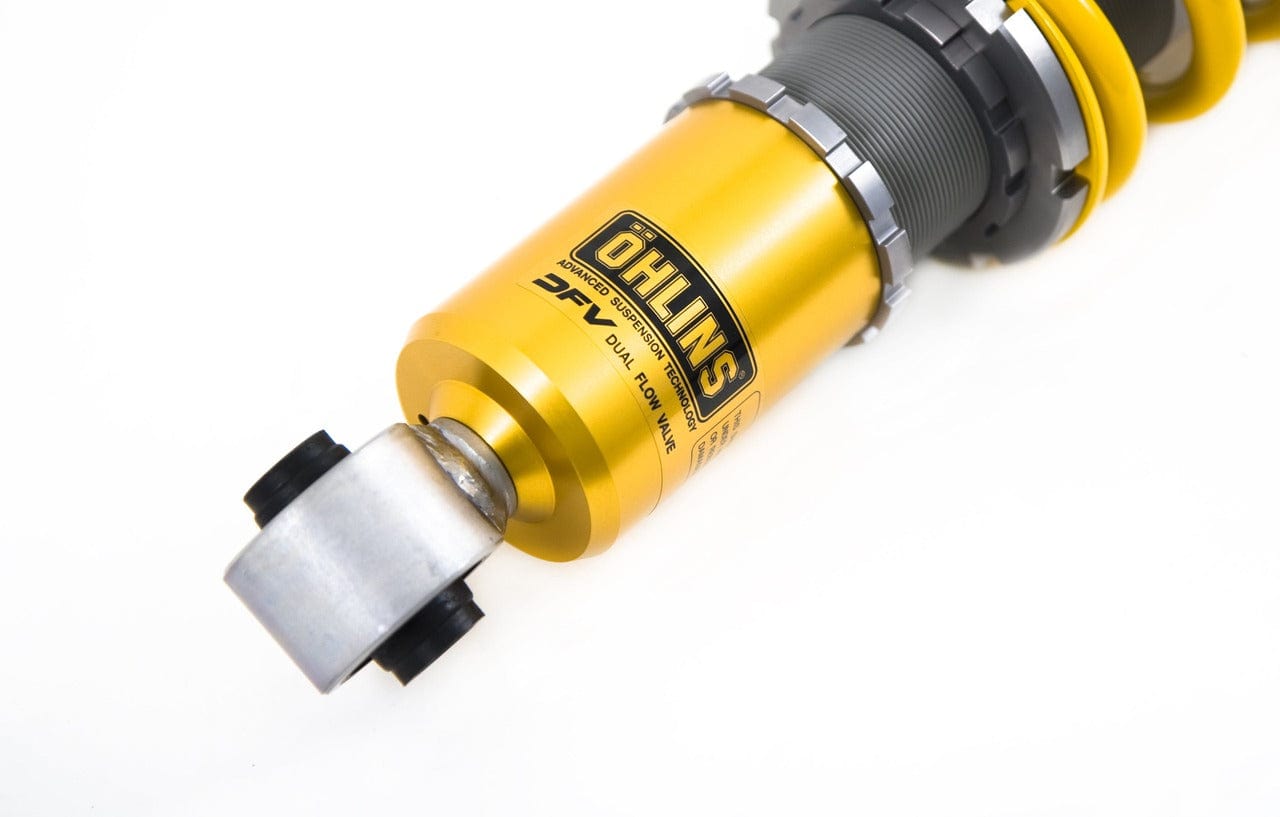

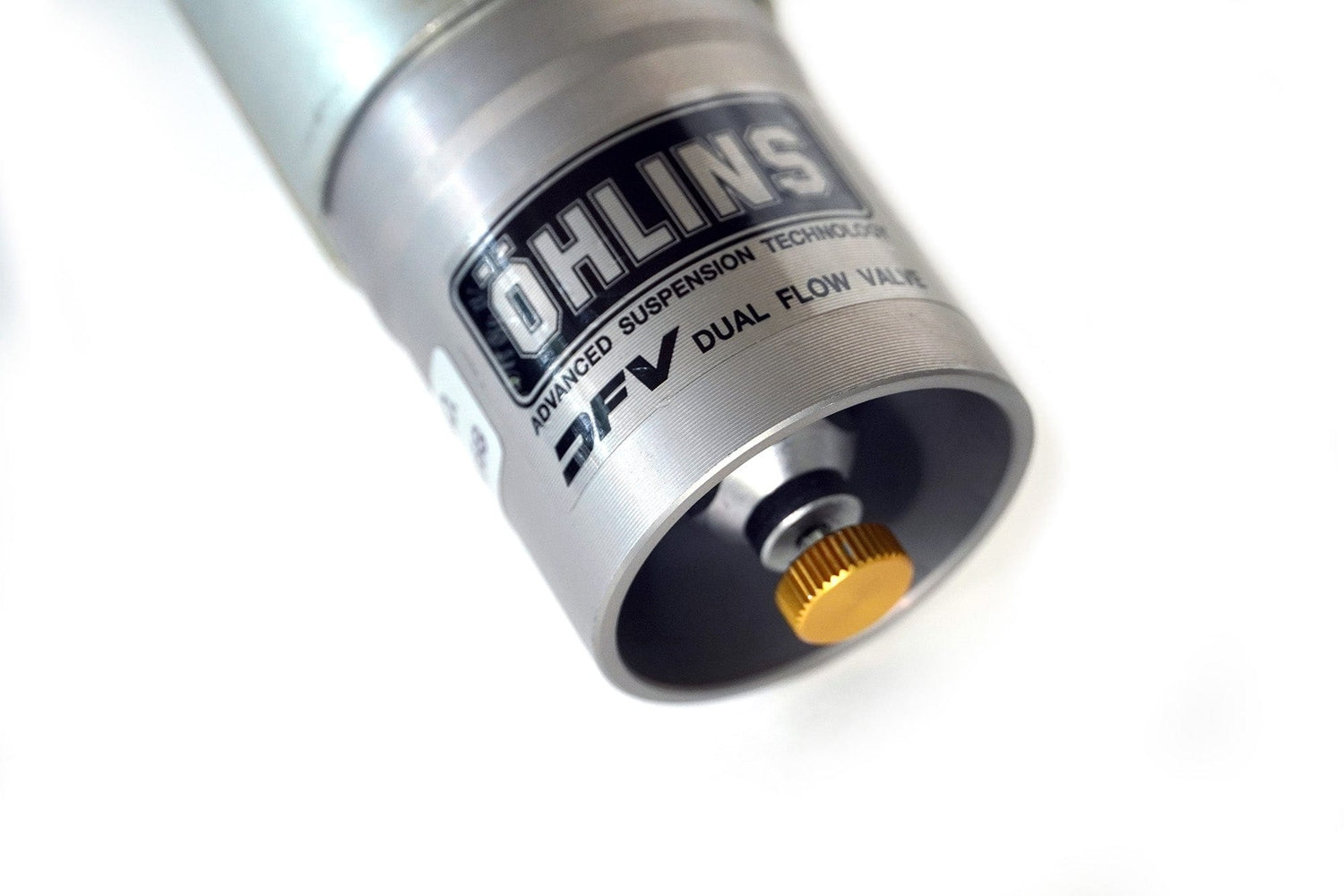

Dual Flow Valve (DFV) Technology

At the core of the Road & Track system is Ohlins’ DFV technology, which allows the damper to react differently to low- and high-speed suspension movements. This enables firm, controlled damping during aggressive driving while maintaining compliance over bumps, curbs, and uneven pavement.

Track-Ready Control, Street-Friendly Comfort

The DFV system helps keep the tires in contact with the road surface even when encountering bumps or curbing at speed. This results in improved grip, faster response times, and a car that is easier to balance at the limit. When transitioning back to daily driving, the dampers can be adjusted to road mode for a more relaxed ride without sacrificing responsiveness.

High-Quality Materials

Built to Ohlins’ stringent standards, these coilovers feature corrosion-resistant finishes and robust internal components designed to perform consistently in demanding track environments as well as daily street use.

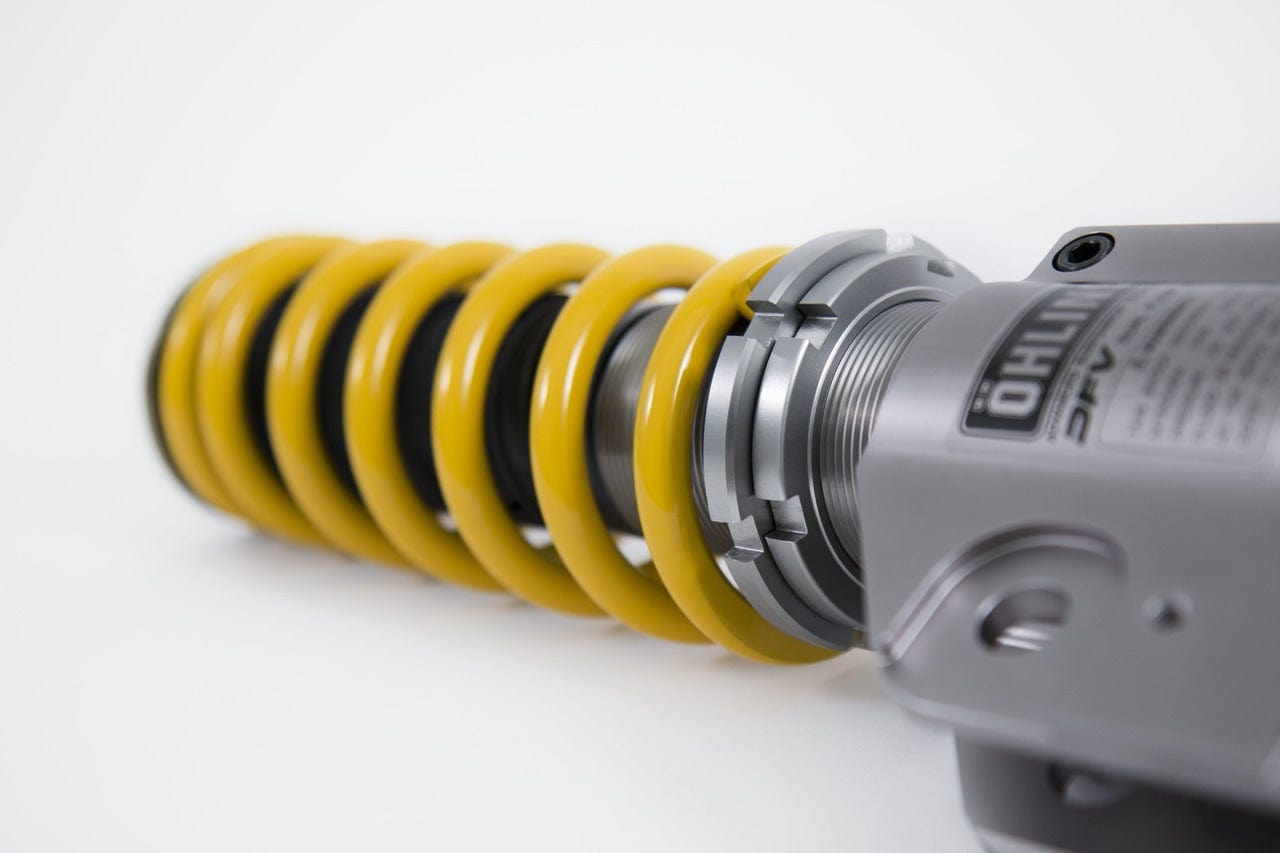

Front Suspension Specifications

• McPherson strut design, inverted (upside down)
• Single adjuster for compression and rebound damping

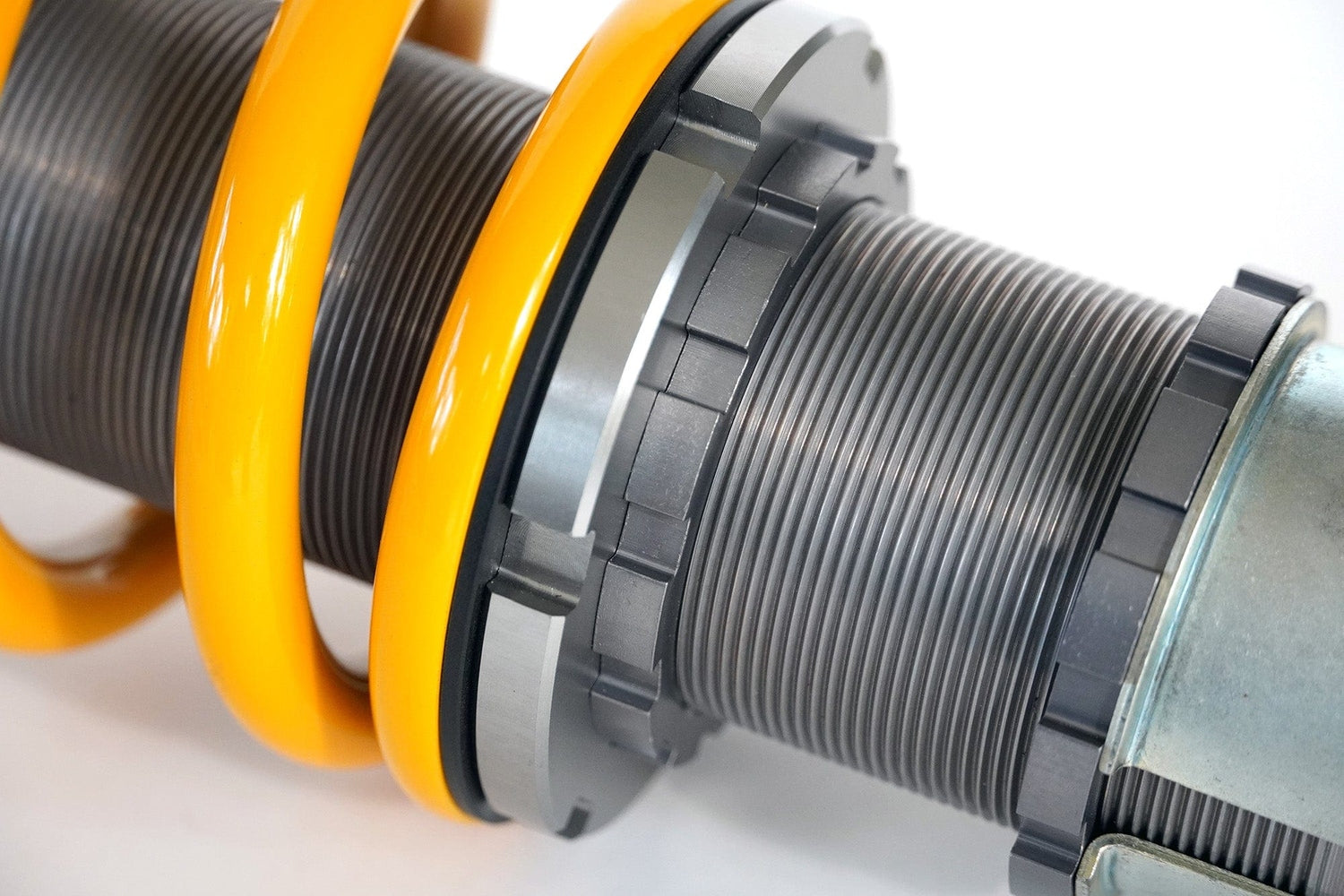

• Spring preload adjuster
• Approximate ride height adjustment: 10–35 mm lower than stock
• Spring rate: 50 N/mm
• Dust covers included
• Designed for use with original top mounts

Rear Suspension Specifications

• Conventional shock absorber design
• Single adjuster for compression and rebound damping
• Spring preload adjuster
• Approximate ride height adjustment: 5–25 mm lower than stock
• Spring rate: 50 N/mm
• Dust covers included
• Designed for use with original top mounts

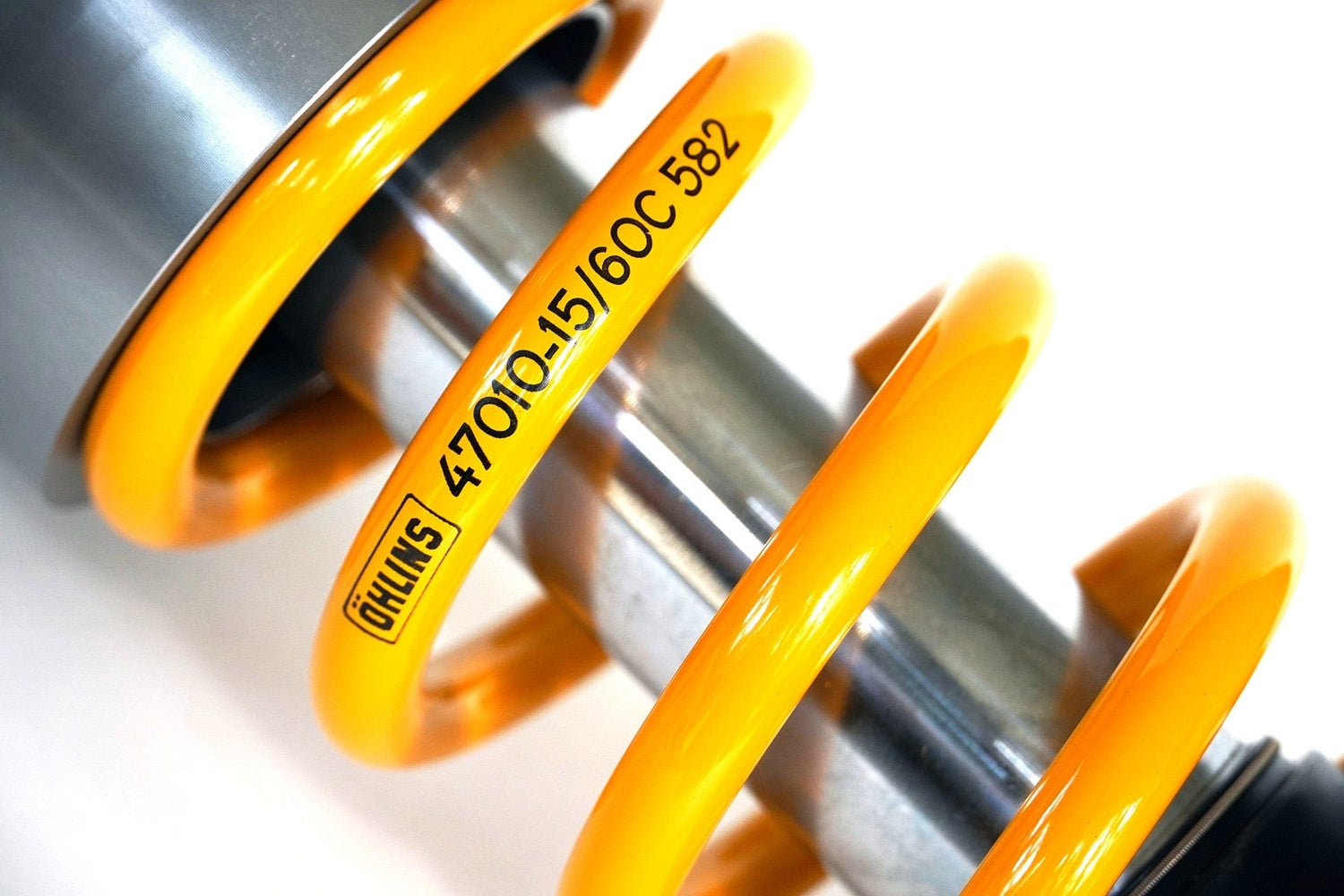

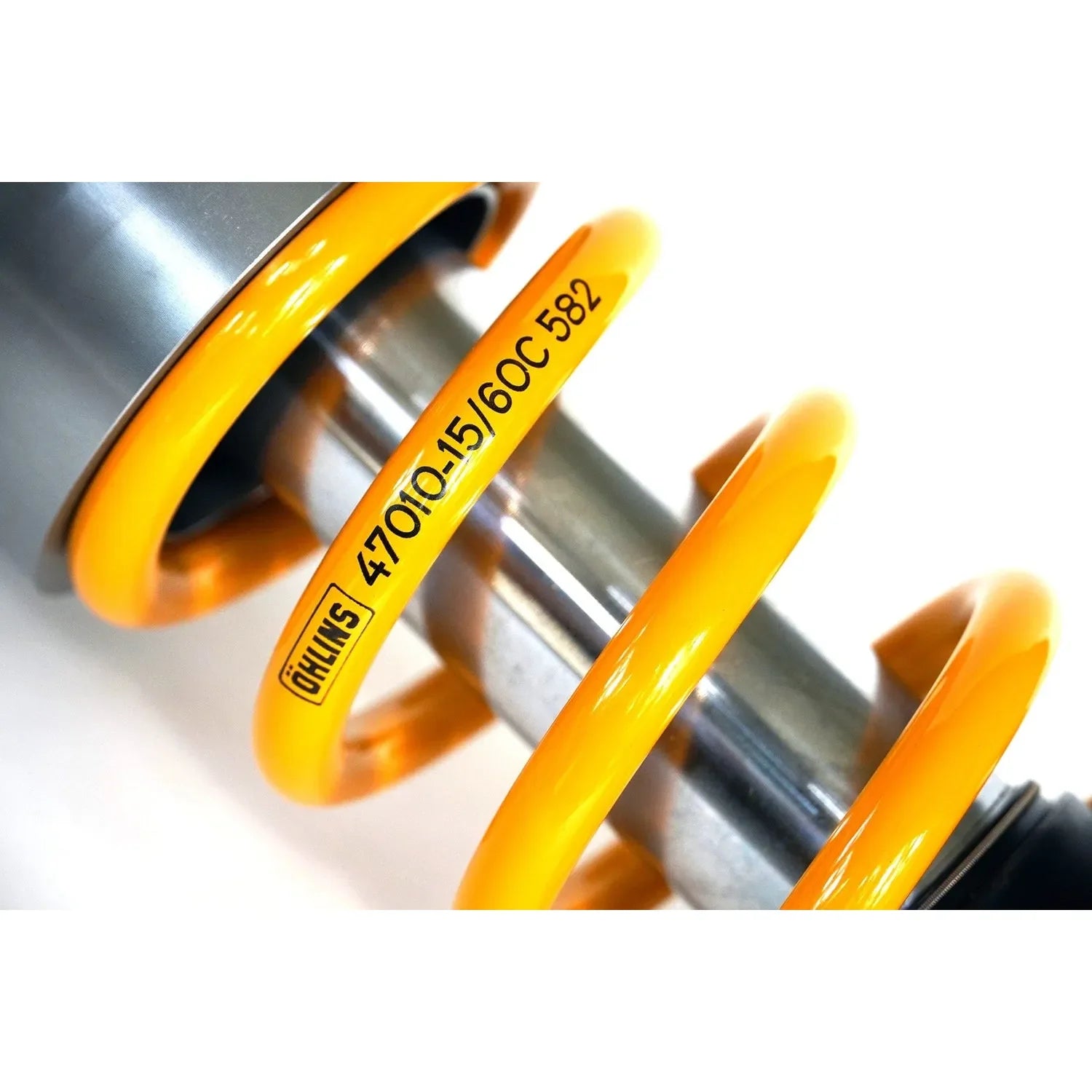

Spring Rates

• Front: 50 N/mm  |  286 lbs/in  |  5 kg/mm
• Rear: 50 N/mm  |  286 lbs/in  |  5 kg/mm

What’s Included

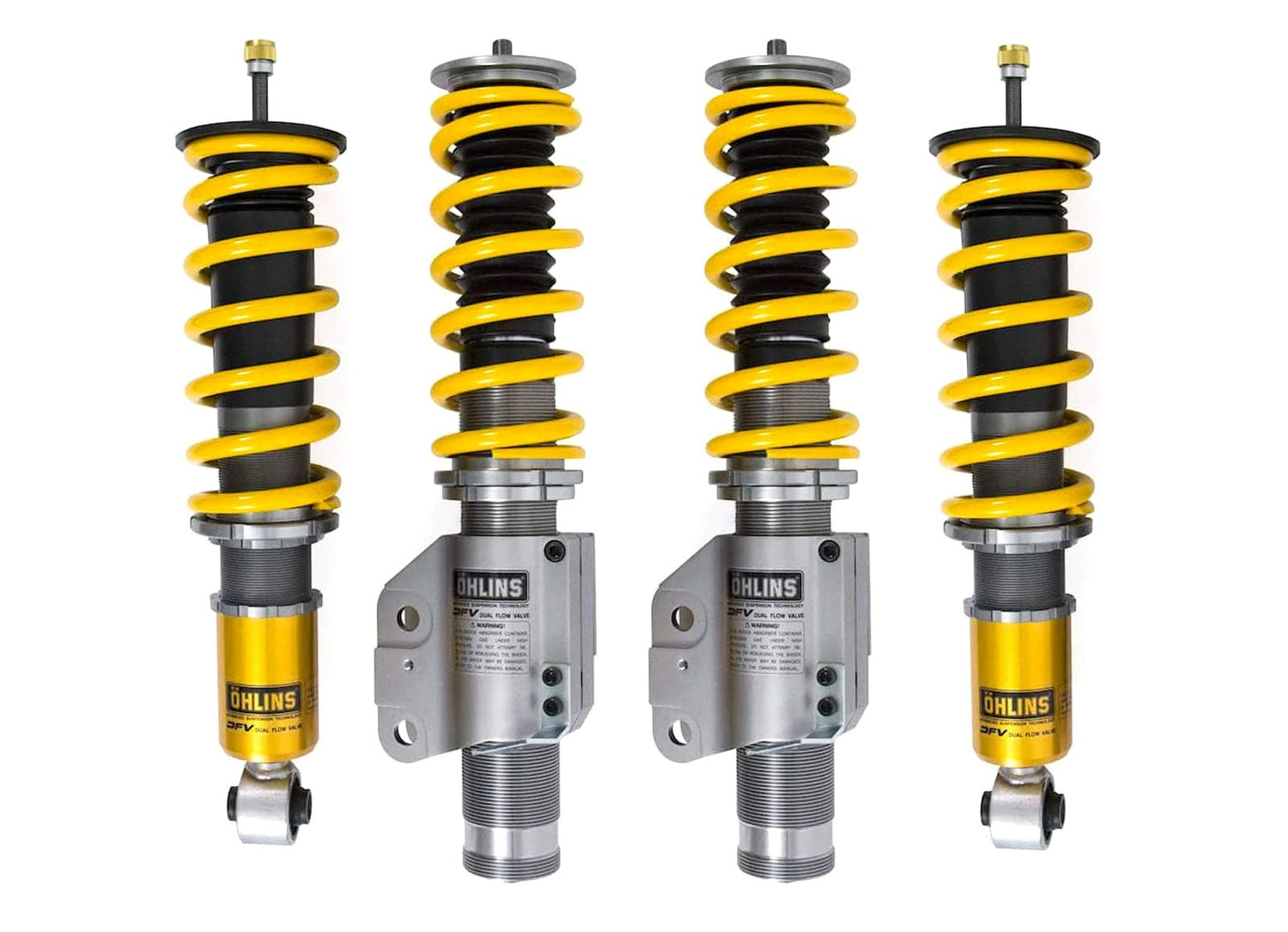

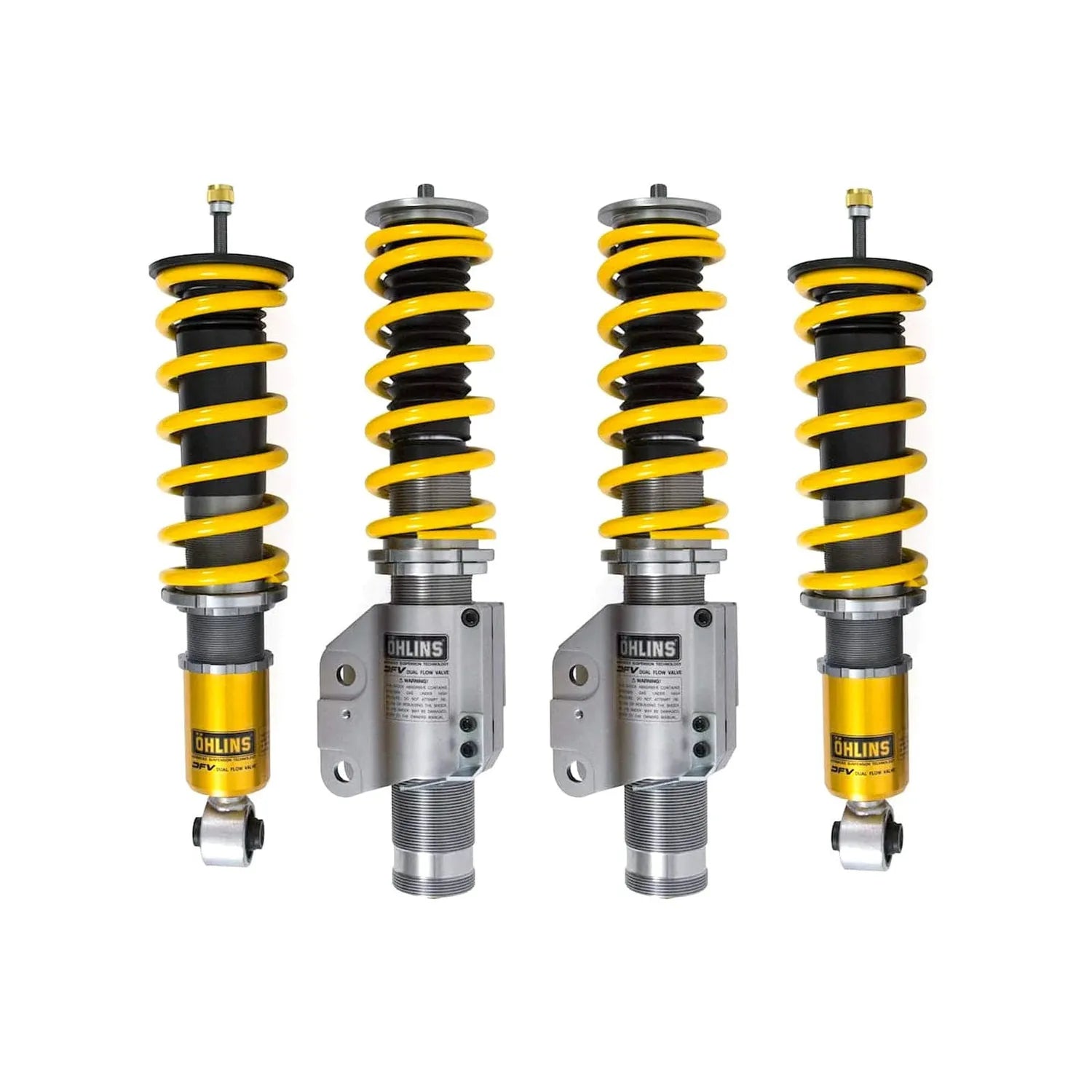

• Complete coilover kit with springs
• C-spanner for spring preload adjustment
• Owner’s manual and mounting instructions
• Ohlins sticker set

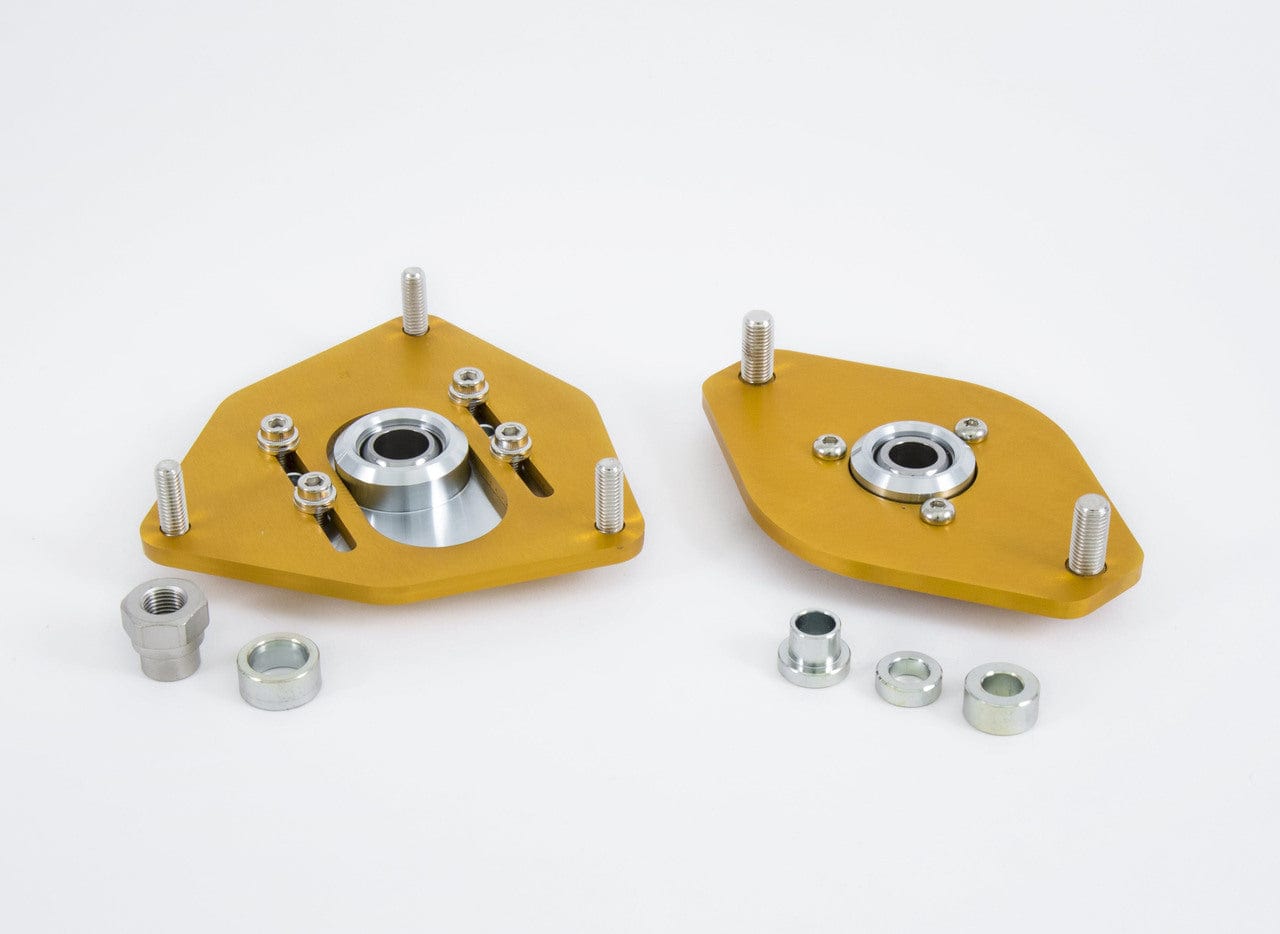

Optional Add-Ons

• Front Left Adjustable Camber Top Mount – Part #25633-43
• Front Right Adjustable Camber Top Mount – Part #25633-44
• Rear Top Mount – Part #25633-45

Fitment

• 2013 Subaru BRZ (ZC6)
• 2014 Subaru BRZ (ZC6)
• 2015 Subaru BRZ (ZC6)
• 2016 Subaru BRZ (ZC6)
• 2017 Subaru BRZ (ZC6)
• 2018 Subaru BRZ (ZC6)
• 2019 Subaru BRZ (ZC6)
• 2020 Subaru BRZ (ZC6)
• 2021 Subaru BRZ (ZC6)
• 2013 Scion FR-S (ZN6)
• 2014 Scion FR-S (ZN6)
• 2015 Scion FR-S (ZN6)
• 2016 Toyota 86 (ZN6)
• 2017 Toyota 86 (ZN6)
• 2018 Toyota 86 (ZN6)
• 2019 Toyota 86 (ZN6)
• 2020 Toyota 86 (ZN6)
• 2021 Toyota 86 (ZN6)

Additional Fitment Information

• Note: Top mounts are not included and must be purchased separately if required.
• This set is indeed new stock of the discontinued model engineered specifically for the first generation cars. These are the preferred option compared to adapting the updated model made for the second generation of cars that have different overall weight and distribution.
