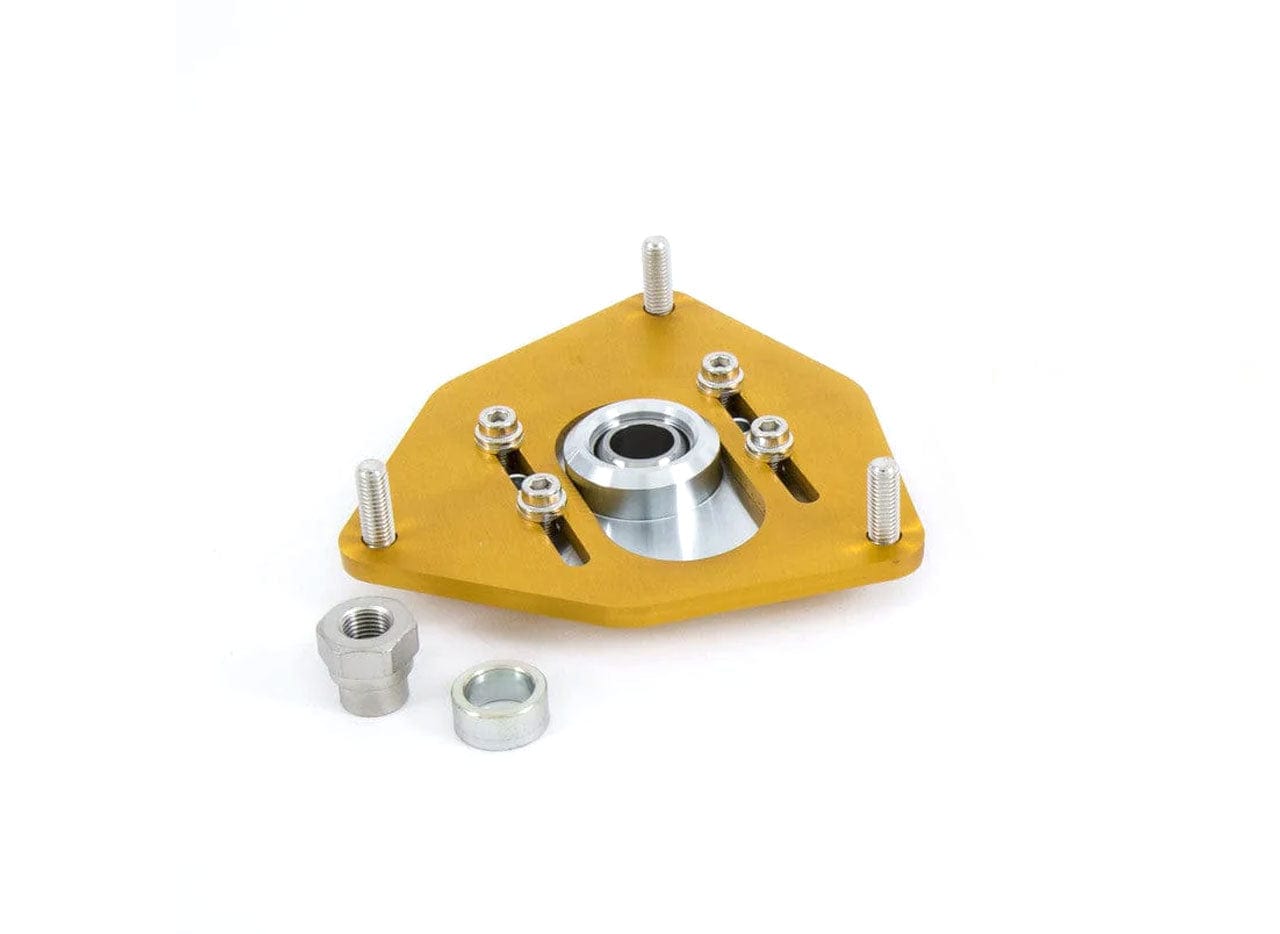

• Ohlins Adjustable Camber-Caster Top Mount (Front Left) - 1999-2005 BMW 3 Series (E46)
1 1

Ohlins Adjustable Camber-Caster Top Mount (Front Left) - 1999-2005 BMW 3 Series (E46)

Ohlins Adjustable Camber-Caster Top Mount (Front Left) - 1999-2005 BMW 3 Series (E46)

U00215-01

Out of stock

$289.80 USD
$289.80 USD $289.80 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Ohlins Adjustable Camber-Caster Top Mount for the 1999-2005 BMW 3 Series (E46) is a high-performance upgrade designed to provide precise camber and caster adjustments. Constructed with CNC-machined components, including a main plate and bearing holder, this top mount features oversized spherical bearings built to endure street and track conditions. All parts are plated for enhanced corrosion resistance, ensuring durability over time. The design incorporates engraved markings for vehicle orientation and hash marks for easy adjustment, while the sealed radial bearing isolates the spherical bearing for smooth operation. This assembly offers a reliable and adjustable solution for enthusiasts seeking improved handling and alignment precision.

Specifically engineered for the front left position on E46 models, these top mounts are compatible with 1999-2005 BMW 3 Series vehicles. They are suitable for street, track, or performance driving, providing a direct upgrade to factory camber and caster settings. Installation involves replacing the stock mounts with these adjustable units, allowing for quick and accurate alignment changes. The kit includes the top mount assembly with all necessary components for installation. Ideal for track days, autocross, or daily driving, these camber-caster plates enhance steering response and cornering capabilities while maintaining long-term reliability.

Overview

Easily adjust camber trackside with Ohlins camber/caster plates for the 1999-2005 BMW 3 Series (E46). Oversized spherical bearings are designed to withstand the rigors of street and track abuse. All components are plated for maximum corrosion resistance and long life. Featuring CNC construction for the bearing holder and main plate, including engraved markings for vehicle orientation and hash marks for adjustment. The upper perches add a sealed radial bearing that isolates the spherical bearing in the camber plate from radial turning loads of the strut shaft during steering inputs.

Features

  • Installs with basic hand tools, no chassis modifications required.
  • Caster & Camber are independently adjustable.
  • Camber is easily adjustable at the track from the engine compartment with simple (metric) hand tools. No need to reach inside the wheel well with a wrench!
  • Designed for maximum suspension bump travel / minimum stack-up height.
  • Alloy steel bearing holder
  • Aluminum alloy main plate for lighter weight, engraved and fully anodized
  • All components plated or anodized for maximum corrosion resistance and long life.

Notes

  • Note 1: Sold Individually.
  • Note 2: Camber adjustability.
  • Note 3: Caster adjustability.
  • Note 4: Spherical bearing, solid mount.
  • Note 6: Must use in conjunction with 65mm I.D. flat ground spring available separately.
  • Note 8: Develop as a replacement mount for Öhlins Dedicated systems. May require additional components to fit R&T systems.
Vehicle Fitment
  • 1999 BMW 3 Series (E46)
  • 2000 BMW 3 Series (E46)
  • 2001 BMW 3 Series (E46)
  • 2002 BMW 3 Series (E46)
  • 2003 BMW 3 Series (E46)
  • 2004 BMW 3 Series (E46)
  • 2005 BMW 3 Series (E46)
  • 2006 BMW 3 Series (E46)
