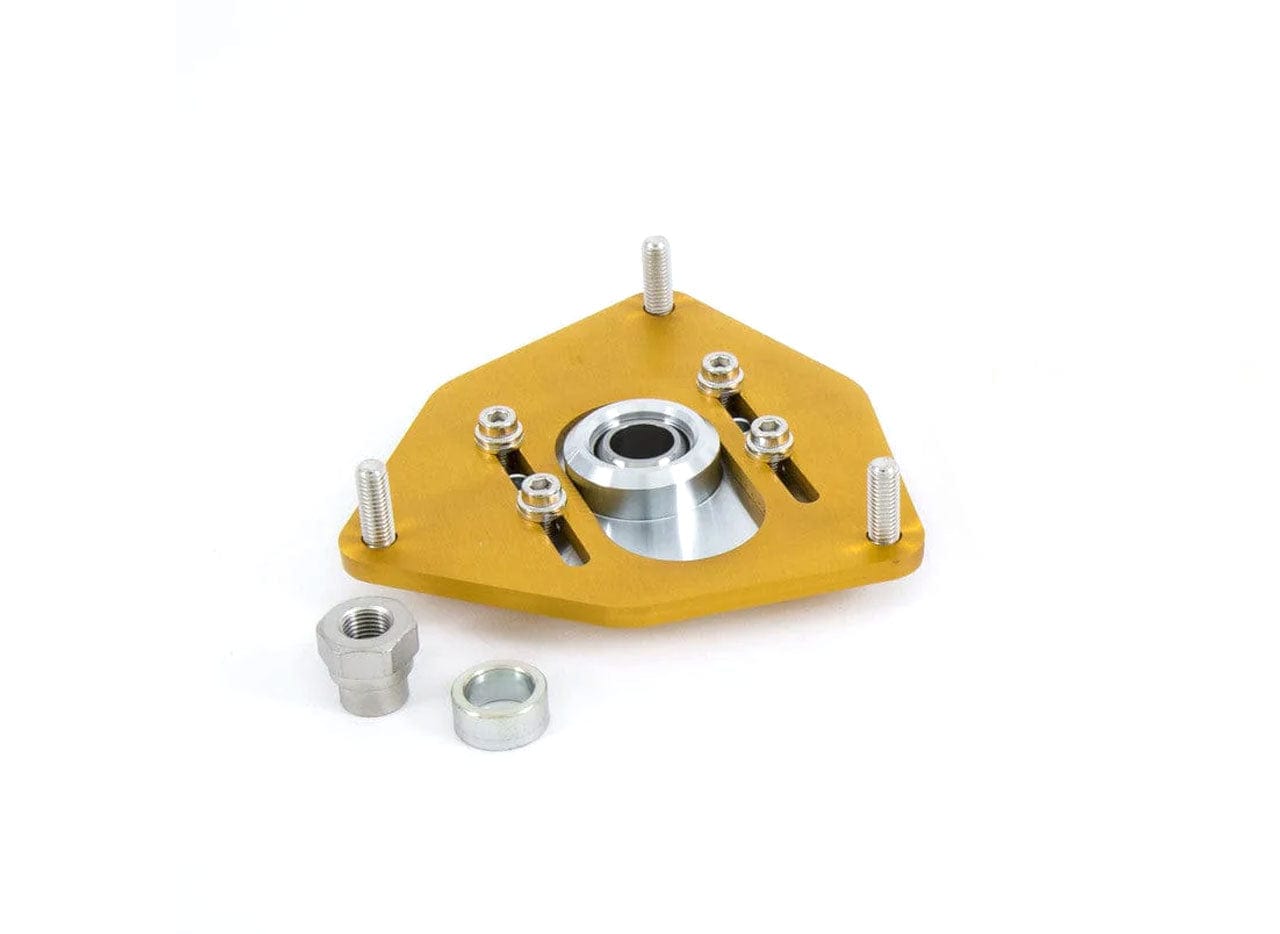

Ohlins Adjustable Camber-Caster Top Mount (Front Right) - 2008-2013 BMW M3 (E90/E92)

Ohlins Adjustable Camber-Caster Top Mount (Front Right) - 2008-2013 BMW M3 (E90/E92)

U00219-01

Out of stock

$324.01 USD
$324.01 USD $324.01 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Ohlins Adjustable Camber-Caster Top Mount for the 2008-2013 BMW M3 (E90/E92) is a high-performance upgrade designed to provide precise camber and caster adjustments. Constructed with CNC-machined components, this top mount features oversized spherical bearings built to endure street and track abuse, ensuring durability and consistent performance. All parts are plated for maximum corrosion resistance, extending the product's lifespan. The inclusion of engraved markings and hash marks facilitates easy, accurate adjustments, while the sealed radial bearing isolates the spherical bearing for enhanced stability and reduced wear. This assembly offers a reliable solution for enthusiasts seeking to optimize handling and cornering capabilities.

Designed specifically for the 2008-2013 BMW M3 (E90/E92), this front right top mount is a direct replacement that allows for quick, tool-free adjustments on the track or street. It is suitable for applications requiring improved camber and caster tuning, whether for competitive racing or spirited driving. The kit includes the necessary components for installation, with a focus on durability and ease of use. Compatible with vehicles equipped with the specified chassis and suspension setup, this top mount enhances steering response and handling precision, making it an ideal upgrade for performance-oriented drivers seeking to fine-tune their vehicle’s alignment.

Overview

Easily adjust camber trackside with Ohlins camber/caster plates for the 2008-2013 BMW M3 (E90/E92). Oversized spherical bearings are designed to withstand the rigors of street and track abuse. All components are plated for maximum corrosion resistance and long life. Featuring CNC construction for the bearing holder and main plate, including engraved markings for vehicle orientation and hash marks for adjustment. The upper perches add a sealed radial bearing that isolates the spherical bearing in the camber plate from radial turning loads of the strut shaft during steering inputs.

Features

  • Installs with basic hand tools, no chassis modifications required.
  • Caster & Camber are independently adjustable.
  • Camber is easily adjustable at the track from the engine compartment with simple (metric) hand tools. No need to reach inside the wheel well with a wrench!
  • Designed for maximum suspension bump travel / minimum stack-up height.
  • Alloy steel bearing holder
  • Aluminum alloy main plate for lighter weight, engraved and fully anodized
  • All components plated or anodized for maximum corrosion resistance and long life.

Notes

  • Note 1: Sold Individually.
  • Note 2: Camber adjustability.
  • Note 3: Caster adjustability.
  • Note 4: Spherical bearing, solid mount.
  • Note 6: Must use in conjunction with 65mm I.D. flat ground spring available separately.
  • Note 8: Develop as a replacement mount for Öhlins Dedicated systems. May require additional components to fit R&T systems.
Vehicle Fitment
  • 2008 BMW M3 (E90/E92)
  • 2009 BMW M3 (E90/E92)
  • 2010 BMW M3 (E90/E92)
  • 2011 BMW M3 (E90/E92)
  • 2012 BMW M3 (E90/E92)
  • 2013 BMW M3 (E90/E92)
