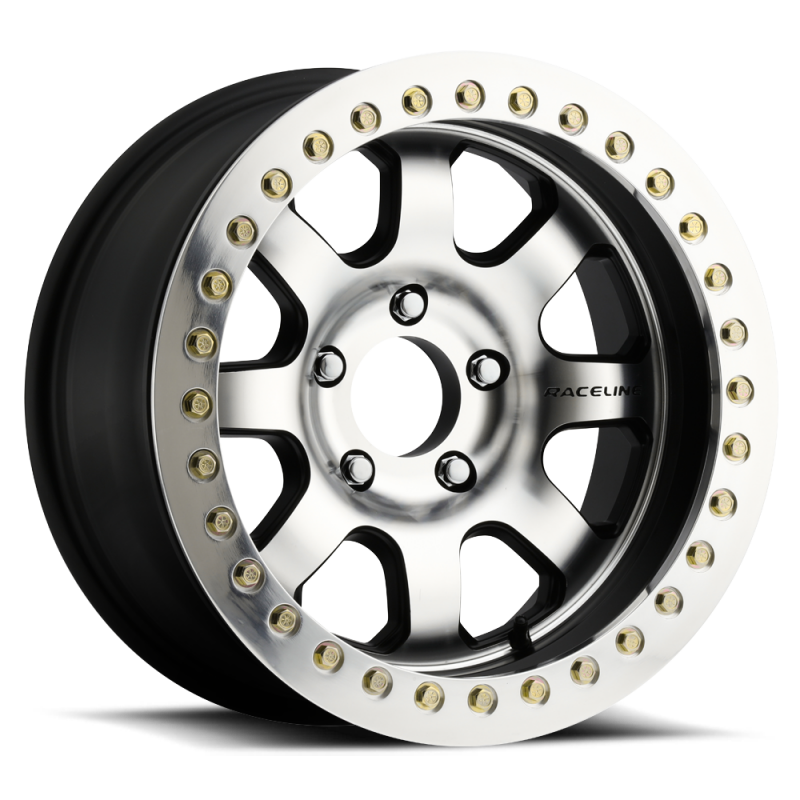

Raceline RT260 Avenger Black & Machined Beadlock | 17x8.5" -32mm | 5x127mm Wheel
Raceline RT260 Avenger Black & Machined Beadlock | 17x8.5" -32mm | 5x127mm Wheel
SKU:RT260-78550-32
In stock
Couldn't load pickup availability
The Raceline RT260 Avenger Black & Machined Beadlock wheel is a high-performance off-road wheel designed for rugged terrain. Featuring a classic 8-spoke design with a cast Raceline logo, it is constructed from heavy-duty A356 aluminum with a forged 6061 beadlock ring for maximum strength and durability. The wheel incorporates US-made grade 8 zinc beadlock hardware with hardened steel PEM-nuts and captive washers, allowing for easy replacement and preventing stripped components. This 17-inch beadlock wheel is engineered to be one of the strongest options available, suitable for demanding off-road applications. It is ideal for enthusiasts seeking a reliable, durable beadlock wheel that enhances off-road performance and tire security.
The Raceline Avenger Beadlock is designed to fit 17x8.5-inch wheels with a 5x127mm bolt pattern and a -32mm offset. It is intended for off-road use only and is not DOT approved for highway driving. Not recommended for vehicles over 6500 lbs, such as 3/4 ton trucks and larger. The wheel is compatible with thicker beaded tires, with optional beadlock ring spacers available for proper seating. Custom bolt patterns and hub bore drilling are available to meet specific vehicle requirements. This wheel is suitable for off-road racing, trail riding, and other demanding off-road activities, providing a secure beadlock solution for aggressive off-road tires.
Share
Overview
Overview
*BEADLOCK WHEELS ARE FOR OFF-ROAD USE ONLY & ARE NOT DOT APPROVED FOR HIGHWAY USE
**BEADLOCK WHEELS ARE NOT SUGGESTED FOR ANY 3/4 TON AND LARGER VEHICLES WEIGHING OVER 6500 LBS.
Following the success of the Monster, is the Avenger Beadlock by Raceline. Another industry leading wheel and one of the first 20” beadlocks ever releases. Raceline, the leader in wheel performance, design and durability!
- Classic 8 spoke design with a cast in Raceline logo that is easily recognizable
- Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring.
- Engineered to be one of the strongest wheels available.
- US made grade 8 zinc beadlock hardware with hardened steel PEM-nuts that along with captive washers can be replaced as needed...no more stripped wheels that are deemed worthless. Another industry best that are standard issue with the Avenger.
- 17" Aluminum Beadlock Bolts = 1.50" length
- For thicker beaded tires, Raceline Beadlock ring spacers are available to ensure proper ring seating.
- Custom bolt patterns and hub bores can be drilled to your specifications, along with special desert racing lug seats which are noted by “DBP” on the SKU’s, for more information or if you have questions, please contact info@racelinewheels.com

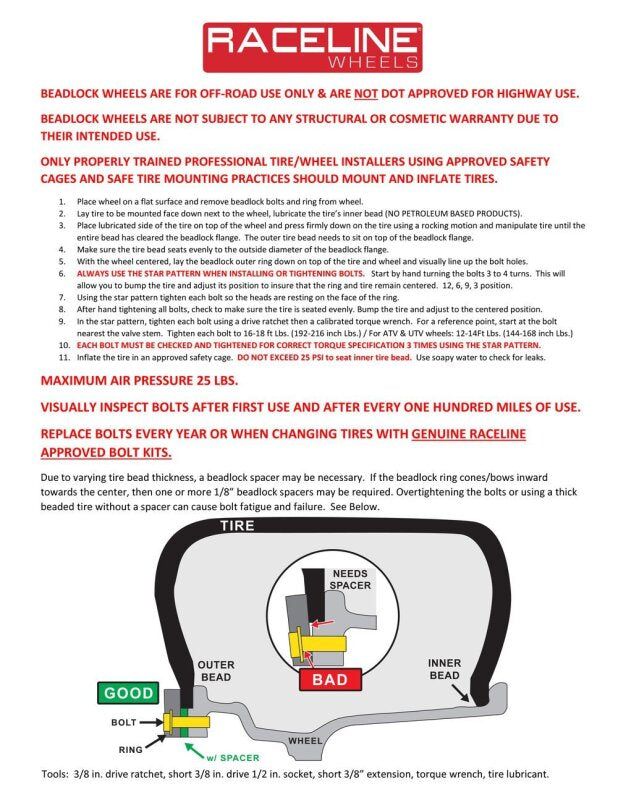

* Click to view Raceline Beadlock mounting instructions
