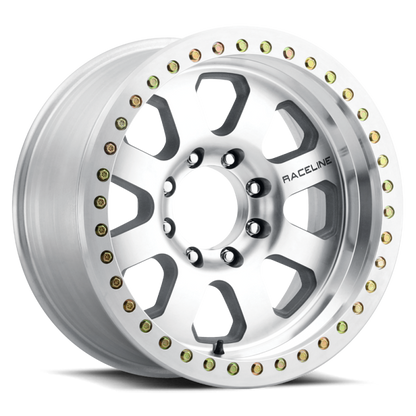

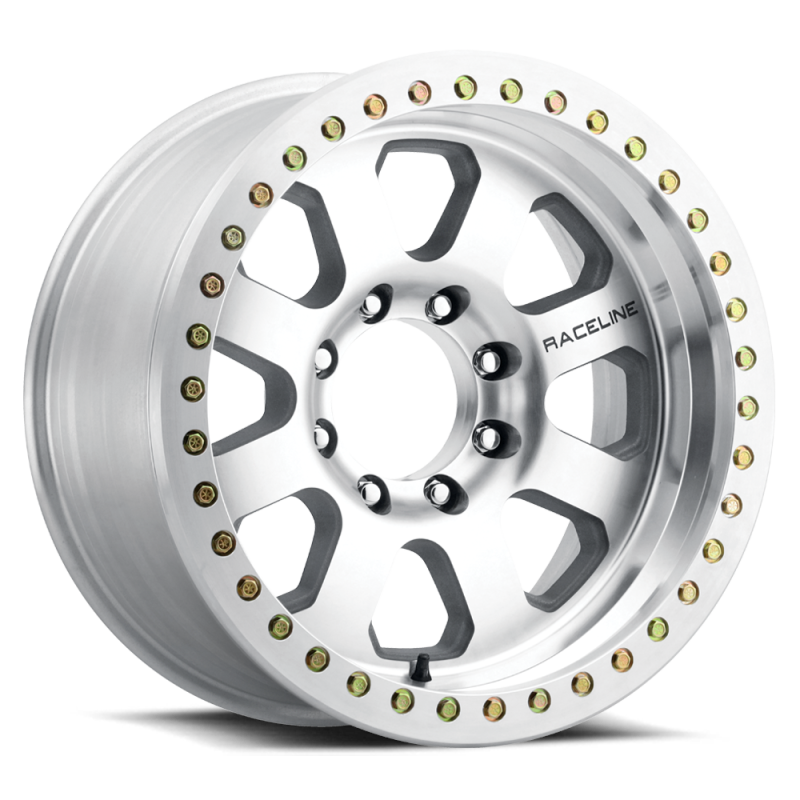

Raceline RT260 Avenger Machined Beadlock | 20x10" -12mm | 6x139.7mm Wheel
Raceline RT260 Avenger Machined Beadlock | 20x10" -12mm | 6x139.7mm Wheel
SKU:RT260M-201060-12
In stock
Couldn't load pickup availability
The Raceline RT260 Avenger Machined Beadlock is a high-performance off-road wheel designed for extreme durability and strength. Featuring a classic 8-spoke design with a cast Raceline logo, this 20x10-inch wheel is constructed from heavy-duty A356 aluminum and includes a forged 6061 beadlock ring. Engineered to be among the strongest wheels available, it utilizes US-made grade 8 zinc beadlock hardware with hardened steel PEM-nuts and captive washers, allowing for easy replacement and maintenance. This wheel is ideal for off-road applications where beadlock functionality is essential, providing secure tire seating and resistance to harsh terrain conditions.
Designed for vehicles with 6x139.7mm bolt patterns and a 12mm offset, this wheel is suited for off-road vehicles such as trucks and SUVs used in desert racing, rock crawling, or trail driving. It is not DOT approved for highway use and is recommended for vehicles under 6500 lbs, excluding 3/4 ton and larger trucks. The wheel is a direct bolt-on upgrade for compatible off-road rigs, with optional beadlock ring spacers available for thicker tires. Custom bolt patterns and hub bore drilling are available to meet specific application requirements, making it a versatile choice for serious off-road enthusiasts.
Share
Overview
Overview
*BEADLOCK WHEELS ARE FOR OFF-ROAD USE ONLY & ARE NOT DOT APPROVED FOR HIGHWAY USE
**BEADLOCK WHEELS ARE NOT SUGGESTED FOR ANY 3/4 TON AND LARGER VEHICLES WEIGHING OVER 6500 LBS.
Following the success of the Monster, is the Avenger Beadlock by Raceline. Another industry leading wheel and one of the first 20” beadlocks ever releases. Raceline, the leader in wheel performance, design and durability!
- Classic 8 spoke design with a cast in Raceline logo that is easily recognizable
- Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring.
- Engineered to be one of the strongest wheels available.
- US made grade 8 zinc beadlock hardware with hardened steel PEM-nuts that along with captive washers can be replaced as needed...no more stripped wheels that are deemed worthless. Another industry best that are standard issue with the Avenger.
- 17" Aluminum Beadlock Bolts = 1.50" length
- 20" Aluminum Beadlock Bolts = 1.75" length
- For thicker beaded tires, Raceline Beadlock ring spacers are available to ensure proper ring seating.
- Custom bolt patterns and hub bores can be drilled to your specifications, along with special desert racing lug seats which are noted by “DBP” on the SKU’s, for more information or if you have questions, please contact info@racelinewheels.com
* Click to view Raceline Beadlock mounting instructions
